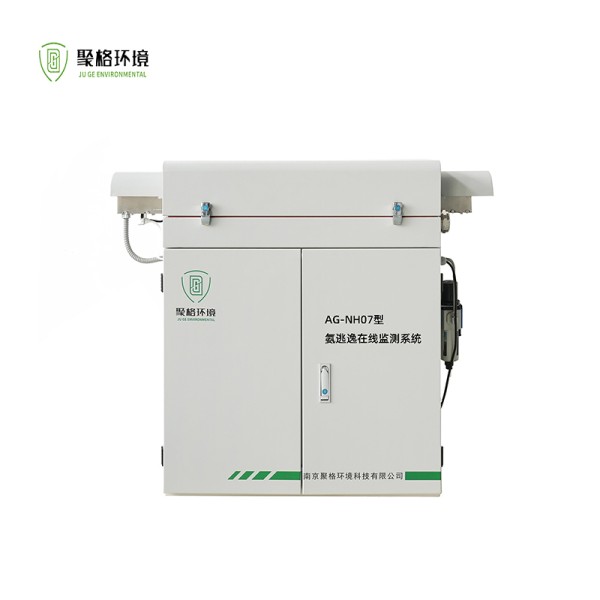

CEMS Ammonia Slip Online Monitoring System with Tunable Diode Laser Absorption Spectroscopy for 0-100mg/m3 OEM and ≤120S Response Time
CEMS Ammonia Slip Online Monitoring System with Tunable Diode Laser Absorption Spectroscopy for 0-100mg/m3 OEM and ≤120S Response Time
Specifications
Packaging Details :
Neutral carton
Range :
0-20ppm OEM
Place of Origin :
Nanjing, China
MOQ :
1 Unit
24h Span Drift :
≤ ±1.5% F.S.
24h Zero Drift :
≤ ±1% F.S.
Indication Error :
≤ 2%
Brand Name :
JUGE
Model Number :
AG-NH07
Drift :
≤±2.5%F.S
Certification :
IOS9001, CE
Supply Ability :
100 Unit/Week
Payment Terms :
T/T,Online order
Display Error :
≤±5%
Product name :
CEMS for NH3
Price :
USD5000-10000
Delivery Time :
10-15 working days
Description
CEMS Ammonia Slip Online Monitoring System
Overview

This system is primarily used for denitrification process control in various industrial sectors, including coal-fired power plants, aluminum plants, steel mills, smelters, waste-to-energy plants, cement plants, chemical plants, glass factories, and more.

The system utilizes Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, which analyzes the characteristic absorption of specific laser wavelengths by gas molecules to determine gas concentration through changes in laser absorption intensity.

Key Features
  • Self-diagnosis and alarm function
  • Laser absorption spectroscopy with minimal background interference and fast response
  • High detection sensitivity and low resolution
  • Built-in long optical path design to solve interference issues
  • Low system maintenance cost and minimal maintenance requirements
  • High structural stability, adaptable to various environments
Technical Parameters
Parameter Category Specification
Working Condition Power supply: 220VAC, <3kW
Sweeping gas: (0.4~0.6) MPA compressed air
Ambient temperature: -20ºC~55ºC
Performance Index Light path length: 760mm
Range: 0~100 ppm or mg/m³ (adjustable)
T90 response time: <300 seconds
Reading error: ≤ ±5% (nominal value)
Repeatability: ≤ ±2% F.S
Drift: ≤ ±2.5% F.S
Functional Parameters Digital output: RS485
Analog output: 4-20 mA maximum load of 500Ω
Switch output: Load capacity: AC/DC 24V/1A
Backback signal, low instrument wind pressure, abnormal temperature alarm (customizable)
Sample gas temperature: <600ºC
Other Parameters Sample gas pressure: Atmospheric pressure of ±5 KPA
Sampling traffic: 2-3L/min
Ambient temperature: -10~55ºC
Ambient pressure: 70~120kPa
Outline dimension: 950H*1160L*325W mm
Weight: 120kg
System Composition
No. Component Name Model and Specification Quantity Unit
1 Pre-processing cabinet Pre-treatment and control devices 1 Set
1.1 Analysis Cabinet 950H*1160L*325W mm 1 Set
1.2 Electromagnetic valve DC24V, normally closed 2 Set
1.3 Injection pump 8L/min 1 Set
1.4 High-temperature precision filter 0.2um 1 Set
1.5 Control circuit Including automatic sampling, back-blowing, and temperature control 1 Set
1.6 High temperature cut-off valve BTB-DN10, with a pneumatic valve 1 Set
2 Analytic system NH3 analyzer 1 Set
3 Heated-type sampling probe AG-TT07 1 Set
4 Sampling heat tracing pipeline 60W/m 3 Set
5 Spare part See the list of spare parts 1 Set
