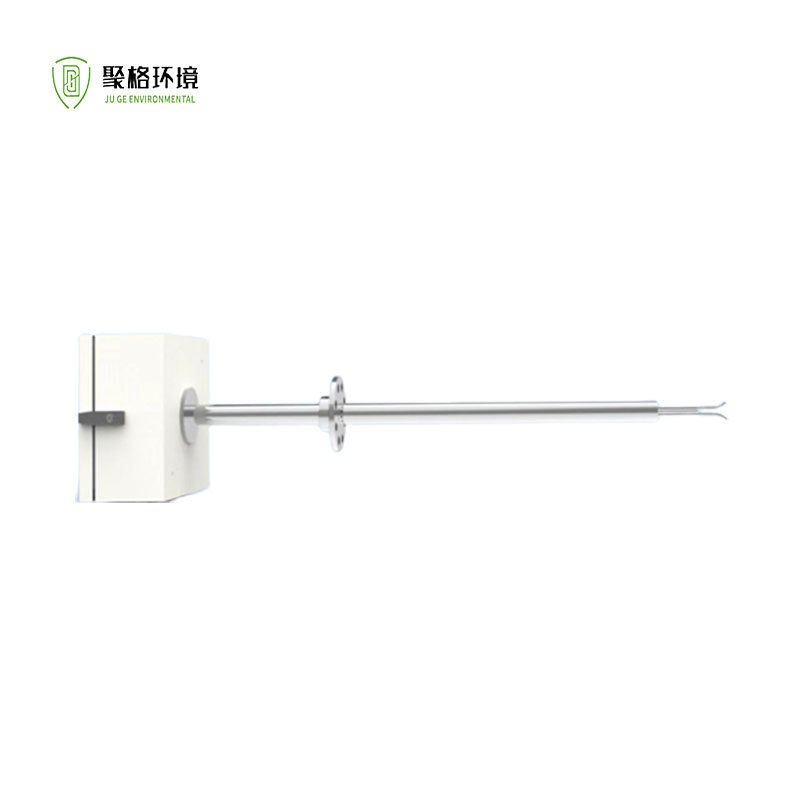

CEMS Integrated Temperature Pressure Flow Analyzer
CEMS Integrated Temperature Pressure Flow Analyzer
Specifications
Temperature range :
Temperature: (0 ~ 400) °C
Brand Name :
JUGE
Certification :
IOS9001, CE
Place of Origin :
Nanjing, China
Payment Terms :
T/T,Online order
Packaging Details :
Neutral carton
Model Number :
AG-TFP07
MOQ :
1 Unit
Price :
USD100-2000
Pressure range :
(-5 ~ +5) kPa
Delivery Time :
10-15 working days
Flow velocity range :
(0 ~ 40) m/s
Supply Ability :
100 Unit/Week
Name :
CEMS Integrated Temperature Pressure Flow Analyzer
Description
CEMS Integrated Temperature Pressure Flow Analyzer
Overview

The integrated temperature-pressure-flow analyzer combines the monitoring of temperature, pressure, differential pressure, and flow velocity. It is primarily used for flow measurement of various clean gases, desulfurization flue gas, and denitrification flue gas in industrial process control and environmental monitoring applications.

Measurement Technology
  • Temperature Measurement: Utilizes platinum resistance temperature sensors for precise thermal monitoring
  • Pressure Measurement: Employs high-precision pressure sensors with dedicated conversion circuits to transform signals into accurate pressure values
  • Flow Velocity Measurement: Implements the pitot tube method with probes positioned at the flow cross-section center, aligned with flow direction for optimal detection of total and static pressures
Key Features
  • CoBeam2™ technology enables accurate and stable low-pressure signal detection, capable of measuring flow velocities as low as 1 m/s
  • Multi-stage transmission temperature-pressure compensation technology ensures accurate and stable output across wide operating ranges
  • Separate blowback for high- and low-pressure ends maintains pipeline cleanliness and prevents clogging
  • Unidirectional corrosion-resistant design suitable for complex operating conditions
  • High pressure signal stability with built-in periodic auto-zero calibration
  • Integrated temperature, pressure, and flow monitoring in a single module with adjustable probe length and independent structural design for simplified installation and maintenance
Technical Specifications
Parameter Specification
Measurement Range Temperature: (0 ~ 400) °C
Pressure: (-5 ~ +5) kPa
Flow Velocity: (0 ~ 40) m/s
Accuracy ≤ ±1% F.S.
Zero Drift ≤ ±0.5% F.S.
Response Time ≤ 10 s
Operating Temperature (-30 ~ 55) °C
Communication Interface RS485
Analog Output 4 channels, 4-20 mA output
Zero Adjustment Control Automatic valve-controlled zero adjustment, cycle configurable
Blowback Control Automatic valve-controlled blowback, cycle configurable
Power Supply 220 V AC, 50 Hz
Structural Dimensions Enclosure size: 240×125×240 mm; probe length customizable
