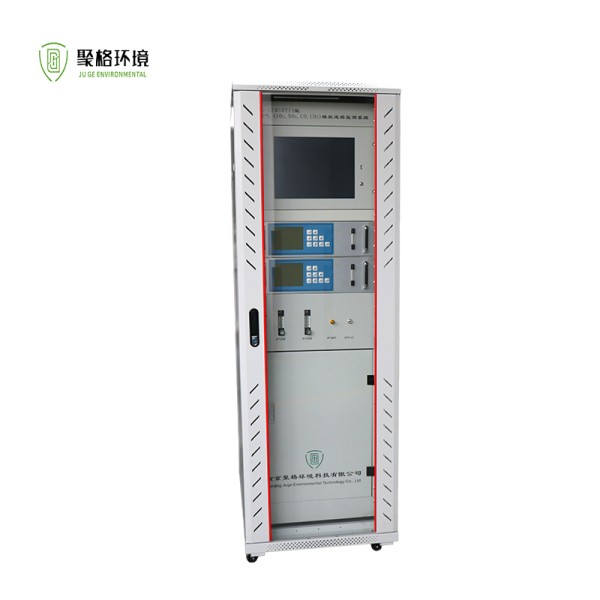

Online CEMS Continuous Emission Monitoring System For SO2 NO NO2 CO CO2 Gas Analyzer
Online CEMS Continuous Emission Monitoring System For SO2 NO NO2 CO CO2 Gas Analyzer
Specifications
SO2 Range :
0-100mg/m3 OEM
CO Range :
0-500mg/m3 OEM
O2 Range :
0-25%
Response Time :
≤120S
Repeatability :
≤2%
Model Number :
AG-CEMS07 II
Price :
USD10000-20000
Packaging Details :
Neutral carton
MOQ :
1 Unit
Delivery Time :
10-15 working days
CO2 Range :
0-20%
Payment Terms :
T/T,Online order
Supply Ability :
100 Unit/Week
NO Range :
0-100mg/m3 OEM
NO2 Range :
0-100mg/m3 OEM
Brand Name :
JUGE
Certification :
IOS9001, CE
Place of Origin :
Nanjing, China
Linearity Error :
≤±2%F.S.
Product name :
CEMS for SO2 NO NO2 CO CO2
Description
Modular Online CEMS Continuous Emission Monitoring System For SO2 NO NO2 CO CO2 Gas Analyzer
Overview

This system monitors real-time concentrations of particulate matter and gaseous pollutants in flue gas emitted from stationary pollution sources such as boilers, industrial furnaces, incinerators, and more. It enables comprehensive supervision of production and emissions directly from the source.

The CEMS (Continuous Emission Monitoring System) consists of three fundamental components: the gaseous pollutant monitoring unit (SO2, NO, NO2), the flue gas parameter monitoring unit (temperature, pressure, flow rate, O2, humidity), and the data acquisition and processing unit.

Sample gas passes through a high-temperature heated pipeline, undergoes dust removal via a two-stage filter, and is dehumidified by a two-stage condensation system before directly entering the gas chamber of the analyzer. The gas chamber is housed within the analyzer and connected to an ultraviolet differential analyzer via ultraviolet optical fibers, ensuring accurate measurement of flue gas components.

Key Features
  • Secondary condensation for rapid water removal, reducing SO2 loss
  • Long-life UV xenon lamp with high wavelength resolution ensures low detection limits, minimal temperature drift, fast response time, and accurate measurements
  • PLC-controlled with adjustable parameters to adapt to complex working conditions
  • Intelligent system design with traceable fault alarms for easy maintenance and troubleshooting
  • Fully modular design, enabling flexible expansion of monitoring factors
  • Flexible configuration: Users can choose between an NO2-NO converter or direct NO measurement as required
Main Technical Parameters
Parameter Category Measurement Range Specifications
Gaseous Pollutant SO2 (0~200) mg/m³ (customizable)
NO (0~200) mg/m³ (customizable)
NO2 (0~200) mg/m³ (customizable)
O2 (0~25)%
Repetitiveness ≤2%
24h zero drift and range drift ≤±2% f.s.
One-week zero-point drift and range drift ≤±3% f.s.
Linear error ≤±2% f.s.
Response time ≤120s
Particulate Matter Measured range (0.5~15)m
Dust concentration range (0~10) mg/m³ (customizable) Accuracy ≤±2% f.s./24h
Flue Gas Parameters Temperature (0~300) ºC (customizable)
Pressure (-10~10) kPa
Velocity of flow (0~40) m/s, (0~2) kPa (output optional)
Humidity (0~40) vol%
Data Acquisition and Processing Data transmission module 8-way analog input, 1-channel RS485 communication interface
IPC 6-way RS232 communication interface, Windows operating system
Operational software Flue gas emission monitoring software monitor
Power Supply AC 220V, 50Hz, ≤7kW
System Composition
Online CEMS Continuous Emission Monitoring System For SO2 NO NO2 CO CO2 Gas Analyzer Online CEMS Continuous Emission Monitoring System For SO2 NO NO2 CO CO2 Gas Analyzer
