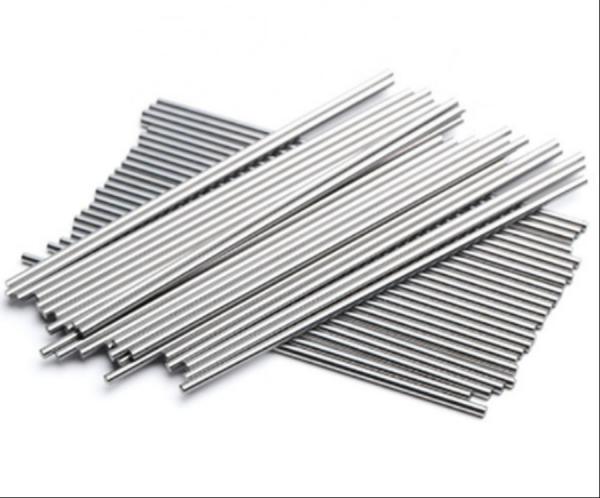

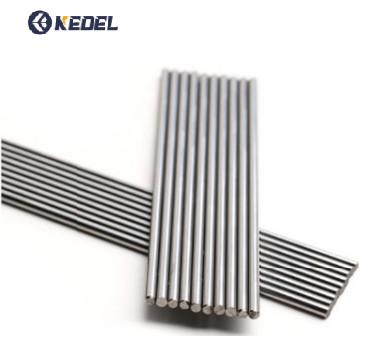

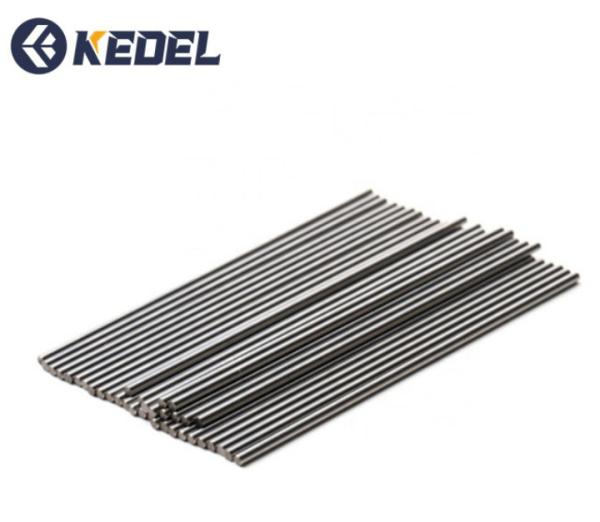

YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
Specifications
Brand Name :
Kedel
Model Number :
KDL-YB-06300
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
5 piece
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
40 Tons Per Months
Delivery Time :
10-15 Days
Packaging Details :
Cartons
Material :
Cemented Alloy
Grade :
YG10X
Surface :
Polished
Size :
6mm*300mm
Features :
Antiust\durable
MOQ :
10 PCS
Product Craft :
HIP sintered
Service :
OEM,ODM
Description
High Precision Tungsten Carbide Polished 2mm 300mm 330mm Rods Round Bar
Tungsten Carbide Rods:
  • Grade: 10% cobalt and 12% cobalt recommend
  • Size: Diameter 4--30mm available
  • Certification: ISO9001
  • Mirror polished to h6 available
  • Metric and Inch dimensions available
  • Standard length: 330mm/310mm and can cut into different length as per requirments
Cheap Price Tungsten Carbide Solid Round Rod Features
  • Excellent quality and reasonable price
  • 100% raw material
  • Good abrasion, heat and corrosion resistance
  • Various size and shape, grade
Production Process:

The following is the production process of tungsten carbide rods, to ensure high quality, we assure our customers:

  1. All materials are tested for density, hardness and T.R.S before use.
  2. Each product is subject to in-process and final inspection.
  3. Each batch of products can be traced back.
Common Sizes:
Solid Carbide Rods (Full length)

Nominal Dia D(mm) D(mm) Length Remarks

D (mm) Un-ground h6 mm

0.5 0.7 0.5 310-330

0.8 1 0.8 310-330

1 1.2 1 310-330

1.5 1.7 1.5 310-330
1/16" 1.5875 1.8 1.5875 12" -13" inch size

2 2.2 2 310-330

2.35 2.55 2.35 310-330
3/32" 2.38 2.6 2.38 12" -13" inch size

2.5 2.7 2.5 310-330

3 3.2 3 310-330
1/8" 3.175 3.4 3.175 12" -13" inchi size

3.5 3.7 3.5 310-330
5/32 3.968 4.2 3.968 12" -13" inchi size

4 4.2 4 310-330

4.5
4.5 310-330
3/16" 4.7625 5 4.762 12" -13" inch size

5 5.2 5 310-330

5.5 5.7 5.5 310-330

6 6.2 6 310-330
1/4" 6.35 6.6 6.35 12" -13" inch size

6.5 6.7 6.5 310-330

7 7.2 7 310-330

7.5 7.7 7.5 310-330
5/16" 7.937 8.2 7.937 12" -13" inch size

8 8.2 8 310-330

8.5 8.7 8.5 310-330

9 9.2 9 310-330

9.5 9.7 9.5 310-330
3/8" 9.525 9.7 9.525 12" -13" inch size

10 10.2 10 310-330

10.5 10.7 10.5 310-330

11 11.2 11 310-330
7/16" 11.11 11.3 11.11 12" -13" inch size

11.5 11.7 11.5 310-330

12 12.2 12 310-330

12.5 12.7 12.5 310-330
1/2" 12.7 12.9 12.7 12" -13" inch size

13 13.2 13 310-330

13.5 13.7 13.5 310-330

14 14.2 14 310-330
9/16" 14.288 14.5 14.288 12" -13" inch size

14.5 14.7 14.5 310-330

15 15.2 15 310-330

15.5 15.7 15.5 310-330
5/8" 15.875 16.1 15.875 12" -13" inch size

16 16.2 16 310-330

16.5 16.7 16.5 310-330

17 17.2 17 310-330

17.5 17.7 17.5 310-330

18 18.2 18 310-330

18.5 18.7 18.5 310-330

19 19.2 19 310-330
3/4" 19.05 19.3 19.05 12" -13" inch size

19.5 19.7 19.5 310-330

20 20.2 20 310-330

20.5 20.7 20.5 310-330

21 21.2 21 310-330

21.5 21.7 21.5 310-330

22 22.2 22 310-330

22.5 22.7 22.5 310-330

23 23.2 23 310-330

23.5 23.7 23.5 310-330

24 24.2 24 310-330

24.5 24.7 24.5 310-330

25 25.2 25 310-330
1" 25.4 25.7 25.4 12" -13" inch size

26 26.3 26 310-330

27 27.2 27 310-330

28 28.2 28 310-331

29 29.2 29 310-333

30 30.2 30 310-334

31 31.2 31 310-335
1-1/4" 31.75 32 31.75 12" -13" inch size

32 32.2 32 310-336

33 33.2 33 310-337

34 34.2 34 310-338

35 35.2 35 310-339

36 36.2 36 310-340

37 37.2 37 310-341

38 38.2 38 310-342
1-1/2" 38.1 38.4 38.1 12" -13" inch size

39 39.2 39 310-343

40 40.2 40 310-344

42 42.2 42 310-344
Tungsten Carbide Rods Grade Chart:
Grade ISO grade Grain size (um) Binder Density (g/cm³) Hardness (HV30) Hardness (HRA) T.R.S (N/m㎡)
KD10F K05-K10 0.4 6 14.9 1950 93.0 2800
KD10M K05-K10 1.2 6 14.8 1510 91.0 2600
KD15 K10-K20 0.8 8 14.6 1610 92.0 3000
KD20(YG10X) K20-K30 0.8 10 14.4 1610 92.0 3800
KD20F(YL10.2) K20-K30 0.6 10 14.5 1570 91.5 3600
KD25UF K30-K40 0.4 12 14.2 1610 92.0 4000
KD30M K30-K40 1.5 15 14.2 1150 87.5 3200
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
Production Equipment
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
Quality Equipment
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
Exhibition
YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar YG10X Tungsten Carbide Rod 6mm x 300mm Polished Cemented Alloy Bar
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are factory.
Q: Do you make customized products?
A: Yes, we often make customized products.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally 1-5 days if we have stock, 5-10 days if the goods are in stock, or 15-20 days if not in stock, 30 days if the product is customized. It is according to quantity.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
