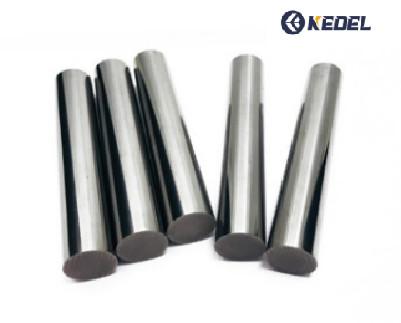

Tungsten carbide raw material 10% cobalt tungsten alloy carbide rod stock D8x60mm
We manufactured and stocked a large range of tungsten carbide rod with or without hole for you.
Our Diameter from 0.3mm to 40mm, the inner hole can be 0.1mm min
length in 310mm, 330mm or 340mm, or any length.
Grade inYL10.2, K10, K20 K30, K35 or etc.
Due to its good material properties, tungsten carbide is widely used in various industries: paper making, packaging, printing, non-ferrous metal processing industry, machinery, chemical industry, petroleum, metallurgy, electronics and defense industry.
Diameter(mm) | Length(mm) | Tolerance of D |
---|---|---|
1-3mm | 330 | h5/h6 |
4 | 330 | h5/h6 |
5 | 330 | h5/h6 |
6 | 330 | h5/h6 |
7 | 330 | h5/h6 |
8 | 330 | h5/h6 |
9 | 330 | h5/h6 |
9.5 | 330 | h5/h6 |
10 | 330 | h5/h6 |
11 | 330 | h5/h6 |
12 | 330 | h5/h6 |
13 | 330 | h5/h6 |
14 | 330 | h5/h6 |
15 | 330 | h5/h6 |
16 | 330 | h5/h6 |
17 | 330 | h5/h6 |
18 | 330 | h5/h6 |
19 | 330 | h5/h6 |
20 | 330 | h5/h6 |
....... | 330 | h5/h6 |
37 | 330 | h5/h6 |
We are able to help you customized various diameter and length carbide rod. gound or unground both available. We generally have inventory size from Dia1mm to Dia20mm with Length 300mm/330mm
Some grade information for reference
Grade | Density(g/cm3) | Hardness (HRA) | T.R.S (N/mm2) | Composition(%) | Grain Size (μm) | ISO |
---|---|---|---|---|---|---|
YL10.2 | 14.4-14.6 | 92.5-92.8 | 3800 | 10%Co+90%WC | 0.6 | K25-K35 |
YG8 | 14.65-14.85 | 89.5 | 2320 | 8%Co+92%WC | 0.8-1.2 | K30 |
YG6 | 14.85-15 | 90 | 2150 | 6%Co+94%WC | 0.8-1.2 | K20 |
YG12X | 14.3-14.5 | 92 | 2500 | 12%Co+88%WC | 0.6-0.8 | |
YG10X | 14.3-14.7 | 90 | 2200 | 10%Co+90%WC | 0.6-0.8 | K35 |
YG15 | 13.9-14.2 | 87 | 2100 | 15%Co+85%WC | 0.8-1.2 |
Other grade and dimension are also available for choosing based your specific application. please contact us at any time
Production Process:
tungsten carbide rods process, to ensure high quality, we commit our customers that:
1. All materials are tested in terms of purity ,density, hardness and T.R.S before use.
2. Every piece of product is inspected before shipment
We Guarantee:
Other Carbide rod type:
For tungsten carbide rod,we can make various type
We are manufacturer.
Yes, we often make customized products.
We can provide free samples, but do not pay freight cost.
Generally 1-5 days if we have stock, 30 days if the product is customized.
