YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
Specifications
Brand Name :
Kedel
Place of Origin :
Sichuan, China
MOQ :
5 piece
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
40 Tons Per Months
Delivery Time :
10-15 Days
Packaging Details :
Cartons
Model Number :
KDL-YB-06300
Certification :
ISO9001:2015,SGS,
Material :
Cemented Alloy
Grade :
YG10X
Surface :
Polished
Size :
6mm*3000mm
Origin of Place :
Sichuan, China
MOQ :
10 PCS
Product Craft :
HIP sintered
Service :
OEM,ODM
Description

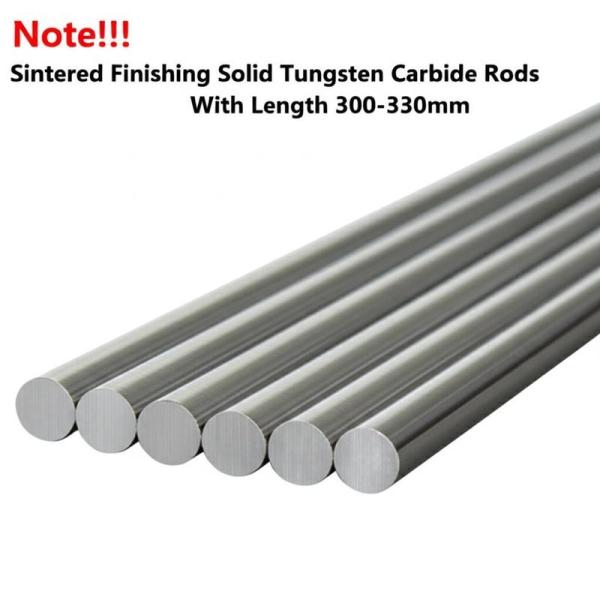

Sintered Finishing Solid Tungsten Carbide Rod With Length 300-330mm
Tungsten Carbide Rods Specifications
  • Grade: 10% cobalt and 12% cobalt recommend
  • Size: Diameter 4--30mm available
  • Certification: ISO9001
  • Mirror polished to h6 available
  • Metric and Inch dimensions available
  • Standard length: 330mm/310mm and can cut into different length as per requirments
Cheap Price Tungsten Carbide Solid Round Rod Features
  • Excellent quality and reasonable price
  • 100% raw material
  • Good abrasion, heat and corrosion resistance
  • Various size and shape, grade
Production Process

Below are the production processes of tungsten carbide rods, to ensure high quality, we assured our customers that:

  1. All materials are tested in terms of density, hardness and T.R.S before use.
  2. Every piece of product goes through in-process and final inspection.
  3. Every batch of product can be traced.
Tungsten Carbide Rods Technical Data
Grade ISO grade Grain size (um) Binder Density (g/cm³) Hardness (HV30) Hardness (HRA) T.R.S (N/m㎡)
KD10F K05-K10 0.4 6 14.9 1950 93.0 2800
KD10M K05-K10 1.2 6 14.8 1510 91.0 2600
KD15 K10-K20 0.8 8 14.6 1610 92.0 3000
KD20(YG10X) K20-K30 0.8 10 14.4 1610 92.0 3800
KD20F(YL10.2) K20-K30 0.6 10 14.5 1570 91.5 3600
KD25UF K30-K40 0.4 12 14.2 1610 92.0 4000
KD30M K30-K40 1.5 15 14.2 1150 87.5 3200
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
Production Equipment
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
Quality Equipment
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
Exhibition
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
YG10X Tungsten Carbide Rod 6mm x 3000mm HIP Sintered
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
