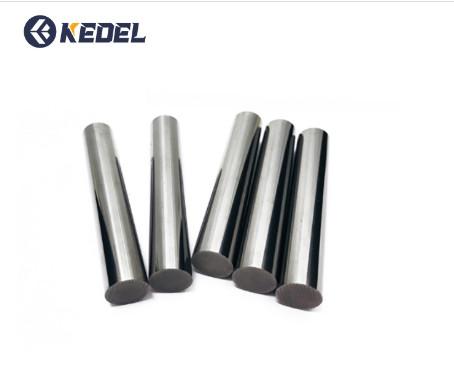

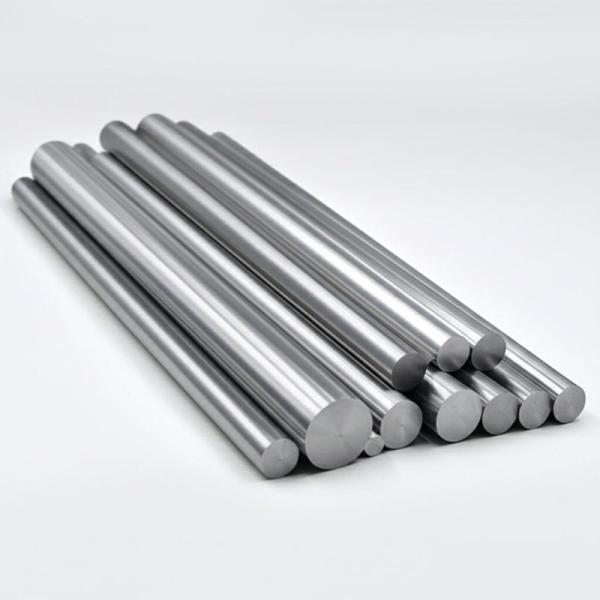

YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering
YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering
YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering
YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering
Specifications
Brand Name :
Kedel
Model Number :
KD-2001
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
20 Piece/Pieces
Price :
$0.60 - $18.00 / Piece
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 pcs per months
Packaging Details :
box +carton
Product Name :
round bars solid carbide rods tungsten carbide rods
Size :
Dia3x330-Dia30x330
Grade :
K05/K10/K20/K30
Advantage :
HIP Sintering, long lifespan
Appplication :
making drills,mold punches, milling cutter,end mills
Surface :
Ground/unground
Service :
customized available
Performance :
Wear Resistant\rustResistant
Description
YG6 YG8 YG10 Length 10-330 mm Solid Carbide Round Blank Bar Solid Tungsten Carbide Rod

Tungsten carbide raw material 10% cobalt tungsten alloy carbide rod stock D8x60mm

We manufactured and stocked a large range of tungsten carbide rod with or without hole for you. Our Diameter from 0.3mm to 40mm, the inner hole can be 0.1mm min length in 310mm, 330mm or 340mm, or any length. Grade inYL10.2, K10, K20 K30, K35 or etc.

Products Advantages
  • We use 100% raw materials to manufacture tungsten carbide cooling rods
  • According to different applications, we have different grades to choose from: YL10.2/YG8/YG6/YG6X/K10/K20
  • Performance: Our products have high hardness, wear/corrosion resistance, good roughness, high performance
  • Size: dia1/2/3/4/5/6*length 330mm. We can provide various sizes according to your application
  • Surface: according to your requirements, blank or unpolished
  • Advanced production equipment and perfect quality control system
  • 100% inspection before shipment
  • We are a real factory in Chengdu. Our quality is guaranteed and the price is competitive.
Application Areas
  • Paper
  • Packaging
  • Printing
  • Non-ferrous metal processing industry
  • Mechanical
  • Chemical
  • Petroleum
  • Metallurgy
  • Electronic and national defense industries
Technical Specifications
Diameter(mm) Length(mm) Tolerance of D
1-3mm 330 h5/h6
4 330 h5/h6
5 330 h5/h6
6 330 h5/h6
7 330 h5/h6
8 330 h5/h6
9 330 h5/h6
9.5 330 h5/h6
10 330 h5/h6
11 330 h5/h6
12 330 h5/h6
13 330 h5/h6
14 330 h5/h6
15 330 h5/h6
16 330 h5/h6
17 330 h5/h6
18 330 h5/h6
19 330 h5/h6
20 330 h5/h6
....... 330 h5/h6
37 330 h5/h6

We are able to help you customized various diameter and length carbide rod. gound or unground both available. We generally have inventory size from Dia1mm to Dia20mm with Length 300mm/330mm

Some grade information for reference

>
>
Grade Density(g/cm3) Hardness (HRA) T.R.S (N/mm2) Composition(%) Grain Size (μm) ISO
YL10.2 14.4-14.6 92.5-92.8 3800 10%Co+90%WC 0.6 K25-K35
YG8 14.65-14.85 89.5 2320 8%Co+92%WC 0.8-1.2 K30
YG6 14.85-15 90 2150 6%Co+94%WC 0.8-1.2 K20
YG12X 14.3-14.5 92 2500 12%Co+88%WC 0.6-0.8
YG10X 14.3-14.7 90 2200 10%Co+90%WC 0.6-0.8 K35
YG15 13.9-14.2 87 2100 15%Co+85%WC 0.8-1.2

Other grade and dimension are also available for choosing based your specific application. please contact us at any time

Production Process

tungsten carbide rods process, to ensure high quality, we commit our customers that:

  • All materials are tested in terms of purity ,density, hardness and T.R.S before use.
  • Every piece of product is inspected before shipment
YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering
Our Guarantees
  1. produced with advanced equipments and process.
  2. high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
  3. all products go through in-process and final inspection.
  4. Quality Control System and strict inspection.
  5. stable and continuous production ability.
  6. free online technical service available.
  7. OEM and ODM are accepted as well.
  8. Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for consistent performance capacity of your tools.
  9. Undertake orders of non-standard sizes at customer's requests.
Other Carbide Rod Types
  • solid carbide rod
  • grinding carbide rod
  • blank carbide rod
  • carbide rod with chamfer
  • carbide rod with single hole
  • custom carbide rod
  • carbide rod with tap
Production Equipment
YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering
Quality Equipment
YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering
Exhibition
YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer.
Do you make customized products?
Yes, we often make customized products.
Do you provide free samples?
We can provide free samples, but do not pay freight cost.
How long is your delivery time?
Generally 1-5 days if we have stock, 30 days if the product is customized.
