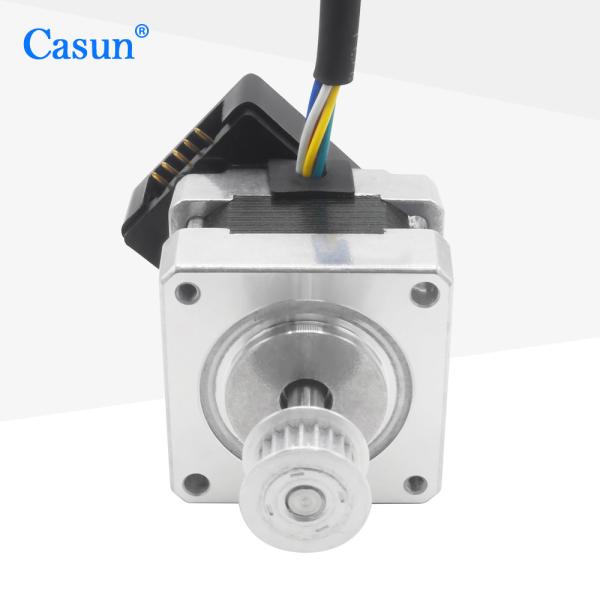

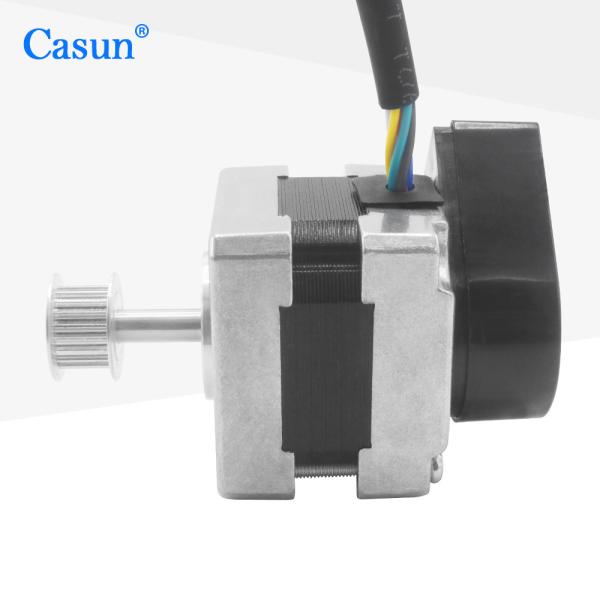

Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear
Specifications
Brand Name :
Casun
Model Number :
39SHE6320-24AQ
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$23.4~$25.36
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
105 mN.m
Voltage :
8.75V
Current :
0.5A
Body Length :
32mm
Weight :
0.18 kg
Phase Resistance :
12.5 ohm ±10% （At 20℃）
Shaft Length :
24 mm
Phase :
2
Insulation Class :
Class B
Description

Casun Hybrid Stepper Motor Nema16 105 mN.m 8.75 V High Quality Stepping Motor with Encoder and Gear

The Casun Nema16 Hybrid Stepper Motor combines encoder feedback and precision gearing to deliver exceptional motion control in a compact package. With 105 mN.m torque and 8.75 V operation, this motor is engineered for robotics, automation, and high-accuracy positioning systems where reliability and performance are critical.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear

Motor Specifications

Step Angel

 1.8°

Frame Size

 32 mm

Number of Phase

 2 Phase

Rated Current

 0.5 Amp

Holding Torque

 105 mN.m

Resistance

 17.5 ohm

Inductance

 9.6 mH

Rotor Inertia

 20 g.cm²

Motor weight

 0.18 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear Hybrid Stepper Motor Nema16 105mN.m 8.75V Stepping Motor With Encoder And Gear

Please click the "Get a quote" button below to tell us your requirements.
