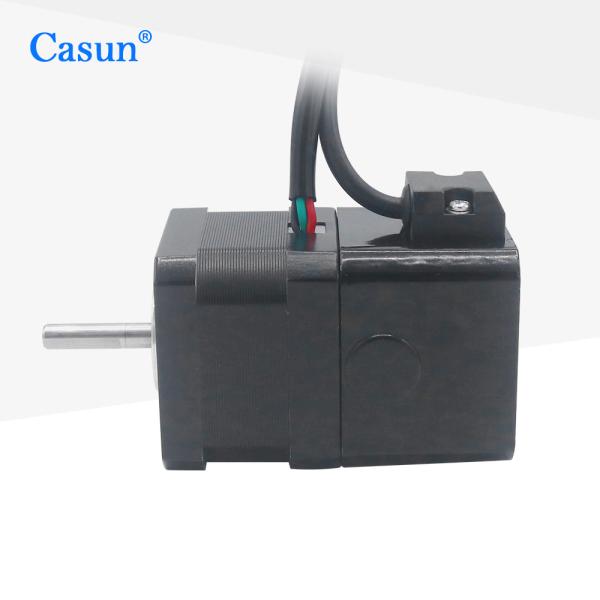

Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC
Specifications
Brand Name :
Casun
Model Number :
42SHD4034-24BH-HP42
Certification :
CE, ISO, ROHS
Place of Origin :
China
MOQ :
5pcs
Price :
$22-$19
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100000/pcs per month
Delivery Time :
15 workdays
Packaging Details :
Carton:36x29x14cm
shaft :
24
torque :
300mN.m
current :
1.2A
voltage :
6.0V
body :
67mm
Customized :
The motor can be designed &manufactured with customized request.
Description

Nema 17 Colsed-loop Stepper Motor, 42*42*34mm.1.8 Degree 2 Phase, 300mN.m Holding Torque.

Top Manufacturer Supplier 42*33mm 1.8 Degree Closed-Loop Nema 17 Stepper Motors 300mN.M For Cnc Kit Electric Motor

The 42mm deceleration Colsed-loop stepper motor combines the characteristics of stepper motors, enabling precise positioning control and being suitable for applications that require high-precision positioning.

Features:

  • Bipolar or unipolar versions are available

  • We offer custom services and accept contract manufacturing. Wanted dealers! !

  • Available in single- or double-shaft versions

  • Professional drivetrain solution specialist

  • Customizations on request

Dimensions

Nema 17 closed loop stepper motor Nema 17 stepper motor with Encoder 1.2A 42x34mm CNC for Medical Examination 3D Printer Control Industrial Use DC

Motor Specifications

Step Angel

 1.8 °

Fram Size

 42 mm

Number of Phase

 2 Phase

Rated Current

 1.2 A

Holding Torque

 300 N.m

Resistance

 5.0 ohm

Inductance

 6.2 mH

Rotor Inertia

 38 g-cm²

Motor weight

 0.8 kg

Shatf

 24 mm

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
