DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal
Specifications
Delivery Time :
15 working days
O-Rings :
FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc.
Model Number :
Type 380
Temp. :
depending on Elastomer
MOQ :
1pc
Packaging Details :
Carton
Metals :
DIN 1.4571 / 316 SS
Membrane (bellows) :
Hast. C
Supply Ability :
1000000/Month
Faces :
CA, SC, SSIC, TC (Ni)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Springs :
Hast. C
Certification :
ISO9001
Speed :
35 m/sec.
Brand Name :
BESTSEAL
Pressure :
700 mm Hg - 28 bar
Place of Origin :
CHINA
D shaft :
20 - 110 mm, 7/8“ - 4 ¼“
Rolled bellows :
Hast. C, Incolloy
Description
DEPAC Type 380 API Stationary Single Cartridge Mechanical Seal for Petroleum Industry

Mechanical seals

cartridges

API mechanical seals

Mechanical seal Type 380

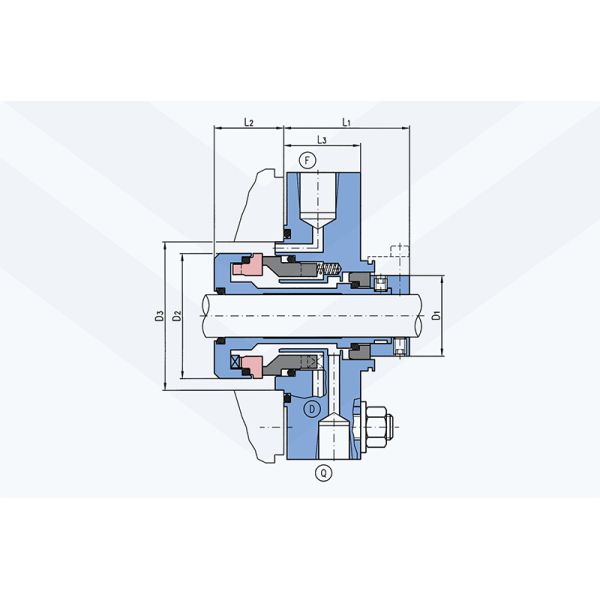

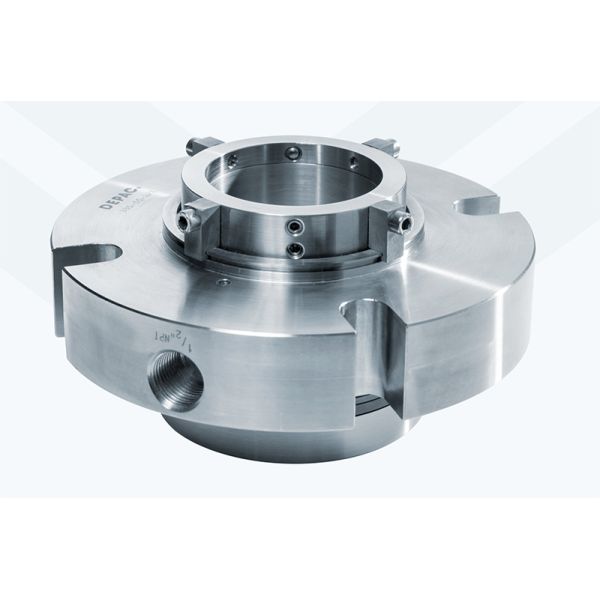

The type 380 is a stationary single-cartridge seal.

The mechanical seal was specially optimised to meet the requirements of the petroleum industry.

The type 380 is equipped with a so-called "floating" safety seal.

As a result, this mechanical seal is also recommended for extreme boundary conditions - from water and highly volatile hydrocarbons to acids and alkalis.

Advantages
  • Cartridge-mounted
  • Stationary design principle
  • Balanced
  • "Floating" safety seal
  • Independent of the direction of rotation
  • Shock and vibration-dampend faces
  • Springs outside the medium
Technical details
Range of application
Pressure 700 mm Hg - 28 bar
Temp. depending on Elastomer
Speed 35 m/sec.


Materials
Dshaft 20 - 110 mm

7/8“ - 4 ¼“
Materials
Metals DIN 1.4571 / 316 SS
Springs Hast. C
Faces CA, SC, SSIC, TC (Ni)
O-Rings FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc.
Alternatives
Membrane (bellows) Hast. C
Rolled bellows Hast. C, Incolloy

Other sizes, materials or design variations upon request.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL API mechanical seals

Your Fast-Track Alternative to DEPAC Type 380

Custom API mechanical seals — From Drawing to Delivery in 15–20 Working Days
