Specifications
Brand Name :
BESTSEAL
O-Rings :
FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc.
Supply Ability :
1000000/Month
Temp. :
Elastomer dependent
Delivery Time :
15 working days
Sliding velocity :
up to 35 m/s
Model Number :
Type 270 270R
Metals :
DIN 1.4571/Hast. C
Faces :
CA, SC, SSIC, TC
Springs :
Hast. C
Packaging Details :
Carton
Pressure :
700 mm Hg - 28 bar
Place of Origin :
CHINA
D shaft :
16 - 160 mm, 1“ - 6 ¼“, Special sizes available on request
MOQ :
1pc
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Certification :
ISO9001
Description
DEPAC Type 270 270R Stationary Single Cartridge Mechanical Seal for Pumps

Mechanical seals

Single-acting cartridges

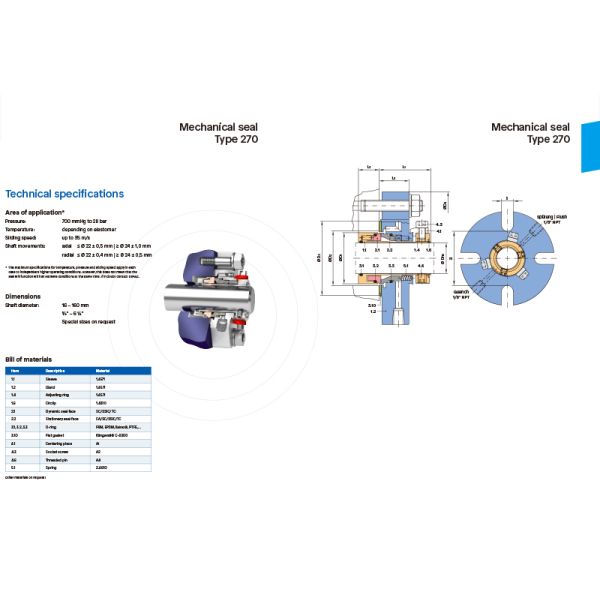

Mechanical seal type 270

The DEPAC mechanical seal type 270 is a stationary single-cartridge seal that is extremely well suited for conversions from gland packing to mechanical seal, since modification of the unit is not usually necessary. The stationary design principle developed by DEPAC for the process industry also offers maximum running reliability even in difficult ranges of applications for mechanical seals.

Advantages
  • Stationary design principle
  • Ideal for conversions from gland packings to mechanical seals
  • Extremely well suited for standardisations
  • Cartridge-mounted
  • Balanced
  • Independent of the direction of rotation
  • Multiple springs made of Hastelloy C
  • Springs outside the medium - no blockage of the springs
  • Vibration-dampend stationary face support
Technical details
Range of application*
Pressure 700 mm Hg - 28 bar
Temp. Elastomer dependent
Sliding velocity up to 35 m/s
Shaft movements axial ≤ Ø 22 +/- 0,5 mm | ≥ Ø 24 +/- 1,0 mm

radial ≤ Ø 22 +/- 0,4 mm | ≥ Ø 24 +/- 0,5 mm


Sizes
Dshaft 16 - 160 mm

1“ - 6 ¼“

Special sizes available on request
Materials
Metals DIN 1.4571/Hast. C
Springs Hast. C
Faces CA, SC, SSIC, TC
O-Rings FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc.

Other sizes, materials or design variations upon request.

* Maximum temperature / pressure / speed indicates operating extremes independently and does not imply the seal will function at these extremes at the same time. Contact BESTSEAL if in doubt.

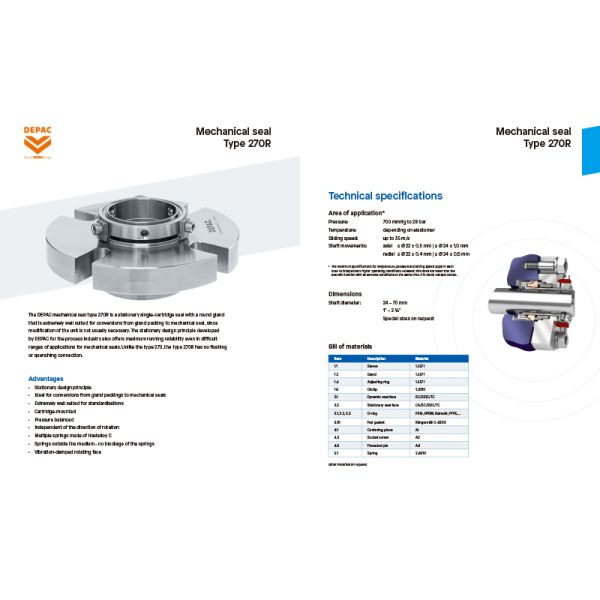

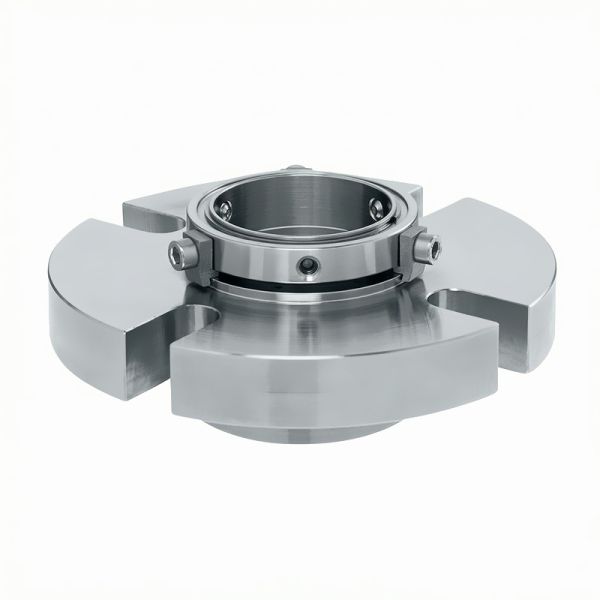

Mechanical seal Type 270R

The DEPAC mechanical seal type 270R is a stationary single-cartridge seal with a round gland that is extremely well suited for conversions from gland packing to mechanical seal, since modification of the unit is not usually necessary. The stationary design principle developed by DEPAC for the process industry also offers maximum running reliability even in difficult ranges of applications for mechanical seals. Unlike the type 270, the type 270R has no flushing or quenching connection.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seals

Your Fast-Track Alternative to DEPAC Type 270 270R

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
