Description
DEPAC Type 270 ANSI Stationary Single Cartridge Mechanical Seals for Pumps

Mechanical seals

cartridges

ANSI mechanical seals

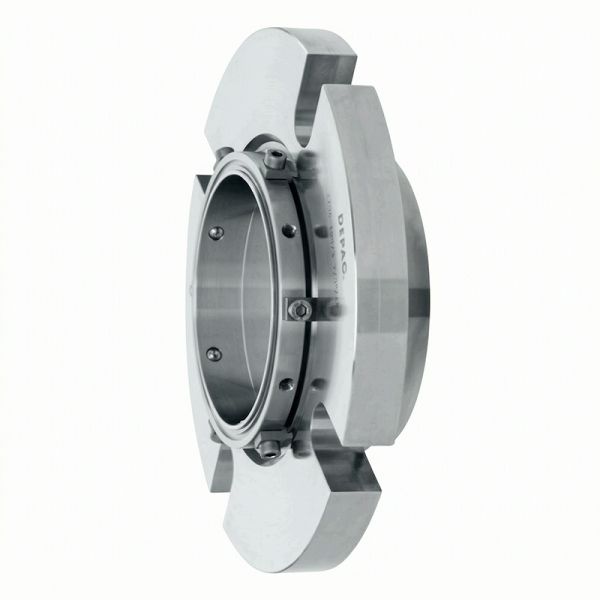

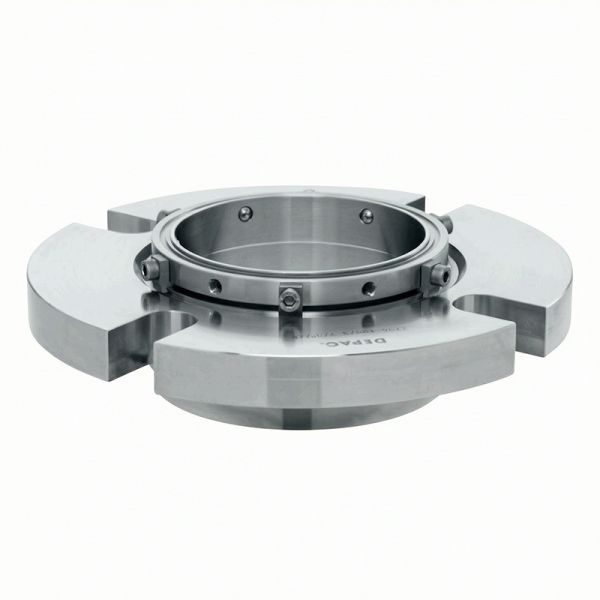

Mechanical seal Type 270 ANSI

The type 270 ANSI is a stationary single-cartridge seal.

This mechanical seal was specially developed for the large, so-called "big bore" seal chambers of the ANSI.

The special ANSI mechanical seal is available in welded bellows and rolled bellows versions.

Advantages
  • Stationary design principle
  • Cartridge design
  • Balanced
  • Independent of the direction of rotation
  • Shock and vibration-dampend faces
  • Springs outside the medium

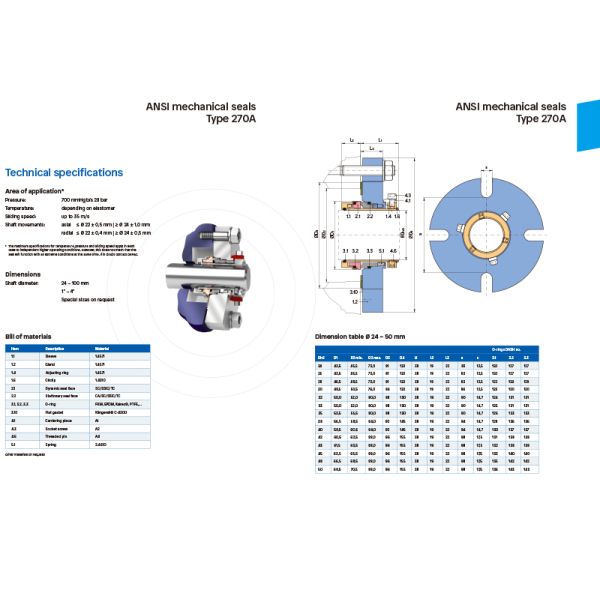

Technical details
Range of application*
Pressure 700 mm Hg - 28 bar
Temp. Elastomer dependent
Sliding velocity up to 35 m/s
Shaft movements axial ≤ Ø 22 +/- 0,5 mm | ≥ Ø 24 +/- 1,0 mm

radial ≤ Ø 22 +/- 0,4 mm | ≥ Ø 24 +/- 0,5 mm

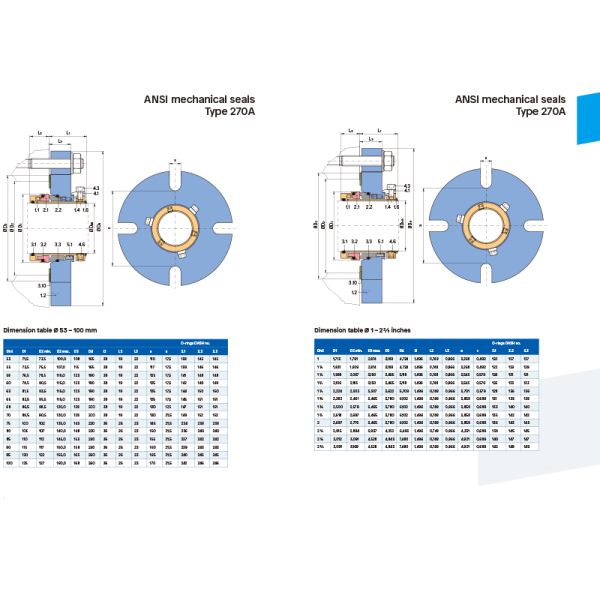

Sizes
Dshaft 24 - 100 mm

1“ - 4“

Special sizes available on request
Materials
Metals DIN 1.4571/Hast. C
Springs Hast. C
Faces CA, SC, SSIC, TC
O-Rings FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc.

Other sizes, materials or design variations upon request.
* Maximum temperature / pressure / speed indicates operating extremes independently and does not imply the seal will function at these extremes at the same time. Contact BESTSEAL if in doubt.
