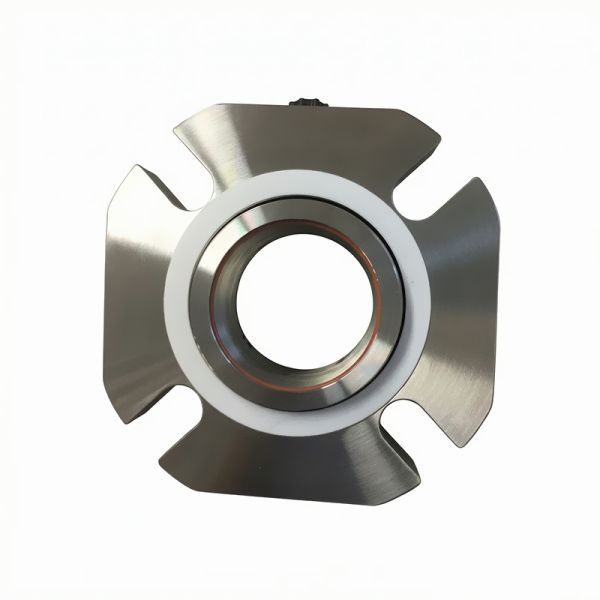

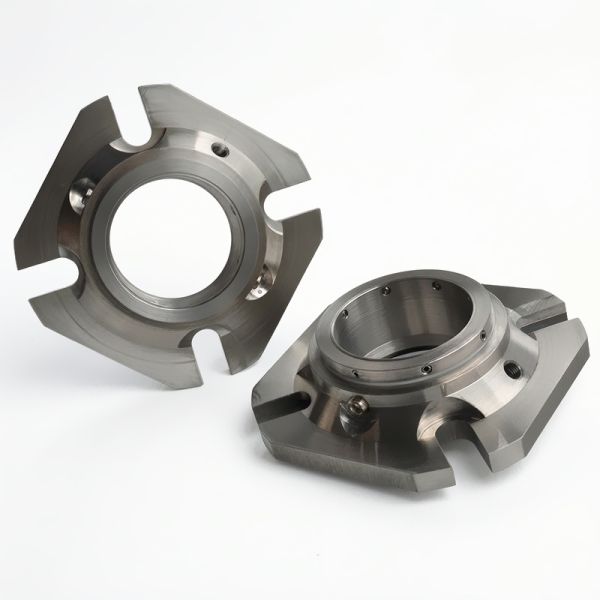

DEPAC Type 301 Stationary Single Cartridge Mechanical Seal for Packing Pumps
DEPAC Type 301 Stationary Single Cartridge Mechanical Seal for Packing Pumps
DEPAC Type 301 Stationary Single Cartridge Mechanical Seal for Packing Pumps
DEPAC Type 301 Stationary Single Cartridge Mechanical Seal for Packing Pumps
DEPAC Type 301 Stationary Single Cartridge Mechanical Seal for Packing Pumps
DEPAC Type 301 Stationary Single Cartridge Mechanical Seal for Packing Pumps
DEPAC Type 301 Stationary Single Cartridge Mechanical Seal for Packing Pumps
DEPAC Type 301 Stationary Single Cartridge Mechanical Seal for Packing Pumps
Specifications
Delivery Time :
15 working days
O-Rings :
FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc.
Model Number :
Type 301
Temp. :
Elastomer dependent
MOQ :
1pc
Packaging Details :
Carton
Metals :
DIN 1.4571 / 316 SS
Membrane (bellows) :
Hast. C, AM 350
Supply Ability :
1000000/Month
Faces :
CA, CE, SC, SSIC, TC
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Springs :
Hast. C
Certification :
ISO9001
Sliding velocity :
up to 35 m/s
Brand Name :
BESTSEAL
Pressure :
700 mm Hg - 28 bar
Place of Origin :
CHINA
D shaft :
24 - 160 mm, 1“ - 6 ¼“, Special sizes available on request
Rolled bellows :
Hast. C, Incolloy
Description
DEPAC Type 301 Stationary Single Cartridge Mechanical Seal for Packing Pumps

Mechanical seals

Single-acting cartridges

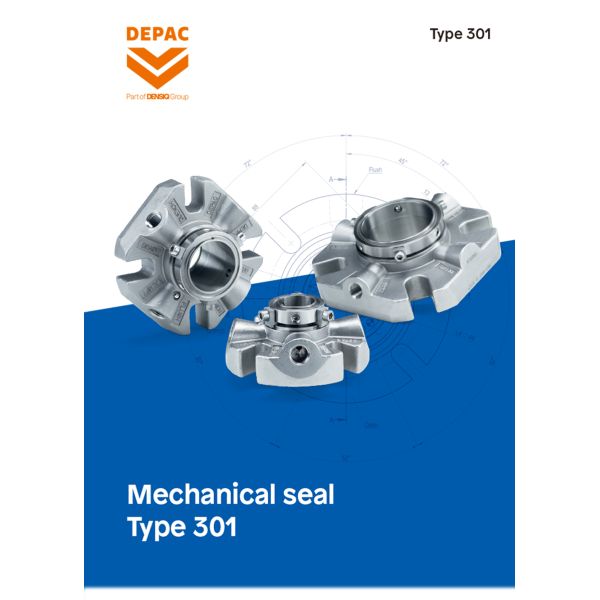

Mechanical seal Type 301

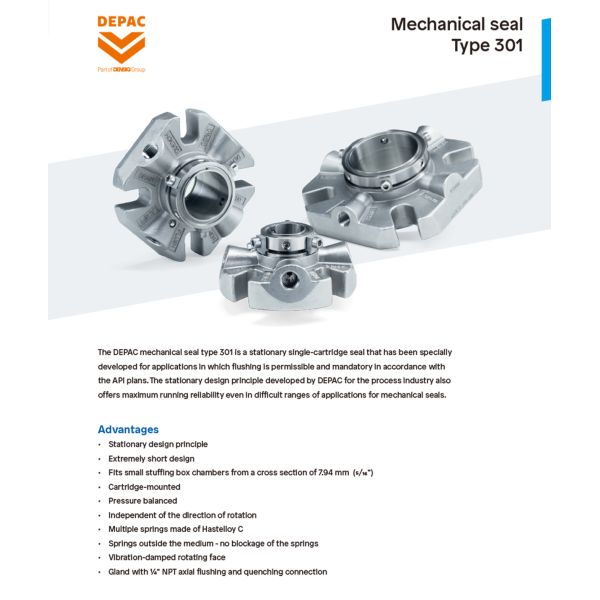

The type 301 is a stationary single-cartridge seal. Thanks to its extremely short design, the type 301 is also suitable for cramped stuffing boxes with a cross-section from 7.95 mm (5/16"). The precision lost-wax casting process for the glands impresses through a high surface quality and an inexpensive sales price.

The type 301 is supplied in an O-ring design.

Advantages
  • Glands with ¼" NPT axial flush and quench connections
  • Shock and vibration-dampend faces
  • Springs outside the medium
  • Independent of the direction of rotation
  • Extremely short design
  • Suitable for cramped stuffing boxes from 7.94 mm (5/16") cross-section

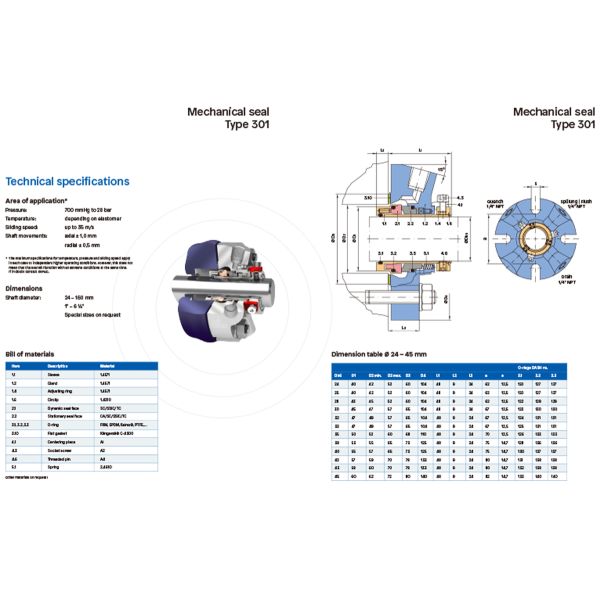

Technical details
Range of application*
Pressure 700 mm Hg - 28 bar
Temp. Elastomer dependent
Sliding velocity up to 35 m/s
Shaft movements axial +/- 1,0 mm

radial +/- 0,5 mm

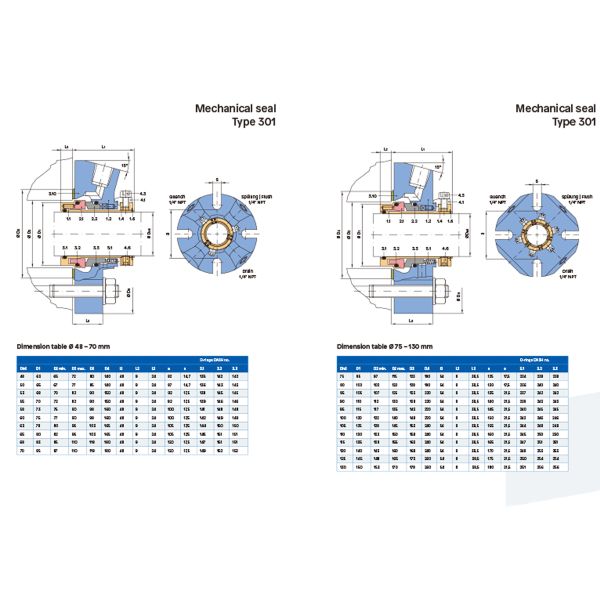

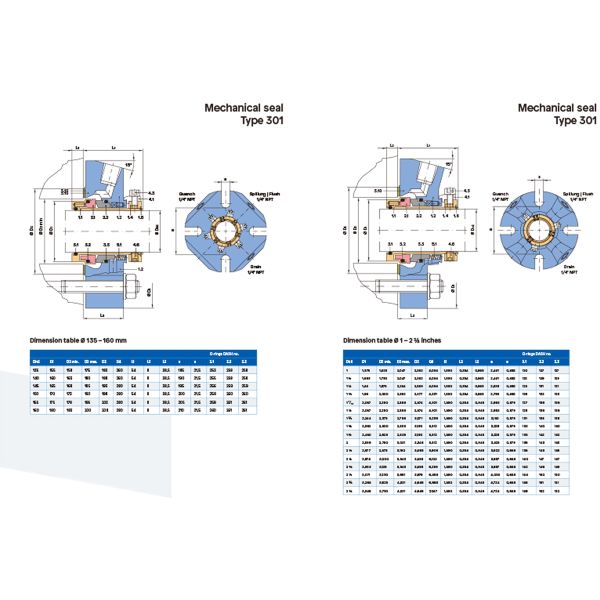

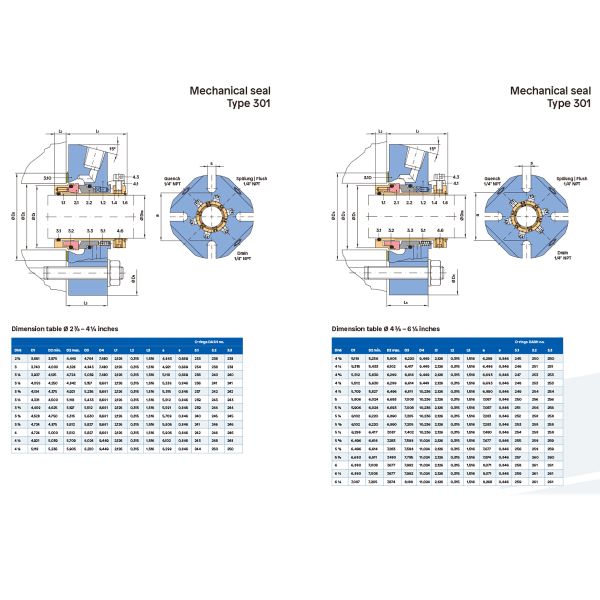

Sizes
Dshaft 24 - 160 mm

1“ - 6 ¼“

Special sizes available on request
Materials
Metals DIN 1.4571 / 316 SS
Springs Hast. C
Faces CA, CE, SC, SSIC, TC
O-Rings FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc.
Alternative
Membrane (bellows) Hast. C, AM 350
Rolled bellows Hast. C, Incolloy

Other sizes, materials or design variations upon request.
* Maximum temperature / pressure / speed indicates operating extremes independently and does not imply the seal will function at these extremes at the same time. Contact BESTSEAL if in doubt.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seals

Your Fast-Track Alternative to DEPAC Type 301

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
