Specifications
Model Number :
HGH201
Pressure :
p1 = 25 bar (363 PSI)
Place of Origin :
CHINA
Sliding velocity :
vg = 20 m/s (66 ft/s)
Certification :
ISO9001
Temperature :
t1 = 150 °C (302 °F)
MOQ :
1pc
Packaging Details :
Carton
Axial movement :
±2.0 mm
Metal parts :
CrNiMo steel (G)
Supply Ability :
1000000/Month
Seat :
Silicon carbide (Q1, Q2), Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Seal face :
Silicon carbide (Q1, Q2)
Delivery Time :
15 working days
Secondary seals :
FKM (V), EPDM (E), NBR (P)
Brand Name :
BESTSEAL
Shaft diameter :
d1 = 50 ... 310 mm (2" … 12.20")
Description

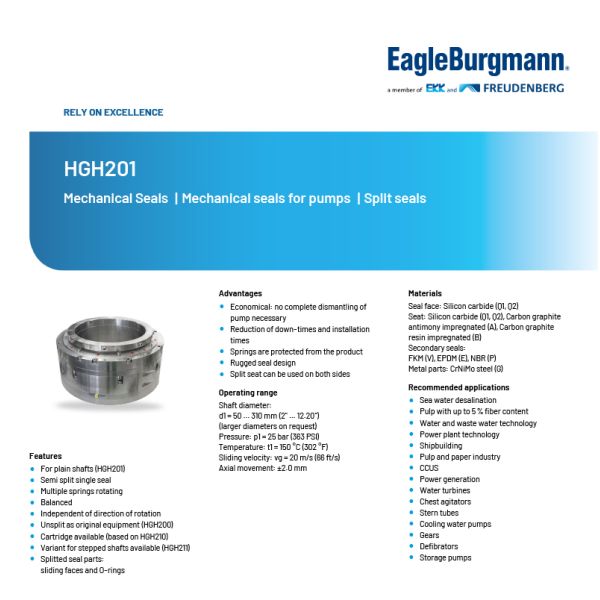

EagleBurgmann HGH201 Split Seals Cartridge Mechanical Seal for Storage Pumps

Mechanical seals for pumps

Split seals

HGH201

Advantages

  • Economical: no complete dismantling of pump necessary
  • Reduction of down-times and installation times
  • Springs are protected from the product
  • Rugged seal design
  • Split seat can be used on both sides

Features

  • For plain shafts (HGH201)
  • Semi split single seal
  • Multiple springs rotating
  • Balanced
  • Independent of direction of rotation

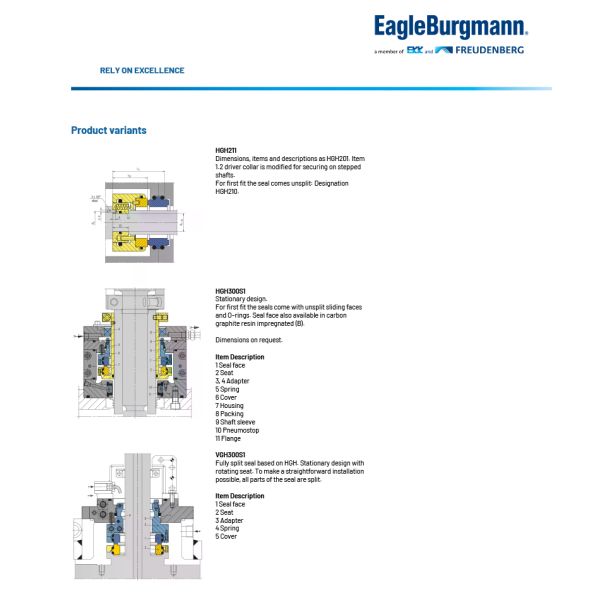

  • Unsplit as original equipment (HGH200)
  • Cartridge available (based on HGH210)
  • Variant for stepped shafts available (HGH211)
  • Splitted seal parts:
  • sliding faces and O-rings

Recommended applications

  • Sea water desalination
  • Pulp with up to 5 % fiber content
  • Water and waste water technology
  • Power plant technology
  • Shipbuilding
  • Pulp and paper industry
  • CCUS
  • Power generation
  • Water turbines
  • Chest agitators
  • Stern tubes
  • Cooling water pumps
  • Gears
  • Defibrators
  • Storage pumps

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Split Seals

Your Fast-Track Alternative to EagleBurgmann HGH201

Custom Split Seals — From Drawing to Delivery in 15–20 Working Days
