EagleBurgmann Splitex Split Seals Semi Cartridge Mechanical Seal for Pumps
EagleBurgmann Splitex Split Seals Semi Cartridge Mechanical Seal for Pumps
EagleBurgmann Splitex Split Seals Semi Cartridge Mechanical Seal for Pumps
EagleBurgmann Splitex Split Seals Semi Cartridge Mechanical Seal for Pumps
EagleBurgmann Splitex Split Seals Semi Cartridge Mechanical Seal for Pumps
EagleBurgmann Splitex Split Seals Semi Cartridge Mechanical Seal for Pumps
EagleBurgmann Splitex Split Seals Semi Cartridge Mechanical Seal for Pumps
EagleBurgmann Splitex Split Seals Semi Cartridge Mechanical Seal for Pumps
Specifications
Delivery Time :
15 working days
Pressure :
p1 = 10 bar (145 PSI)
Model Number :
Splitex
Seat :
Silicon carbide (Q6)
MOQ :
1pc
Packaging Details :
Carton
Seal face :
Carbon graphite antimoniny impregnated (A), Silicon carbide (Q6)
Supply Ability :
1000000/Month
Temperature :
t = -40 ... +150 °C (- 40 … + 300 °F),
Radial movement :
±0.8 mm (1/32")
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Sliding velocity :
vg = 10 m/s (33 ft/s)
Axial movement :
±1.5 mm (1/16")
Springs :
CrNiMo steel (G)
Brand Name :
BESTSEAL
Secondary seals :
FKM (V), EPDM (E), NBR (P)
Certification :
ISO9001
Shaft diameter :
d1 = 50 … 150 mm (1.940" … 6.000")
Place of Origin :
CHINA
Metal parts :
CrNiMo steel (G)
Description

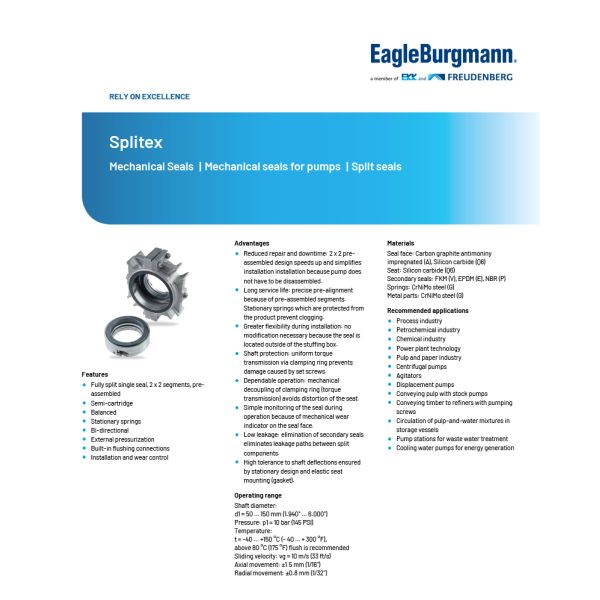

EagleBurgmann Splitex Split Seals Semi Cartridge Mechanical Seal for Pumps


Mechanical seals for pumps

Split seals

Splitex

Advantages

  • Reduced repair and downtime: 2 x 2 pre-assembled design speeds up and simplifies installation installation because pump does not have to be disassembled.
  • Long service life: precise pre-alignment because of pre-assembled segments. Stationary springs which are protected from the product prevent clogging.
  • Greater flexibility during installation: no modification necessary because the seal is located outside of the stuffing box.
  • Shaft protection: uniform torque transmission via clamping ring prevents damage caused by set screws.
  • Dependable operation: mechanical decoupling of clamping ring (torque transmission) avoids distortion of the seat.
  • Simple monitoring of the seal during operation because of mechanical wear indicator on the seal face.
  • Low leakage: elimination of secondary seals eliminates leakage paths between split components.
  • High tolerance to shaft deflections ensured by stationary design and elastic seat mounting (gasket).

Features

  • Fully split single seal, 2 x 2 segments, pre-assembled
  • Semi-cartridge
  • Balanced
  • Stationary springs
  • Bi-directional
  • External pressurization
  • Built-in flushing connections
  • Installation and wear control

Recommended applications

  • Process industry
  • Petrochemical industry
  • Chemical industry
  • Power plant technology
  • Pulp and paper industry
  • Centrifugal pumps
  • Agitators
  • Displacement pumps
  • Conveying pulp with stock pumps
  • Conveying timber to refiners with pumping screws
  • Circulation of pulp-and-water mixtures in storage vessels
  • Pump stations for waste water treatment
  • Cooling water pumps for energy generation

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Split Seals

Your Fast-Track Alternative to EagleBurgmann Splitex

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
