John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
John Crane Type 37FS Split Mechanical Seals for Agitators Mixers Pumps
Specifications
Delivery Time :
15 working days
Cord Segment :
TFE Propylene
Drive Ring :
316 Stainless Steel
Model Number :
Type 37FS

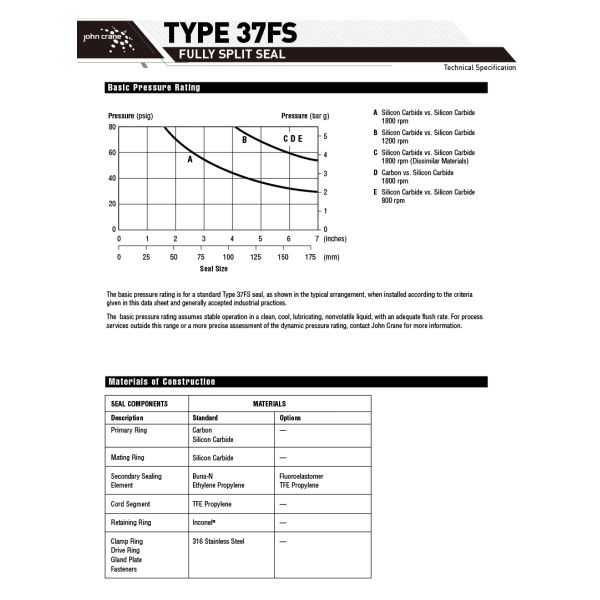

Pressure Limits :
80 psi(g)/5.5 bar(g)
MOQ :
1pc
Packaging Details :
Carton
Primary Ring :
Carbon, Silicon Carbide
Retaining Ring :
Inconel
Supply Ability :
1000000/Month
Secondary Sealing Element :
Buna-N, Ethylene Propylene, Fluoroelastomer, TFE Propylene
Gland Plate :
316 Stainless Steel
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Mating Ring :
Silicon Carbide
Fasteners :
316 Stainless Steel
Certification :
ISO9001
Speed Limits :
1800 rpm
Brand Name :
BESTSEAL
Temperature Limits :
180°F/82°C
Place of Origin :
CHINA
Recommended Applications :
Process pumps, Other rotating equipment
Clamp Ring :
316 Stainless Steel
Description

John Crane Type 37FS Split Mechanical Seals Elastomer Bellows Seal for Agitators Mixers and Pumps


Cartridge Mechanical Seals

Split Seals

Type 37FS

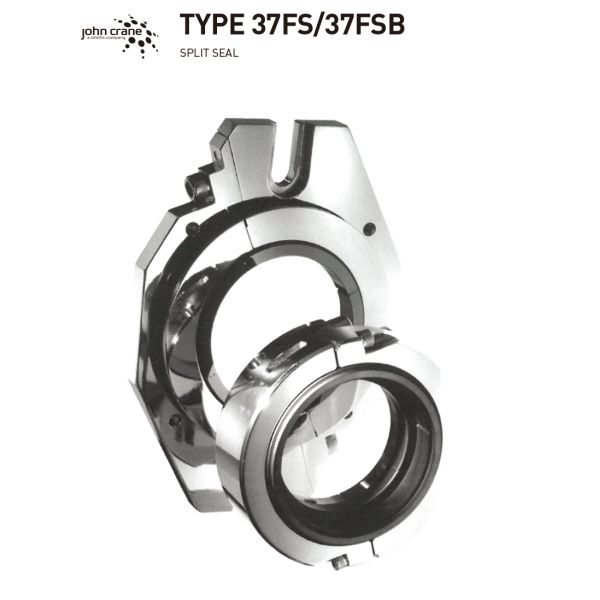

Heavy-duty Split Elastomer Bellows Seal for Agitators, Mixers and Pumps

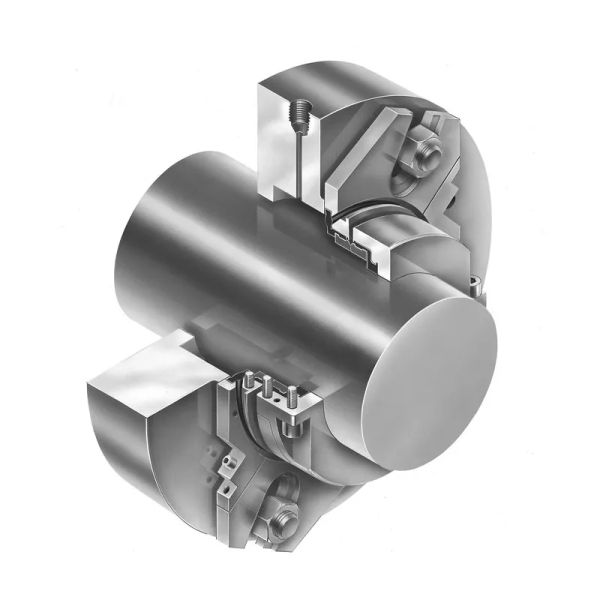

The Type 37FS fully split mechanical seal helps significantly reduce maintenance on larger, difficult-to-seal equipment. It is recommended for use on heavy-duty packed equipment that previously could not accommodate mechanical seals due to severe shaft run-out and vibration, difficult disassembly, worn-out equipment and similar problems. Its outside-mounted design allows it to be used on both vertical and horizontal applications.

The mechanical seals are ideal for use on large, heavy duty rotating shaft equipment such as mixers, agitators, and pumps. They are commonly found in the demanding pulp and paper, power generation, food and beverage, wastewater treatment and mining industries and are quickly and easily repairable, either on-site or at any John Crane Service Center.

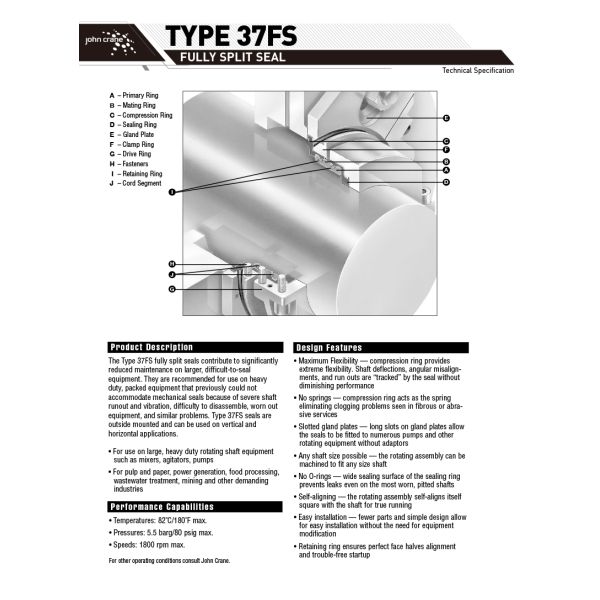

Features

  • The elastomer bellows compression ring provides extreme flexibility. Shaft deflections, angular misalignment, and run-outs are "tracked" by the seal without diminishing performance. Type 37FS split seals solve shaft motion and vibration problems that prohibit use of other seal designs.
  • The compression ring acts as the spring, eliminating clogging problems seen in fibrous or abrasive services.
  • The wide sealing surface of the sealing ring prevents leaks even on the most worn, pitted shafts.
  • Rotating assembly self-aligns itself square with the shaft for true running.
  • Fewer parts and simple design allow for easy installation. Seal can be readily mounted on worn shafts and out-of-square stuffing boxes — no modification of equipment is needed.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Split Seals

Your Fast-Track Alternative to John Crane Type 37FS

Custom Split Seals — From Drawing to Delivery in 15–20 Working Days
