AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps
Specifications
Delivery Time :
15 working days
Model Number :
ISOS
Housing O Ring :
FKM - EPR - FFKM - TFE/P
MOQ :
1pc
Packaging Details :
Carton
Bladder O Ring :
FKM - EPR - FFKM - TFE/P
Supply Ability :
1000000/Month
Caphead Bolt :
Stainless Steel
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Cover Plate :
316L Stainless Steel
Certification :
ISO9001
Inflatable Bladder :
EPDM - NBR - FKM
Brand Name :
BESTSEAL
Main Housing :
316L Stainless Steel
Place of Origin :
CHINA
Inner Ring :
316L Stainless Steel
Description

AESSEAL ISOS Split Cartridge Mechanical Seals Inflatable Shut off Seal for Pumps


Cartridge Mechanical Seals

Split Seals

ISOS

Inflatable Shut off Seal

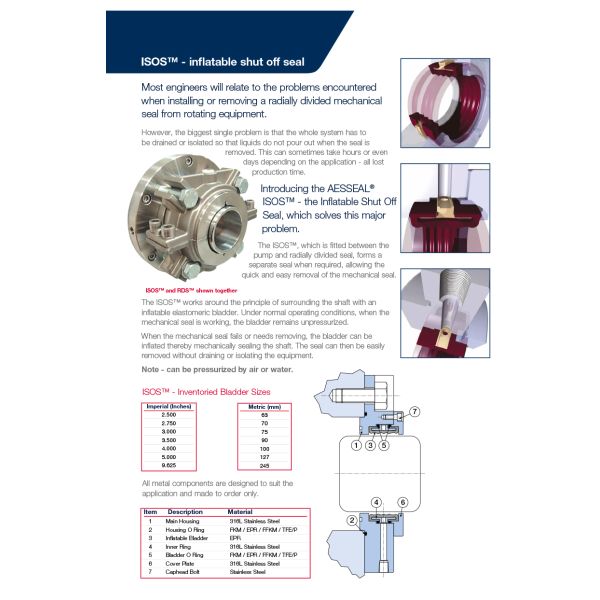

The ISOS™ (inflatable shut-off seal) is fitted between the pump and a radially-divided seal, to form a separate seal when required, allowing the quick and easy removal of the mechanical seal.

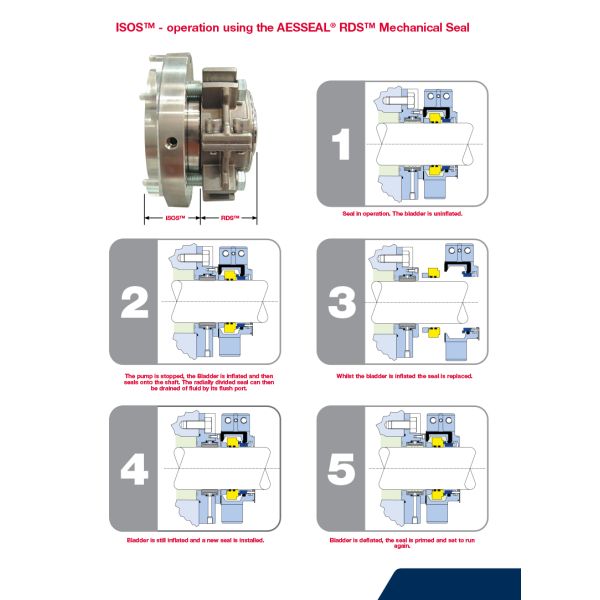

The ISOS™ works around the principal of surrounding the shaft with an inflatable elastomeric bladder. Under normal operating conditions when the mechanical seal is working the bladder remains unpressurized. When the mechanical seal fails or needs removing the bladder can be inflated thereby mechanically sealing the shaft. The seal can then be easily removed without draining or isolating the equipment.

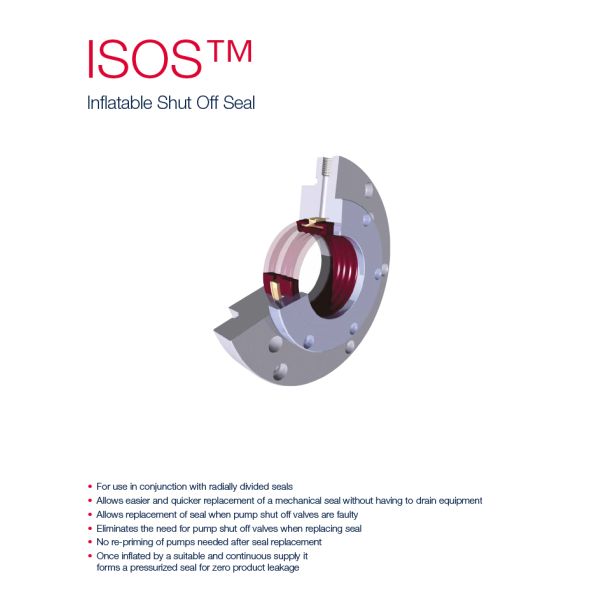

Features

  • For use in conjunction with radially-divided seals
  • Allows easier and quicker replacement of a mechanical seal without having to drain equipment
  • Allows replacement of seal when pump shut off valves are faulty
  • Eliminates the need for pump shut-off valves when replacing the seal
  • No repriming of pumps needed after seal replacement
  • Once inflated by a suitable continuous supply it forms a pressurised seal for zero product leakage

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Split Seals
Your Fast-Track Alternative to AESSEAL ISOS
Custom Split Seals — From Drawing to Delivery in 15–20 Working Days
