BF ISP Cartridge Type Seal ABS Scanpump Pumps Mechanical Seal Parts
BF ISP Cartridge Type Seal ABS Scanpump Pumps Mechanical Seal Parts
BF ISP Cartridge Type Seal ABS Scanpump Pumps Mechanical Seal Parts
BF ISP Cartridge Type Seal ABS Scanpump Pumps Mechanical Seal Parts
BF ISP Cartridge Type Seal ABS Scanpump Pumps Mechanical Seal Parts
BF ISP Cartridge Type Seal ABS Scanpump Pumps Mechanical Seal Parts
BF ISP Cartridge Type Seal ABS Scanpump Pumps Mechanical Seal Parts
BF ISP Cartridge Type Seal ABS Scanpump Pumps Mechanical Seal Parts
Specifications
Model Number :
Type BF-ISP
Speed :
up to 18 m/s
Certification :
ISO9001
Pressure :
up to 25 bar
MOQ :
1pc
Packaging Details :
Carton
Rotating face product side :
SSiC, TC
Elastomer :
EPDM / FPM, FFPM
Supply Ability :
1000000/Month
Rotating face atmospheric side :
TC
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Stationary face product side :
SSiC - Carbon, TC
Brand Name :
BESTSEAL
Temperature :
up to 80 °C without quench
Place of Origin :
CHINA
Solid contents :
Slurry with up to 60 % solid contents by weight
Springs :
EN 1.4401
Delivery Time :
15 working days
Stationary face atmospheric side :
Carbon, SSiC
Metal parts :
EN 1.4436/1.4460, Titanium / EN 1.4462
Description

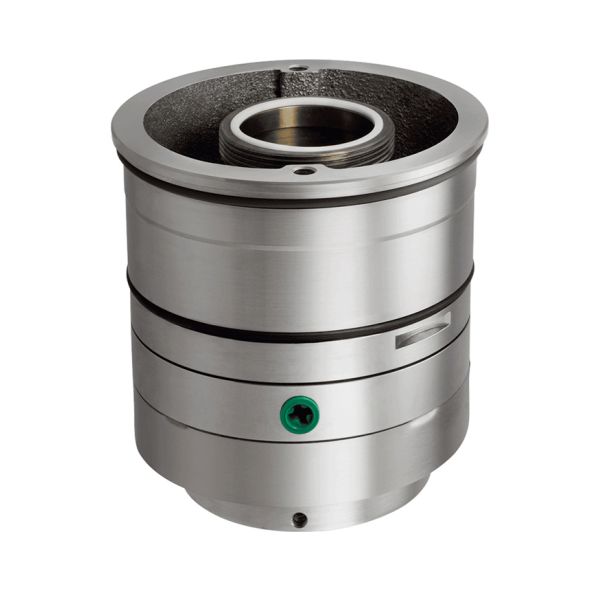

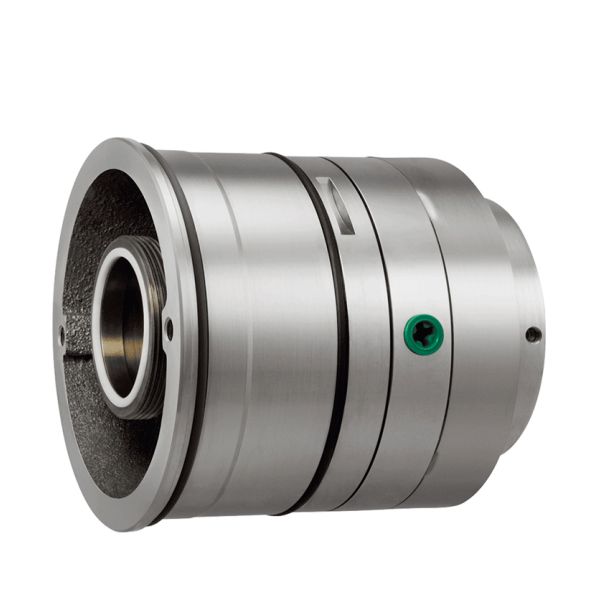

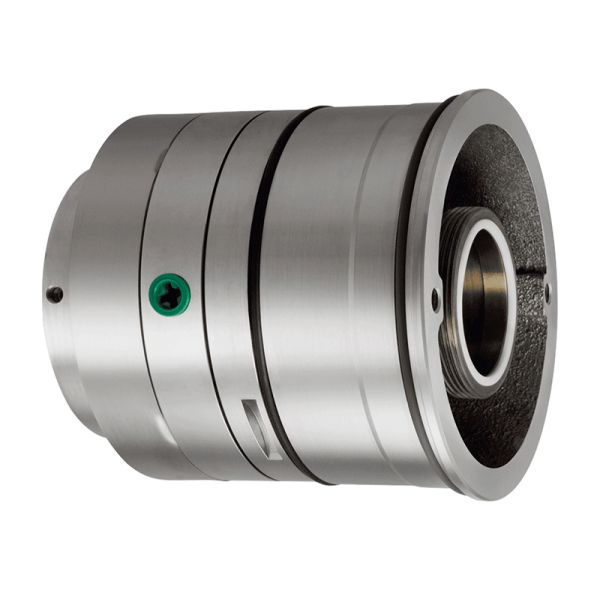

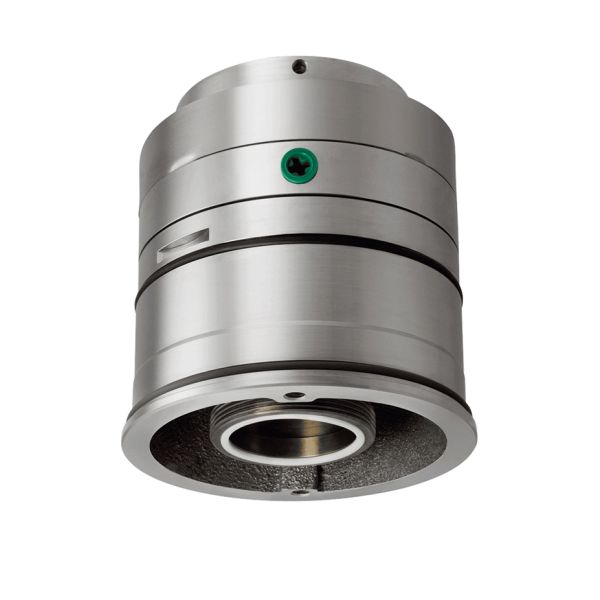

Huhnseal Type BF-ISP Balanced Single Cartridge Mechanical Seal for ABS Scanpump Pumps

Cartridge Mechanical Seal

BF-ISP

Balanced single cartridge seal equipped with flush

Huhnseal BF-ISP is a balanced single cartridge seal equipped with flushing arrangement and two Grafoil rings.

This seals is specially designed for ABS Scanpump pumps.

Features

  • 1. Specially designed for ABS Scanpump pumps (Locks in place) and Robust and balanced design

    Easy installation reduces risk of human error. No measurements required for installation. Undisturbed operation even with sudden pressure shocks

  • 2. Springs are protected from the process media

    Prevents clogging of seal

  • 3. Axial movement ±3mm

    Necessary if shaft has large axial clearance Heat expansion of shaft does not impact on spring load

  • 4. Shaft sleeve clamped to recess in shaft, no stop screws

    Shaft sleeve clamped to recess in shaft, no stop screws Contributes to safe operation

  • 5. Large buffer volume

    Provides for excellent cooling

  • 6. Special vortex braking geometry

    Extends the lifetime of the sea

Performance Capabilities

Temperature up to 80 °C without quench
Pressure up to 25 bar
Speed up to 18 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Packing Individual packing ,1 pc in 1 small box is available as well
Application Areas

Pulp & Paper

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seal

Your Fast-Track Alternative to Huhnseal Type BF-ISP

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
