Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
Specifications
Delivery Time :
15 working days
Model Number :
Type ED
Stationary face product side :
SSiC, TC
MOQ :
1pc
Packaging Details :
Carton
Elastomer :
EPDM / FPM / FFPM
Supply Ability :
1000000/Month
Metal parts :
EN 1.4404, Titanium / EN 1.4462
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Springs :
HASTELLOY CTM, EN 1.4401
Certification :
ISO9001
Rotating face atmospheric side :
TC
Brand Name :
BESTSEAL
Rotating face product side :
SSiC+C, TC
Place of Origin :
CHINA
Stationary face atmospheric side :
Carbon, SSiC
Description

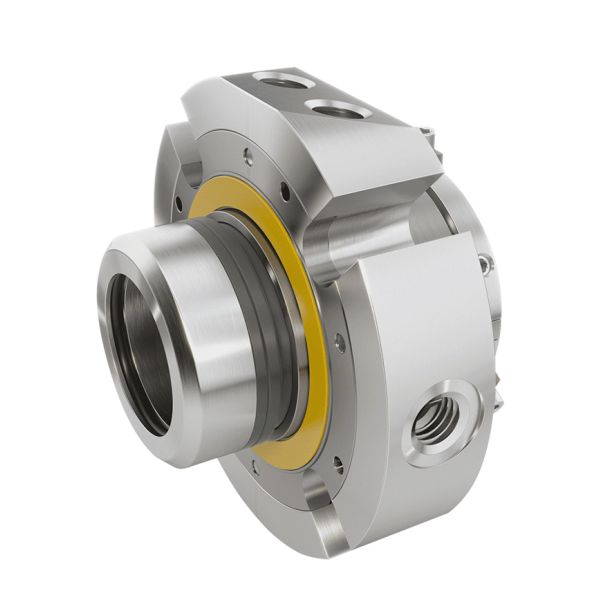

Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps


Cartridge Mechanical Seal

ED

balanced double cartridge seal

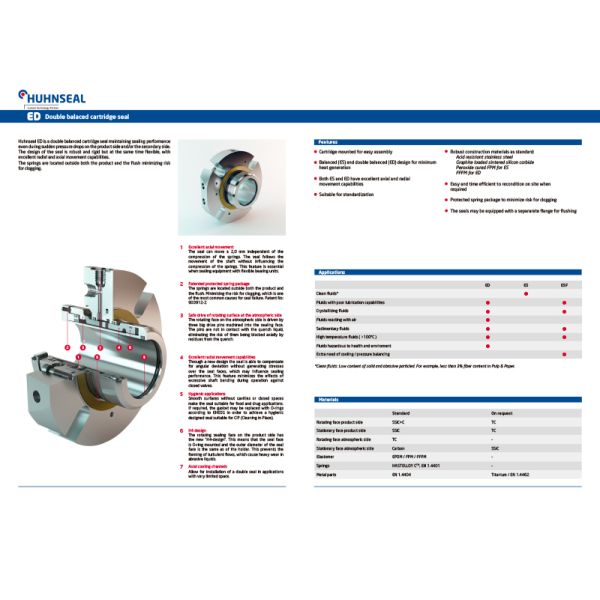

Huhnseal ED is a double balanced cartridge seal maintaining sealing performance even during sudden pressure drops on the product side and/or the secondary side. The design of the seal is robust and rigid but at the same time flexible, with excellent radial and axial movement capabilities. The springs are located outside both the product and the flush minimizing risk for clogging.

Features and Benefits

  • The seal can move ± 2,0 mm independent of the compression of the springs. The seal follows the movement of the shaft without influencing the compression of the springs. This feature is essential when sealing equipment with flexible bearing units.
  • Smooth surfaces without cavities or closed spaces make the seal suitable for food applications. If required, the gasket may be replaced with O-rings according to EHEDG in order to achieve a hygienic designed seal suitable for CIP.
  • Allow for installation of a double seal in applications with very limited space.
  • Excellent axial movement The seal can move ± 2,0 mm independent of the compression of the springs. The seal follows the movement of the shaft without influencing the compression of the springs.
  • The rotating sealing face on the product side has the new “H4-design”. This means that the seal face is O-ring mounted and the outer diameter of the seal face is the same as of the holder.
  • Through a new design the seal is able to compensate for angular deviation without generating stresses over the seal faces, which may influence sealing performance. This feature minimizes the effects of excessive shaft bending during operation against clos.

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
Application Areas

Sanitary

Mining & Slurry

Pulp & Paper

Chemical industry

Pharmaceutical industry

W&WW and Dewatering

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seal

Your Fast-Track Alternative to Huhnseal Type ED

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days


Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps

Huhnseal Type ED Balanced Double Cartridge Mechanical Seal for Pumps
