Specifications
Metal parts :
CrNiMo steel (G)
Model Number :
MA390 / MA391
Certification :
ISO9001
Place of Origin :
CHINA
MA390 Temperature :
-20 °C …160 °C
Packaging Details :
Carton
Seal face (MA391) :
Silicon carbide (Q1)
Delivery Time :
15 working days
Seal face (MA390) :
High density carbon graphite
MOQ :
1pc
Seat (MA390/391) :
Silicon carbide (Q1)
Secondary seals :
FKM (V)
Brand Name :
BESTSEAL
MA391 Pressure :
16 bar (232 PSI)
MA391 Temperature :
-20 °C …160 °C
Supply Ability :
1000000/Month
Standards and approvals :
EN 12756, ISO 3096
MA390 Pressure :
20 bar (290 PSI)
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Description

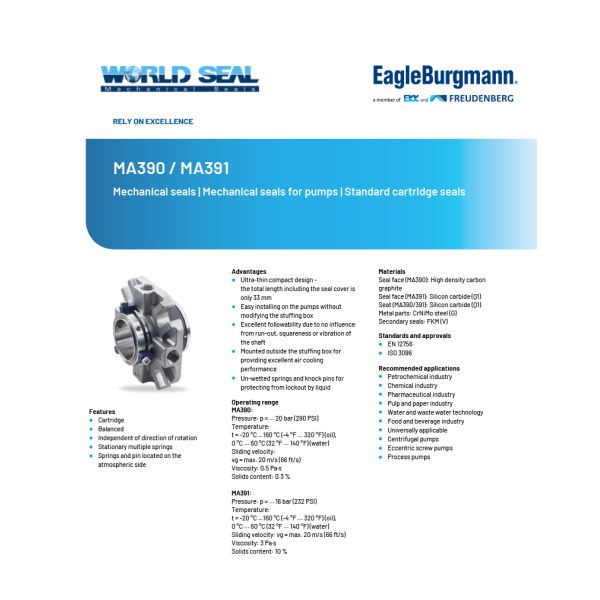

MA390 MA391 Standard Cartridge Mechanical Seals EagleBurgmann Seal for Pumps

Mechanical seals

Mechanical seals for pumps

Standard cartridge seals

MA390 / MA391

Type: Single Cartridge Seal
Replacement: EagleBurgmann MA390 / MA391
Temperature: -20℃ to +160℃
Pressure: ≤1.6Mpa
Speed: ≤20m/s
Material: Q1,Q2,Graphite,V,G
Features
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Stationary multiple springs
  • Springs and pin located on the atmospheric side
Advantages

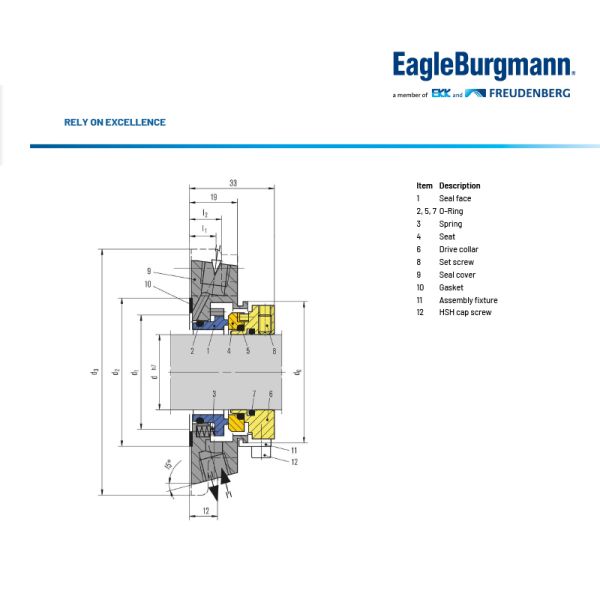

  • Ultra-thin compact design -
    the total length including the seal cover is only 33 mm
  • Easy installing on the pumps without modifying the stuffing box
  • Excellent followability due to no influence from run-out, squareness or vibration of the shaft
  • Mounted outside the stuffing box for providing excellent air cooling performance
  • Un-wetted springs and knock pins for protecting from lockout by liquid
Operating range

MA390:
Pressure: p = … 20 bar (290 PSI)
Temperature:
t = -20 °C …160 °C (-4 °F ... 320 °F) (oil),
0 °C ... 60 °C (32 °F ... 140 °F) (water)
Sliding velocity:
vg = max. 20 m/s (66 ft/s)
Viscosity: 0.5 Pa·s
Solids content: 0.3 %

MA391:
Pressure: p = … 16 bar (232 PSI)
Temperature:
t = -20 °C …160 °C (-4 °F ... 320 °F) (oil),
0 °C ... 60 °C (32 °F ... 140 °F) (water)
Sliding velocity: vg = max. 20 m/s (66 ft/s)
Viscosity: 3 Pa·s
Solids content: 10 %

Materials

Seal face (MA390): High density carbon graphite
Seal face (MA391): Silicon carbide (Q1)
Seat (MA390/391): Silicon carbide (Q1)
Metal parts: CrNiMo steel (G)
Secondary seals: FKM (V)

Standards and approvals
  • EN 12756
  • ISO 3096
