Specifications
Model Number :
Type BF-AP
Stationary face product side :
SSiC, TC
Supply Ability :
1000000/Month
Metal parts :
EN 1.4404, Titanium / EN 1.4462
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Springs :
HASTELLOY CTM, EN 1.4401
Certification :
ISO9001
Rotating face atmospheric side :
TC
MOQ :
1pc
Packaging Details :
Carton
Elastomer :
EPDM / FPM / FFPM
Delivery Time :
15 working days
Brand Name :
BESTSEAL
Rotating face product side :
SSiC+C, TC
Place of Origin :
CHINA
Stationary face atmospheric side :
Carbon, SSiC
Description

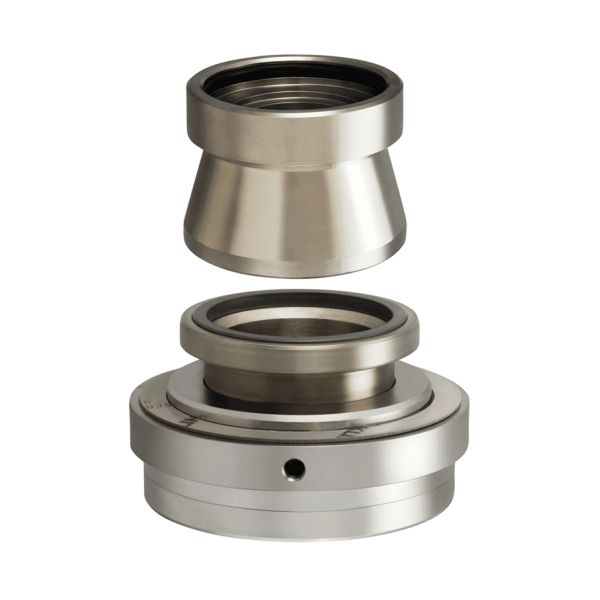

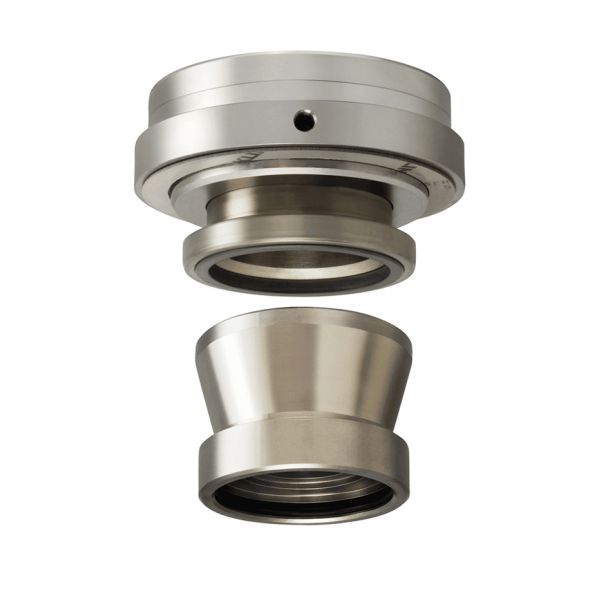

Huhnseal Type BF-AP Balanced Single Cartridge Mechanical Seal for ABS Scanpump Pumps

Cartridge Mechanical Seal

BF-AP

Balanced single cartridge seal equipped with flush

Huhnseal BF-AP is a balanced single cartridge seal equipped with flushing arrangement and two Grafoil rings.

This seals is specially designed for ABS Scanpump pumps.

Features and Benefits

  • Robust and balanced design
  • Undisturbed operation even with sudden pressure shocks
  • Springs are protected from the process media
  • Prevents clogging of seal
  • Shaft sleeve clamped to recess in shaft, no stop screws
  • Contributes to safe operation
  • Axial movement ±3mm
  • Necessary if shaft has large axial clearance Heat expansion of shaft does not impact on spring load
  • Large buffer volume
  • Provides for excellent cooling

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
Application Areas Pulp & Paper

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seal

Your Fast-Track Alternative to Huhnseal Type BF-AP

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
