Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
Specifications
Delivery Time :
15 working days
Stationary Ring Face :
TC/SiC
Model Number :
Type 2009
Supply Ability :
1000000/Month
Elastomers :
NBR/Viton/EPDM/PTFE/FFKM
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Springs :
SS304/SS316/HC-276
Metal Parts :
SS304/SS316/SS316L
MOQ :
1pc
Packaging Details :
Carton
Certification :
ISO9001
Place of Origin :
CHINA
Rotary Ring Face :
SiC/Carbon
Brand Name :
BESTSEAL
Description

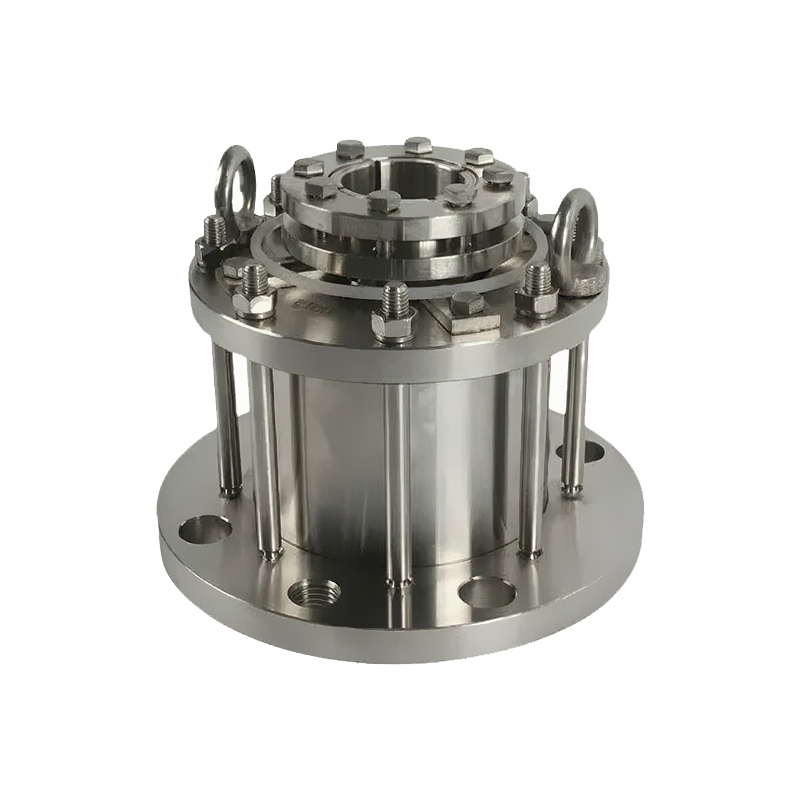

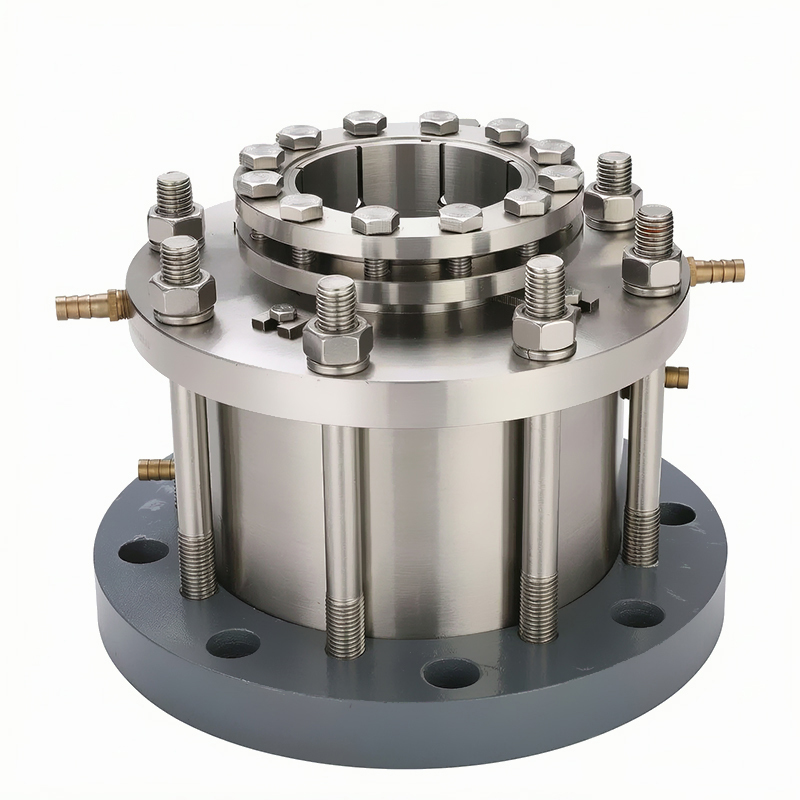

Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator


Mechanical Seals For Mixers

2009

Basic Features

  • Structure: Single End and Double End
  • Pressure: Low Pressure Mechanical Seals
  • Speed: Low Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Corrosion
  • Standard: HG21571-95
  • Model NO.: 2009
  • Balance: Unbalanced and Balanced
  • Specification: Inner Diameter: 30 mm to 220 mm

Operation Parameters

  • Pressure: - 0.1 ~ 0.6 MPa (when the pressure is bigger than 0.6 MPa, the pressure balancing device is needed and its connection size can be customized)
  • Temperature: - 20 ~ 150 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)
  • Linear Speed: 2 m/s or less

Materials

  • Rotary Ring Face: SiC/Carbon
  • Stationary Ring Face: TC/SiC
  • Elastomers: NBR/Viton/EPDM/PTFE/FFKM
  • Springs: SS304/SS316/HC-276
  • Metal Parts: SS304/SS316/SS316L

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Reaction Kettle Mechanical Seal

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days

Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator

Type 2009 Reaction Kettle Cartridge Mechanical Seal for Mixer Agitator
