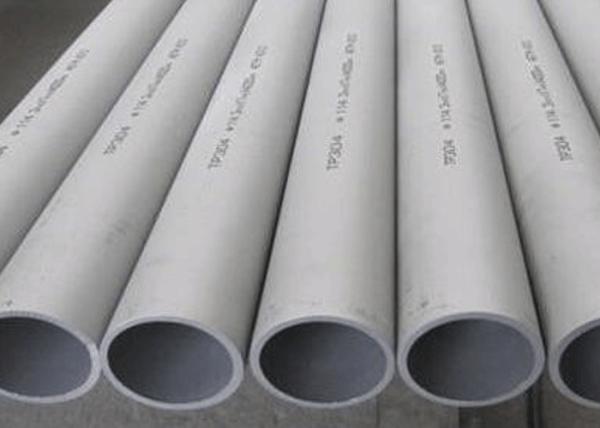

Seamless Cold Drawn SUS304 JIS G3448 Stainless Steel Pipe
Seamless Cold Drawn SUS304 JIS G3448 Stainless Steel Pipe
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Application :
Chemical
Standard :
ASTM
Type :
Seamless,Welded
Welding line type :
Seamless
Material :
Stainless steel
Technique :
Cold Drawn
Description

JIS G3448 Stainless Steel Pipe

Standard: JIS G3448 Austenitic Steel: SUS 304 TPD, SUS 315J1TPD, SUS315J2TPD, SUS316TPD OD: NPS 9.52MM - 318.5MM WT: 0.7MM - 3MM Length: As per requirement

Stainless steel pipes for general piping (JIS G 3448) are standardized for building equipment piping (water supply, hot water supply, drainage, cold/hot water, fire water, and other piping), and are thinner than conventional stainless steel pipes. It is characterized by four types: SUS304, SUS315J1, SUS315J2, and SUS316.
It is recommended that the operating pressure be set to 2MPa or less in view of the consistency of the pressure resistance performance of the joint system.

Standard: JIS G3448

Austenitic Steel: SUS 304 TPD, SUS 315J1TPD, SUS315J2TPD, SUS316TPD

OD: NPS 9.52MM - 318.5MM

WT: 0.7MM - 3MM

Length: As per requirement

Scope of application

Water supply, hot water supply, drainage, cold and hot water, fire fighting water and other piping

Type of symbol Use (reference)
SUS304TPD For normal water supply, hot water supply, drainage, cold/hot water, fire water, etc.
SUS315J1TPD For applications where corrosion resistance is required more than SUS304TPD due to water quality and environment, and
SUS315J2TPD for hot water piping where stress corrosion cracking resistance is required more than SUS316.
SUS316TPD Applications that require more corrosion resistance than SUS 304TPD due to water quality and environment.

Chemical composition

Type symbol C Si Mn P S Ni Cr Mo Cu
SUS304TPD 0.08 or less 1.00 or less 2.00 or less 0.045 or less 0.030 or less 8.00-10.50 18.00-20.00 ―A) ―A)
SUS315J1TPD 0.5-2.50 8.50-11.50 17.00-20.50 0.50-1.50 0.50-3.50
SUS315J2TPD 2.50-4.00 11.00-14.00 17.00-20.50 0.50-1.50 0.50-3.50
SUS316TPD 1.00 or less 10.00-14.00 16.00-18.00 2.00-3.00 ―A)

Outer diameter, thickness, dimensional tolerance and mass

Classification DN OD Outer diameter tolerance a) thickness Thickness tolerance Unit mass (kg / m)
Outer diameter b) Average outer diameter c) SUS 304 TPD SUS315J1TPD
SUS315J2TPD
SUS316TPD
Straight and coiled tubes 8 9.52 0 － 0.7 ± 0.12 0.154 0.155
10 12.7 -0.37 0.8 0.237 0.239
13 15.88 0.8 0.301 0.303
20 22.22 1 0.529 0.532
Straight pipe 25 28.58 1 0.687 0.691
30 34 ± 0.34 ± 0.20 1.2 0.98 0.987
40 42.7 ± 0.43 1.24 1.25
50 48.6 ± 0.49 ± 0.25 1.42 1.43
60 60.5 ± 0.60 1.5 ± 0.15 2.2 2.22
75 76.3 ± 1% ± 0.5% 2.79 2.81
80 89.1 2 ± 0.30 4.34 4.37
100 114.3 5.59 5.63
125 139.8 6.87 6.91
150 165.2 3 ± 0.40 12.1 12.2
200 216.3 15.9 16
250 267.4 19.8 19.9
300 318.5 23.6 23.7

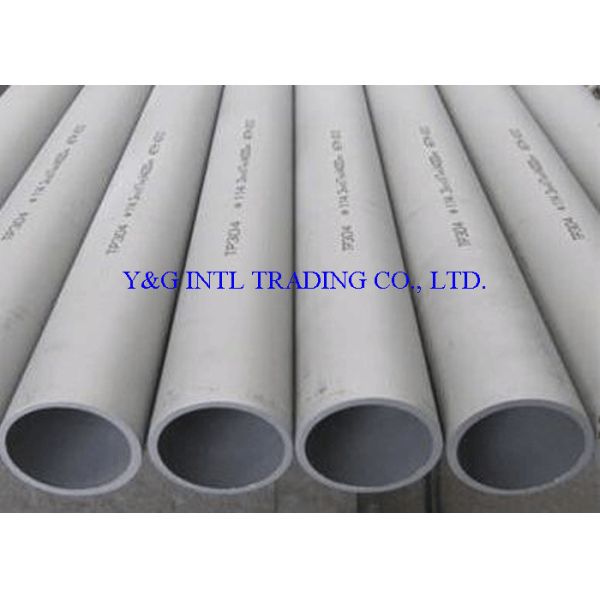

Seamless Cold Drawn SUS304 JIS G3448 Stainless Steel Pipe
