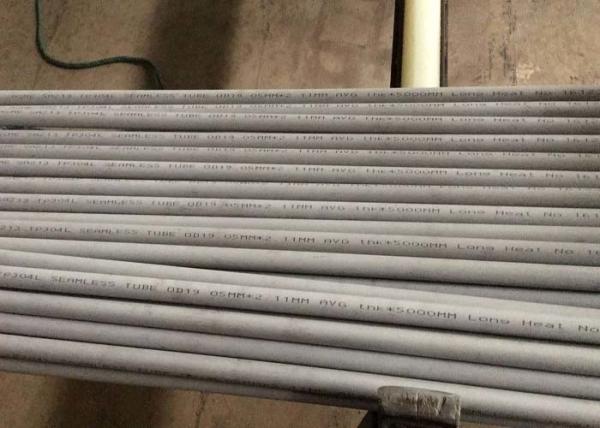

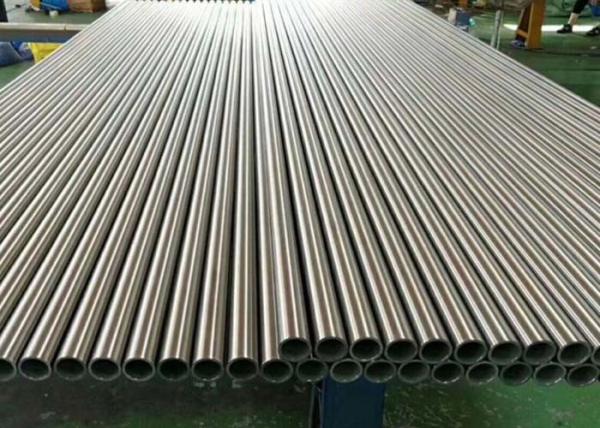

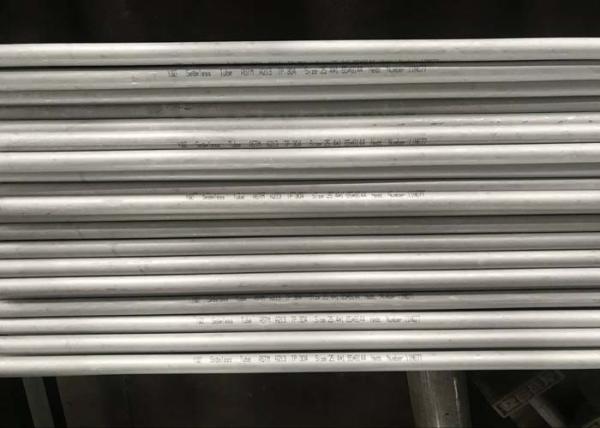

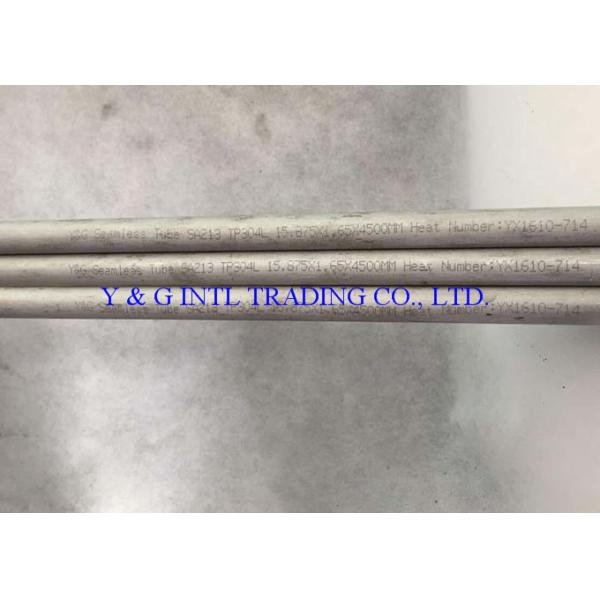

1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
1.65~2.11mm Thickness Stainless Steel Tubing ASME SA213 TP304L TP304 For Gas Industry
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Price :
Negotiable
Material :
TP304, 304L, 316H, TP316L...
Standard :
A213/SA213
Type :
Seamless
OD :
12.7mm~203.2mm
Wall Thickness :
1.65~2.11mm
Application :
Heat Exchanger,Marine Equipments
Surface Treatment :
Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting
Delivery Status :
Annealed, normalized, normalized+Tempered, etc
Description

ASME SA213 TP304L TP304 TP316L TP316 Stainless Steel Tubing 19.05 * 2.11 * 1905mm 25.4 * 1.65 * 9144mm

Product Standard: ASME SA213
Main steel grades: TP316H TP316 TP316L TP304 TP304L etc

Application:

1. Heat Exchangers, Condensers & Pressure Vessels
2. Chemical & Petrochemical
3. Gas Industry
4. Power Generation
5. Pressure Vessels
6. Marine Equipments
7. Food & Beverage Processing
8. Automotive
9. Pulp & Paper

304 is the standard '18/8' stainless and known to be the most versatile and most widely used stainless steel. It is chosen for its suitability for use in highly corrosive environments, resistance to chromium carbide precipitation, high formability and high weldability. 304L grade is an extra low carbon version of 304 which offers additional resistance to carbide precipitation during welding, therefore eliminating the need for post weld annealing in most cases. Applications include kitchen equipment, welded components of chemical, textile, pharmaceutical and paper processing equipment, cosmetic automotive trim, air bag inflator tubes, automotive and truck exhaust components.

Chemical Composition & Mechanical Properties:

Grade C Mn Si P S Cr Mo Ni N
304 min.max. -0.08 -2.0 -0.75 -0.045 -0.03 18.0-20.0 - 8.0--10.5 -0.10
304L min.max. -0.030 -2.0 -0.75 -0.045 -0.03 18.0-20.0 - 8.0--12.0 -0.10
304H min.max. 0.04-0.10 -2.0 -0.75 -0.045 -0.03 18.0-20.0 - 8.0--10.5 -

Grade Tensile Strength(MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201
304L 485 170 40 92 201
304H 515 205 40 92 201
304H also has a requirement for a grain size of ASTM No 7 or coarser.

Mark: As required.

Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.

Delivery status: Annealed,Pickled.

Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.

Packing: Exporting package/wooden box /as requirement.
