ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
Specifications
Brand Name :
Y & G
MOQ :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
8000MT/Month
Delivery Time :
25-35 days
Packaging Details :
Exporting package/wooden box / per customers’ requirement
Price :
Negotiable
Material :
309,321,347,304L, 316,304,316L...
Standard :
A213,SA312,A269, JIS G3459
Type :
Seamless
OD :
0.5mm~6mm
Wall Thickness :
0.02~2mm
Application :
Gas and liquid lines etc
Surface Treatment :
Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting
Delivery Status :
Annealed, normalized, normalized+Tempered, etc
Description

ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length

Product Standard: ASTM A213, ASTM A-269, DIN 17458 CLASS 1,DIN 2462-1, EN 10216-5

Main steel grades: 304, 304L, 316, 316L etc

Application:

1. Gas and liquid lines

2. Medical instruments (hypodermic needle)

3. Chromatography

4. Measurement in remote thermometer systems (with or without compensation)

304 is the standard '18/8' stainless and known to be the most versatile and most widely used stainless steel. It is chosen for its suitability for use in highly corrosive environments, resistance to chromium carbide precipitation, high formability and high weldability. 304L grade is an extra low carbon version of 304 which offers additional resistance to carbide precipitation during welding, therefore eliminating the need for post weld annealing in most cases. Applications include kitchen equipment, welded components of chemical, textile, pharmaceutical and paper processing equipment, cosmetic automotive trim, air bag inflator tubes, automotive and truck exhaust components.

Chemical Composition & Mechanical Properties:

Grade C Mn Si P S Cr Mo Ni N
304 min.max. -0.08 -2.0 -0.75 -0.045 -0.03 18.0-20.0 - 8.0--10.5 -0.10
304L min.max. -0.030 -2.0 -0.75 -0.045 -0.03 18.0-20.0 - 8.0--12.0 -0.10
304H min.max. 0.04-0.10 -2.0 -0.75 -0.045 -0.03 18.0-20.0 - 8.0--10.5 -

Grade Tensile Strength(MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201
304L 485 170 40 92 201
304H 515 205 40 92 201
304H also has a requirement for a grain size of ASTM No 7 or coarser.

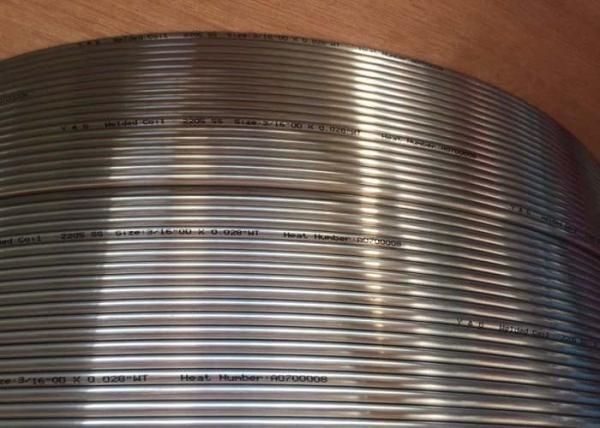

Mark: As required.

Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.

Delivery status: Annealed,Pickled.

Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.

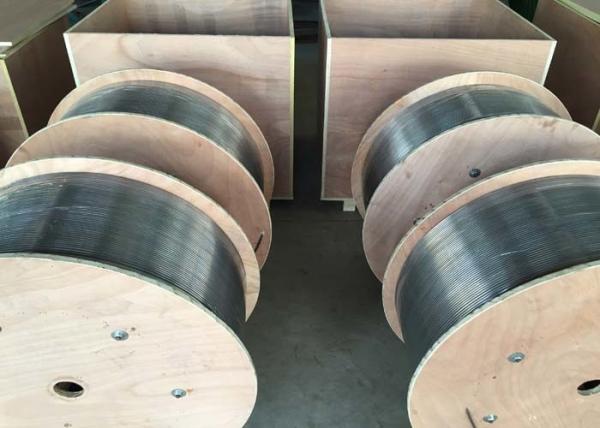

Packing: Exporting package/wooden box /as requirement.

ASTM A213 TP316L Stainless Steel Tubing 0.5mm~6mm OD With Super Length
