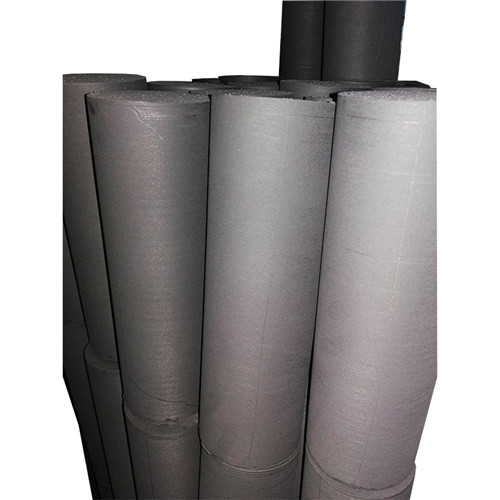

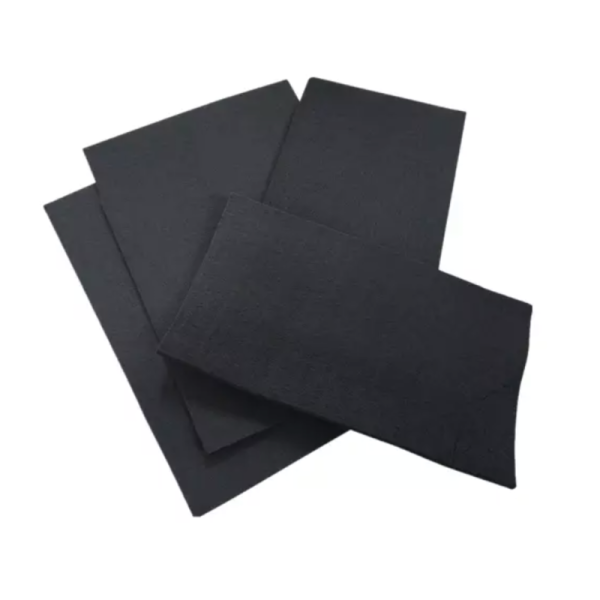

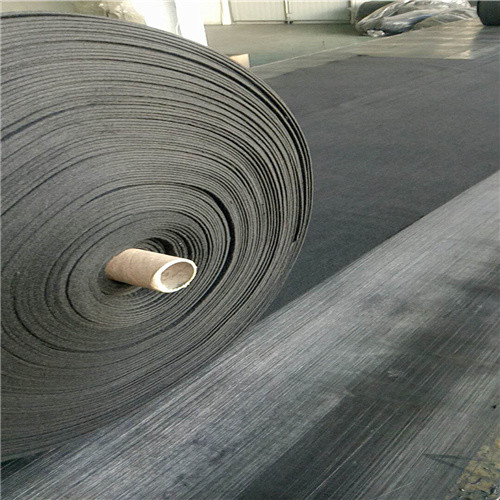

PAN Electrical Conductive 10mm Carbon Graphite Felt
PAN Electrical Conductive 10mm Carbon Graphite Felt
PAN Electrical Conductive 10mm Carbon Graphite Felt
PAN Electrical Conductive 10mm Carbon Graphite Felt
Specifications
Brand Name :
SGI-GRAPHITES
Place of Origin :
shanghai
Price :
negotiable
Model Number :
Customized products without models
Certification :
ISO , CE
MOQ :
10pcs
Supply Ability :
100 Roll/Rolls per Month
Delivery Time :
10-25 working day
Packaging Details :
wodden cartons or meet customers' requirements
Application :
metallurgy
Chemical Composition :
C 99%
Material :
PAN graphite felt
Bulk density :
0.1-0.15
Service Temperature :
1800-2600℃
Description

The graphite felt is normally classified into asphaltic based graphite felt, PAN based graphite felt &rayon-based graphite felt. The mainly application is electric conduction in the photovoltaic industry, as the heat retaining material, thermal insulation material for the smelting furnace and vacuum furnace, and in chemical industry it could be the filtration material.

Product Application

Heat insulation materials
Electrical elements
Absorptive materials
Reinforcing structure for C/C composite components and other products .

Main Features

Low ash content / High carbon content / Low gas evolution
Excellent heat insulation / Low thermal conductivity
Long life time / Good anticorrosion / High oxidation resistance
Easy Handling / Good Strength

Normal dimension

Specification PAN based graphite felt Rayon-based graphite felt

Length

 ≤25m ≤30m

Width

 ≤1.2m ≤1.35m
Thickness 1-10mm 4-8
Material index

Item PAN based graphite felt Rayon-based graphite felt

Bulk density

g/cm3

 0.1-0.15 0.05-0.15

Carbon content

%

 ≥99 ≥99

Ash

%

 0.05-0.1 0.5-0.6

Strength

N⊥

 60-70 5-10
Thermal conductivityW/m.k 0.06(34.6℃)

The graphite felt is formed after above 2000℃ high temperature treatment under inert gas or vacuum.
