Specifications
Brand Name :
SGI-GRAPHITES
Place of Origin :
shanghai
Price :
negotiable
Model Number :
Customized products without models
Certification :
ISO , CE
MOQ :
10pcs
Supply Ability :
1000pcs per day
Delivery Time :
10-25 working day
Packaging Details :
wodden cartons or meet customers' requirements
Application :
Induction furnace
Specification :
L3000*W1000mm(customizable)
Carbon Content :
High-Carbon
Forming Way :
Isostatic Graphite
Crystal Morphology :
Flake Graphite
Type :
Graphite Sheets
Description

Carbon Fiber Felt As Thermal Insulation Graphite Felt Activated Carbon Fiber Felt

Product Description

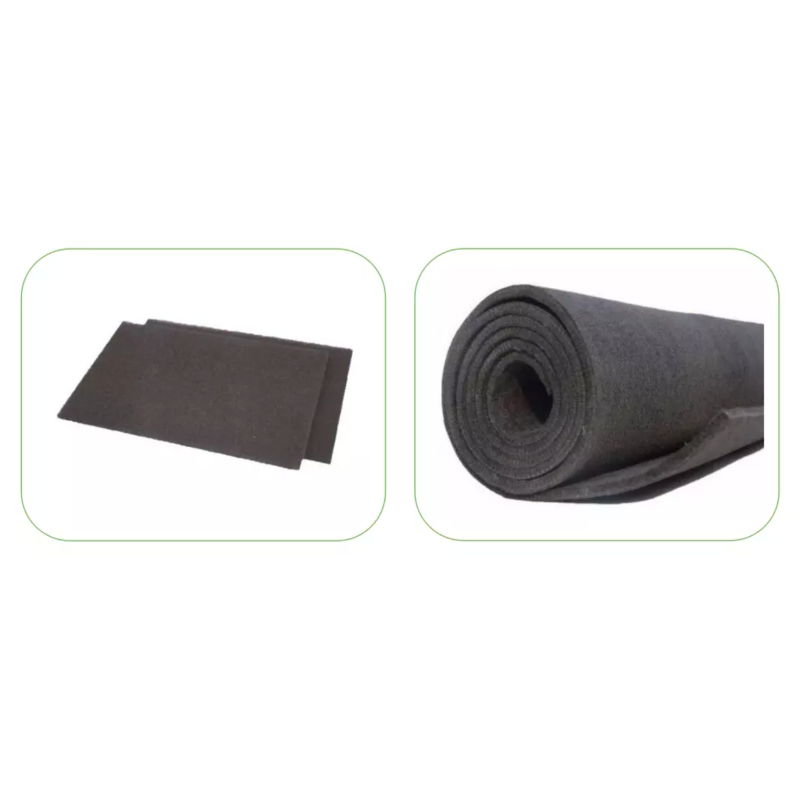

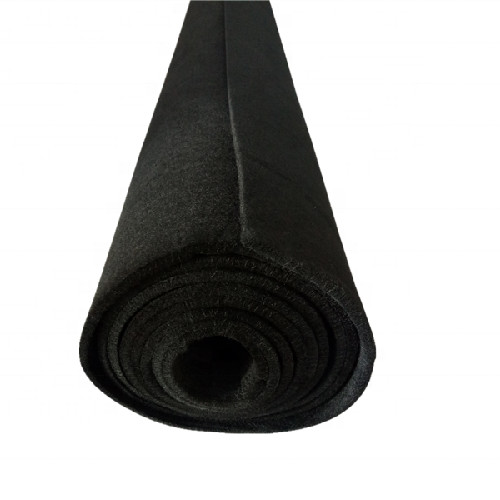

The carbon fiber felt in our company is dedicated to heat preservation, fire-resistant, etc. It has many advantages like high heat resistance, good heat insulation, easy to cut, cheap, etc. So far, it has been applied by lots of factories and won high praise from customers. The thickness of the hard felt are 20mm, 30mm, 40mm, 50mm, 60mm etc. Graphite film, graphite cloth, C/C, SIC can be covered by its surface.

Mainly applied to heat preservation and fire-resistant of high temperature furnace, like single crystal furnace, carbonization furnace, quartz furnace, vacuum furnace, induction furnace, high-frequency furnace and reactor heat balance, heat treatment furnace, sintering furnace, welding furnaces, pressure furnace etc.

Technical Parameters
Qualification
Volume Density (g/cm3) 0.25-0.30
Tensile Strength (MPa) 2.5 (Deformation 5%)
Thermal Of Resistance (Ohm.cm) 0.18-0.22
Carbon Content (%) ≥99.4
Coefficient Of Resistance (Ohm.cm) 0.18-0.22
Thermal Conductivity (W/m.k) 0.15-0.25 (25℃); 0.40-0.45 (1400℃)
Ash Content (%) ≤0.5
Rate Of Gas Absorption (%) ≤1.6
Purification Level 99.3
Processing Temperature (℃) 1450-2000
Specification
Plate (Max) 1500*1800
Thickness (mm)-Plate 20-200
Tube (Max) 1500*2000
Thickness (mm)-Tube 20-150
Squre Tube (Max) 1500*1200*2000
Thickness (mm)-Square tube 60-120
Application Temperature (℃) 1250-2600
