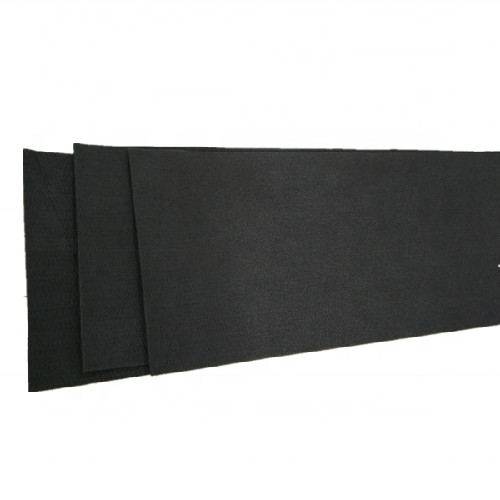

Soft 5mm Carbon Graphite Felt Heat Insulation
Soft 5mm Carbon Graphite Felt Heat Insulation
Specifications
Brand Name :
SGI-GRAPHITES
Place of Origin :
shanghai
Price :
negotiable
Model Number :
3mm 5mm 8mm 10mm
Certification :
ISO , CE
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
10-25 working day
Packaging Details :
wodden cartons or meet customers' requirements
Application :
High temperature industry furnaces
Material :
high pure carbon fiber
Feature :
High temperature resistance
C Content (%) :
98%-99%
Sample :
available
Description

Heat Insulation Soft Carbon Graphite fiber Felt

Product Description

Polyacrylonitrile based carbon fiber felt

Polyacrylonitrile base carbon felt is light in quality, small in specific heat capacity, soft in texture, good in adiathermancy and convenient in operation, which can save great energy. Therefore, thermal insulation of the polyacrylonitrile base is extremely superior in vacuum or inert atmosphere, in particular, performance of polyacrylonitrile base is stable under high temperature condition, and it is the excellent thermal insulation materials for vacuum furnaces
Specification
Item
Index
Type
RCF-CARBON FELT
RCF-GRAPHITE FELT
PAN-CARBON FIBER FELT
PAN-GRAPHITE FIBER FELT
Material
RCF
RCF
PAN-CF
PAN-CF
Bulk density g/cm3
01--0.12
0.08--0.1
014--0.17
0.12--0.14
Carbon %
min 98.5
min 99
min 98.5
min 99
Thermal; conductivity (1150℃) (w/m.k0)
0.08--0.15
0.06--0.14
0.12--0.18
0.08--0.14
Tensile Strength Mpa
0.13
0.10
0.15
0.14
Crushing stress at 10% compression (N/CM2)
6---10
5--8
8--12
8--10
ash %
max 0.05
max 0.005
max 0.05
max 0.005
Processing temperature ℃
1200
2500
1200
2500
Operating condition-Under vacuum ℃
min 1500
min 2200
min 1500
min 2200
Operating condition-Under inert atmosphere ℃
min 1800
min 2500
min 1800
min 2500
Operating condition-Under air ℃
max 400
max 400
max 400
max 400
Spec-length m
16--18
 9--12

Polyacrylonitrile based carbon fiber felt

polyacrylonitrie base plumbago felt is formed by subjecting the high quality polyacrylonitrie base carbon felt to pyrographitetreatment. it is light quality, good in flexibility, high carbon content, high temperature reisistant, without volatilization under high temperature, corrosion esistant and small in heat conductivity coefficient and high in shape retention. it is fine heat insulator for polysilicon and monocrystalline silicon
