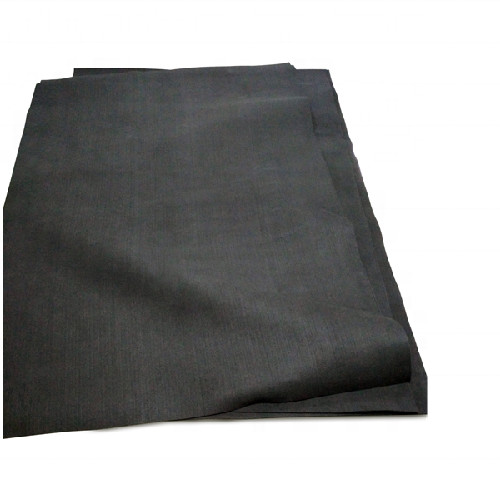

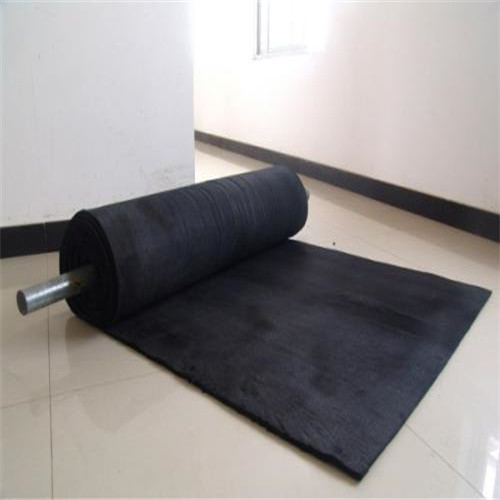

5mm PAN Based Carbon Fiber Felt For Vanadium Battery
5mm PAN Based Carbon Fiber Felt For Vanadium Battery
5mm PAN Based Carbon Fiber Felt For Vanadium Battery
5mm PAN Based Carbon Fiber Felt For Vanadium Battery
Specifications
Brand Name :
SGI-GRAPHITES
Place of Origin :
shanghai
Price :
negotiable
Model Number :
Customized products without models
Certification :
ISO , CE
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
10-25 working day
Packaging Details :
wodden cartons or meet customers' requirements
Application :
battery cell, battery cell
Chemical Composition :
carbon felt
Color :
Black
Grade :
Experimental Grade Weight:
Weight :
420gsm-450gsm
Materia :
carbon fiber
Description

5mm PAN-based Carbon Fiber Felt Graphite Felt for Vanadium battery

The graphite felt is normally classified into asphaltic based graphite felt, PAN based graphite felt &rayon-based graphite felt. The mainly application is electric conduction in the photovoltaic industry, as the heat retaining material, thermal insulation material for the smelting furnace and vacuum furnace, and in chemical industry it could be the filtration material.

Physical and chemical index

ITEM
INDEX
Products
Graphite fiber felt
Carbon fiber felt
Application
Electric Conductivity
thermal insulation
Material
PAN
PAN
Bulk density (g/cm3)
0.12~0.14
0.14~0.17
Carbon (%)
≥99
≥98.5
Fhermal conductivity(1150℃)W/mk
0.08~0.14
0.12~0.18
Tensile Strength (MPa)
0.14
0.15
Crushing stress at 10% compression ( N/cm2)
8~10
8~12
Ash ( %)
≤0.005
≤0.05
Processing temperature (℃)
2500
1200
speciafication
Length(m)
25
25
Wide (mm)
1000-1300
1000-1300
High (mm)
1.2.3.5.6.8.10
1.2.3.5.6.8.10
Operating
Condition
in the air(℃)
≤400
≤400
in the vacuum(℃)
≥2200
≥1500
In the inert atmosphere (℃)
≥2800
≥180
The polypropylene cyano is the major raw material. The polypropylene cyano carbon felt or rayon-based carbon felt is cuttd into the specific dimension, and loaded into the graphite vessel after rolled. The graphite vessel will be setted in the high temperature furnace, protected in vacuum or by high pure inert gas. It's heated up to 2200-2500℃ with the heating rate 100-300℃/h, then get the final product after naturally cooled to 100℃ .

Packaging detail:

Packaging detail: veneer cases or wooden cases or according to customers’ request to make the seaworthy packing

Delivery detail: according to customers’ request, usually 5-7 days

FAQ

1.How can i get a free sample?
yes. the sample can be free of charge, But the shipping expenses should be paid by the customer. the sample will be issued within 3 days. custom samples take more time

2.Do you make custom order?
yes ,OEM service is avaliable for us. we can produce as customers' requirement

3.What's your MOQ?
1.White and black are 0.5 Ton
2. Other corlors are 1 Ton
3. Small trial order is acceptable

4.May i make mix order ?
yes, you can make mix order with stock items

5.what's the payment term ?
T/T , L/C at sight
