Auto 2 In 1 Glass Bottle Sparkling Drink Wine Filling Capping Machine
Auto 2 In 1 Glass Bottle Sparkling Drink Wine Filling Capping Machine
Auto 2 In 1 Glass Bottle Sparkling Drink Wine Filling Capping Machine
Auto 2 In 1 Glass Bottle Sparkling Drink Wine Filling Capping Machine
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NPXGF18-6
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15-20 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food Stage Stainless Steel
Control :
PLC & Touch Screen Control
Capacity :
3000-5000BPH@330ml
Suitable Bottle :
Glass Bottle
Suitable Bottle Height :
160-340mm
Suitable Bottle Diameter :
50-100mm
Function :
Washing Filling Capping
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

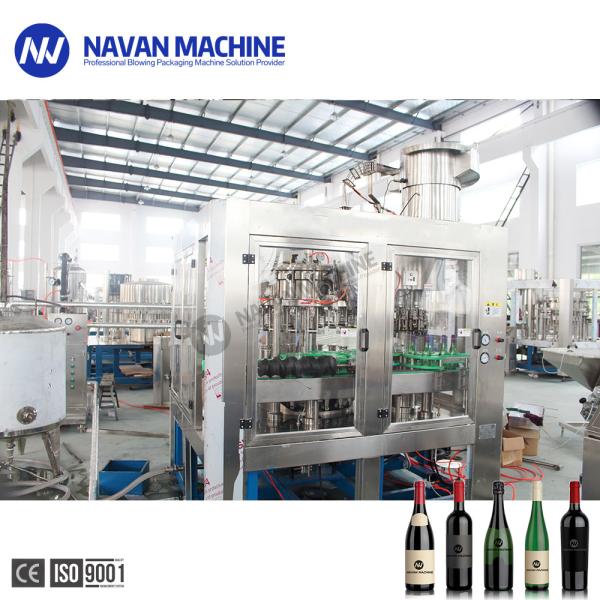

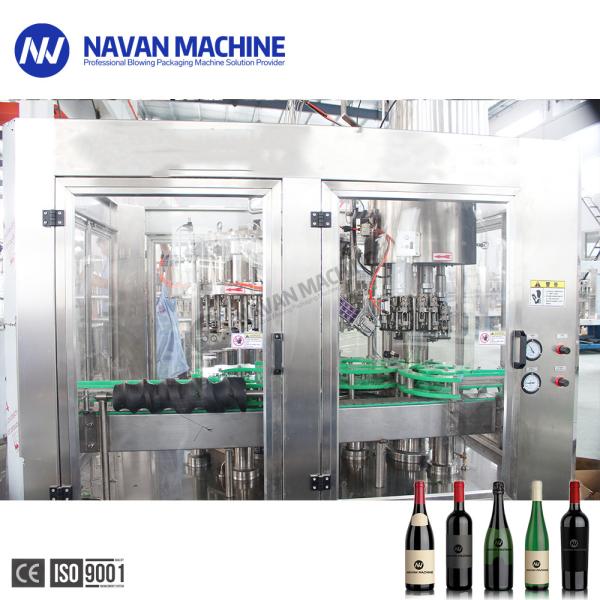

Auto 2-In-1 Glass Bottle Sparkling Drink Wine Filling Capping Machine

For the centering guide of our NPXGF glass bottle filling capping 2-in-1 unit, we adopt double guide-bar mechanism, with the function of pre-covering which allows stable and reliable bottle transferring.The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.

Product Paramenters:
Automatic Glass Bottle Carbonated Drink Filling Machine for Cola,Soda Water etc

Main Technical parameters
Model NPXGF18-6
Produciton capacity(330ml) 3000-5000
Heads of Filling & Capping 18-6
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Isobaric filling (twice vacuumized )
Filling temperature (℃) 0~5
Filling pressure(MPa) 0.15~ 0.5

Details of the Machine
- Glass Bottle Filling

304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing

Auto 2 In 1 Glass Bottle Sparkling Drink Wine Filling Capping Machine
-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .
Auto 2 In 1 Glass Bottle Sparkling Drink Wine Filling Capping Machine

Zhangjiagang Navan Industrial Co., Ltd is a company which has specifically manufactured beverage machine for more than 10 years. Our company holds the right of independent import & export, and enjoys a good reputation in national and aboard markets.
Our company is specialized in manufacturing carbonated drink production line, mineral water filling labeling and packing machine, pure water filling production line, juice or tea drink hot filling production line, milk filling and packing production line, edible oil filling and capping machine, wine production line. The drink can be PET bottled, 5 gallon barreled, easy open canned, glass bottled and so on.
