Full Automatic Alcoholic Drink Wine Filling Bottling Machine For Glass Bottle
Full Automatic Alcoholic Drink Wine Filling Bottling Machine For Glass Bottle
Full Automatic Alcoholic Drink Wine Filling Bottling Machine For Glass Bottle
Full Automatic Alcoholic Drink Wine Filling Bottling Machine For Glass Bottle
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NXGF32-32-10
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15-25 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food stage stainless steel
Control :
PLC & touch screen control
Capacity :
12000-13000BPH@330ml
Suitable Bottle :
Glass Bottle
Suitable Bottle Height :
160-340mm
Suitable Bottle Diameter :
50-100mm
Function :
Washing Filling Capping
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

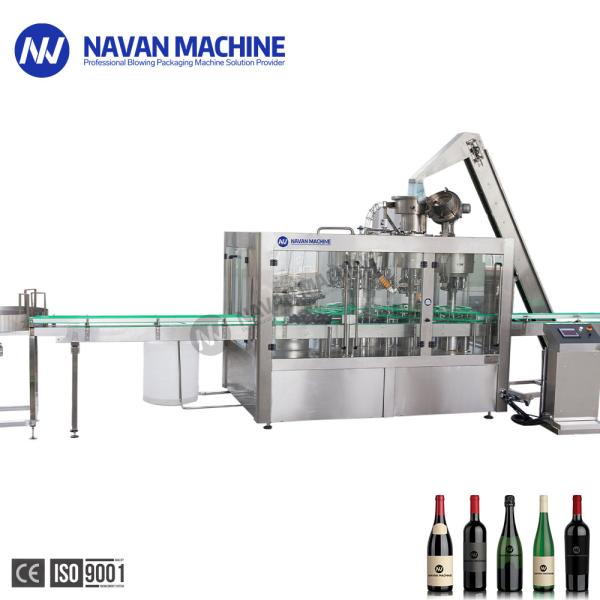

Full Automatic Alcoholic Drink Wine Filling Bottling Machine For Glass Bottle
This NXGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.


Product Paramenters:
Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc

Main Technical parameters
Model NXGF32-32-10
Produciton capacity(330ml) 12000-13000
Heads of Rinsing Filling & Capping 32-32-10
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Micro negative pressure filling / gravity filling
Filling temperature (℃) 0~30 or customzied
Filling pressure(MPa) 0.15~ 0.5
Main motor power(kw) 7.5
Total power(kw) 7.68
Overall dimensions(mm)

4430x2880x3200
Weight(kg) 6800


Product Description:
1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use

Equipment Type Automatic
Bottle Type

Glass round or square bottle
Volume 200 - 2000ml
Bottle diameter 50-115mm

Bottle height 160-340mm
Output <bph> up to 20000 BPH
Your product wine fill/vodka fill/fruit wine and so on
Certificates CE / SGS / ISO 9001

2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Full Automatic Alcoholic Drink Wine Filling Bottling Machine For Glass Bottle
3 - Glass Bottle Washing.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Full Automatic Alcoholic Drink Wine Filling Bottling Machine For Glass Bottle
4 - Glass Bottle Filling
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Full Automatic Alcoholic Drink Wine Filling Bottling Machine For Glass Bottle
5-Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
Full Automatic Alcoholic Drink Wine Filling Bottling Machine For Glass Bottle
