Automatic Glass Bottle Aluminium Cap Washing Filling Capping Machine For Wine
Automatic Glass Bottle Aluminium Cap Washing Filling Capping Machine For Wine
Automatic Glass Bottle Aluminium Cap Washing Filling Capping Machine For Wine
Automatic Glass Bottle Aluminium Cap Washing Filling Capping Machine For Wine
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NXGF50-50-15
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15-25 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food stage stainless steel
Control :
PLC & touch screen control
Capacity :
18000-19000BPH@330ml
Suitable Bottle :
Glass Bottle
Suitable Bottle Height :
160-340mm
Suitable Bottle Diameter :
50-100mm
Function :
Washing Filling Capping
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

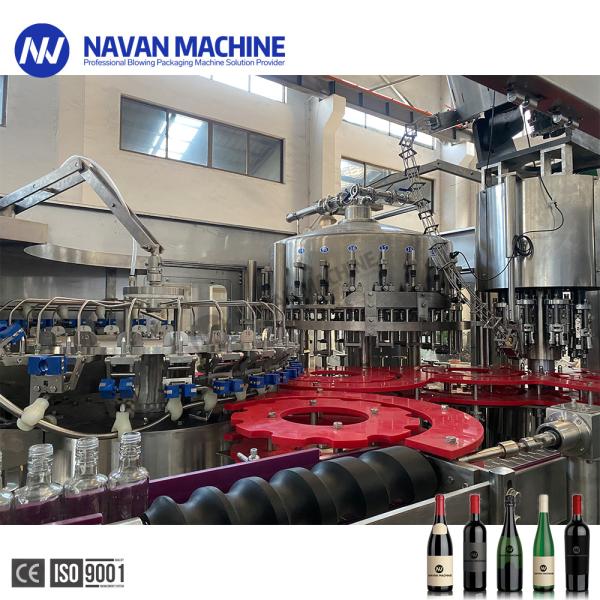

Automatic Glass Bottle Aluminium Cap Washing Filling Capping Machine For Wine
This automatic wine filling machine is used to produce glass bottled wine, water and non-gas beverage etc.

Product Paramenters:
Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc

Main Technical parameters
ModelNXGF50-50-15
Produciton capacity(330ml)18000-19000
Heads of Rinsing Filling & Capping50-50-15
Suitable bottle height (mm)160-340
Suitable bottle diameter (mm)50 ~ 100
Rinsing Water pressure (MPa)0.25 ~ 0.3
Filling wayMicro negative pressure filling / gravity filling
Filling temperature (℃)0~30 or customzied
Filling pressure(MPa)0.15~ 0.5
Main motor power(kw)11
Total power(kw)11.5
Overall dimensions(mm)

4987x3846x3200

Weight(kg)11000


Product Description:
1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use

Equipment TypeAutomatic
Bottle Type

Glass round or square bottle
Volume 200 - 2000ml
Bottle diameter 50-115mm

Bottle height 160-340mm
Output <bph>up to 20000 BPH
Your productwine fill/vodka fill/fruit wine and so on
CertificatesCE / SGS / ISO 9001

2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Automatic Glass Bottle Aluminium Cap Washing Filling Capping Machine For Wine
3 - Glass Bottle Washing.
The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water.
Automatic Glass Bottle Aluminium Cap Washing Filling Capping Machine For Wine
4 - Glass Bottle Filling
The filling valve opens and begins filling when it moves down and touches the bottle neck, the filling valve move up and leave the bottle neck when it finishes filling.
Automatic Glass Bottle Aluminium Cap Washing Filling Capping Machine For Wine
5-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Automatic Glass Bottle Aluminium Cap Washing Filling Capping Machine For Wine
