Automatic Glass Bottled Non Carbonated Drink Wine Filling Machine
Automatic Glass Bottled Non Carbonated Drink Wine Filling Machine
Automatic Glass Bottled Non Carbonated Drink Wine Filling Machine
Automatic Glass Bottled Non Carbonated Drink Wine Filling Machine
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NXGF18-18-6
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
14,500USD
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Material :
Food stage stainless steel
Control :
PLC & touch screen control
Capacity :
4500-5000BPH@330ml
Suitable Bottle :
Glass Bottle
Suitable Bottle Height :
160-340mm
Suitable Bottle Diameter :
50-100mm
Function :
Washing Filling Capping
After-sales Service Provided :
Engineers Available To Service Overseas/Online Support
Description

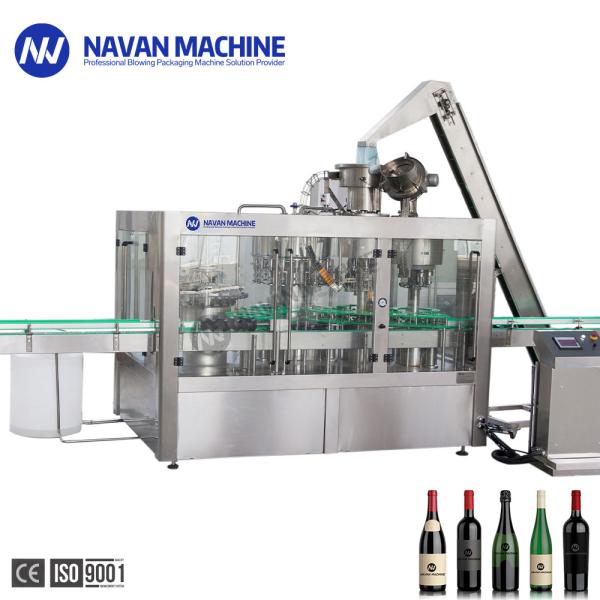

Automatic Glass Bottled Non-Carbonated Drink Wine Filling Machine

Product Paramenters:

Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc

Main Technical parameters
Model NXGF18-18-6
Produciton capacity(330ml) 4500-5000
Heads of Rinsing Filling & Capping 18-18-6
Suitable bottle height (mm) 160-340
Suitable bottle diameter (mm) 50 ~ 100
Rinsing Water pressure (MPa) 0.25 ~ 0.3
Filling way Micro negative pressure filling / gravity filling
Filling temperature (℃) 0~30 or customzied
Filling pressure(MPa) 0.15~ 0.5
Main motor power(kw) 3
Total power(kw) 3.18
Overall dimensions(mm) 3012x2012x3260
Weight(kg) 3800

Product Description:

1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]

1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use

Equipment Type Automatic
Bottle Type

Glass round or square bottle

Volume 200 - 2000ml

Bottle diameter 50-115mm

Bottle height 160-340mm
Output <bph> up to 20000 BPH
Your product wine fill/vodka fill/fruit wine and so on
Certificates CE / SGS / ISO 9001

2 - Glass bottle Separating..

- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine

Automatic Glass Bottled Non Carbonated Drink Wine Filling Machine

3 - Glass Bottle Washing.

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

Automatic Glass Bottled Non Carbonated Drink Wine Filling Machine

4 - Glass Bottle Filling

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump

- Efficient spray nozzle rinse thoroughly and save water for flushing

Automatic Glass Bottled Non Carbonated Drink Wine Filling Machine

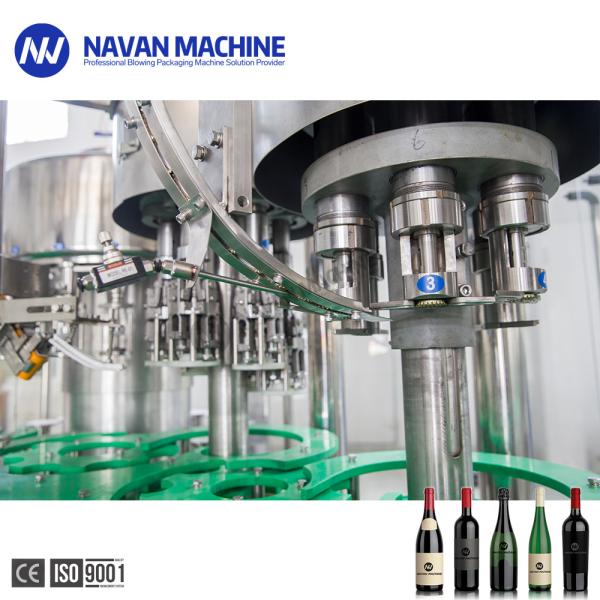

5-Capping Part

The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head

Automatic Glass Bottled Non Carbonated Drink Wine Filling Machine
