5C×6mm2+1C×0.75mm2 Electric Vehicle Charging Cable 450V AC 750V AC
5C×6mm2+1C×0.75mm2 Electric Vehicle Charging Cable 450V AC 750V AC
5C×6mm2+1C×0.75mm2 Electric Vehicle Charging Cable 450V AC 750V AC
5C×6mm2+1C×0.75mm2 Electric Vehicle Charging Cable 450V AC 750V AC
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
450/750V AC
SP :
1803192
Certification :
RoHS Reach
Insulation :
TPE
Model Number :
CQC
Conductor :
Bare Copper Stranded
Price :
To be negotiated
Temperature :
-40~105℃
Supply Ability :
100km per day
Packing :
Packed in rolls or reels
Brand Name :
Shineplus
Name :
Electric Vehicle Charging Cable
Payment Terms :
T/T,L/C,Western Union
Application :
EV Charging
Place of Origin :
China
Jacket :
TPE
Packaging Details :
Packed in rolls or reels
Description

CQC 5C×6mm2+1C×0.75mm2 EV Charging Cable Bare Copper Stranded with TPE Insulation and TPE Jacket 450/750V AC

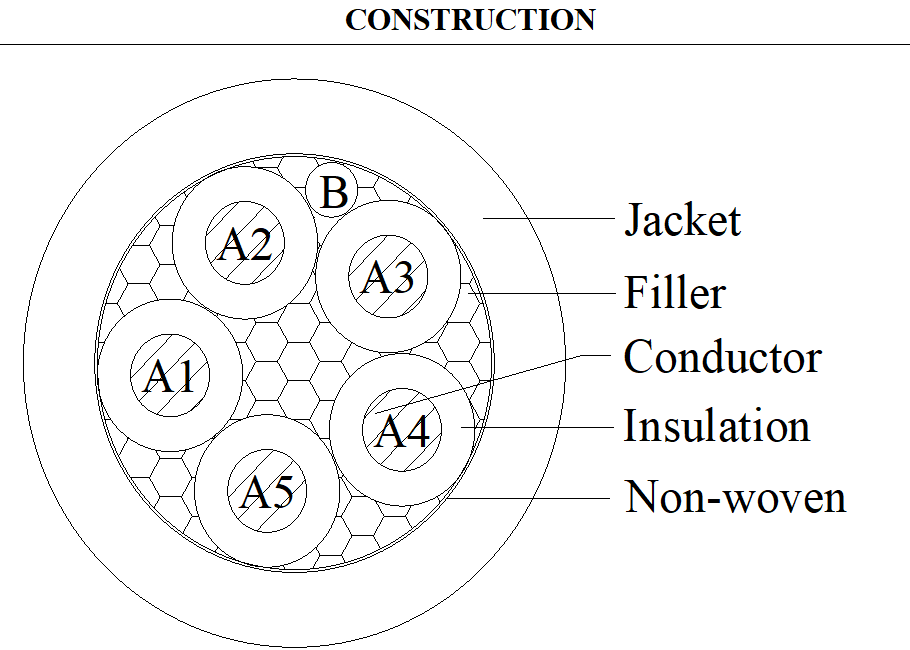

ITEM A :5C×6mm2 B : 1C×0.75mm2
CONDUCTOR Material Bare copper stranded
Size 189/0.20±0.008mm 42/0.15+200DKevlar
O.D.(Ref) 3.40mm 1.13mm
INSULATION Material TPE TPE
Nom. thickness 1.00mm 0.50mm
Min.thickness at any point 0.80mm 0.35mm
O.D. 5.50±0.20mm 2.50±0.15mm
CABLING Filler PP rope
Material Nonwoven tape
Assembly 5Cx6mm2+1Cx0.75mm2+W
JACKET Material TPE
Nom. thickness 2.50mm
Min.thickness at any point 2.03mm
O.D. 20.00±0.35mm

Product Description
Application:EV Charging

This Product is applicable for all kinds of electric vehicles,charging piles, power station, charging station.


Product character:
Tensile strength:≥10.0MPa

Elongation:≥250%
High temperature and pressure:(80±2℃×4h):≤50%
Percent of original tensile strength:±30%
Percent of original elongation: ±30%

Flame test:GB/T 18380.12

UV Resistance : 720h CQC1103-2015

Bending radius:Flexing 6×OD Flxed 5×OD


Technical data
Rated voltage:450/750V AC
Rated Temperature:-40~105℃
Max.conductor DC resistance(20℃):A: 3.3Ω/km B: 26Ω/km
Voltage withstand test:A: AC 3.5kV/15min B: AC 1.5kV/15min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
