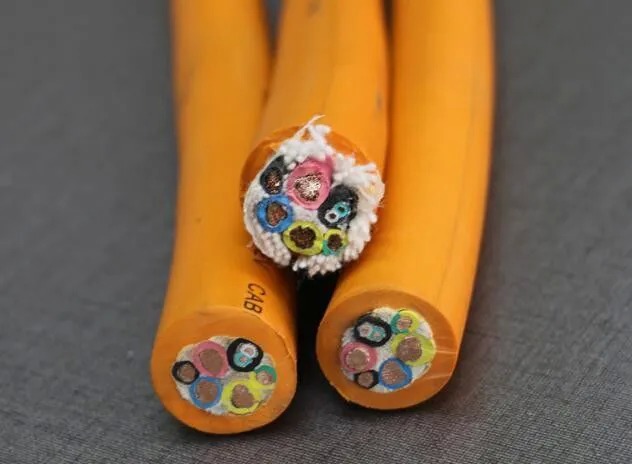

Custom Bare Copper Stranded EV Charging Cable With EVI-2 Insulation / EVM-1 Jacket
Custom Bare Copper Stranded EV Charging Cable With EVI-2 Insulation / EVM-1 Jacket
Custom Bare Copper Stranded EV Charging Cable With EVI-2 Insulation / EVM-1 Jacket
Custom Bare Copper Stranded EV Charging Cable With EVI-2 Insulation / EVM-1 Jacket
Specifications
MOQ :
1000m
Price :
To be negotiated
Insulation :
EVI-2
Packaging Details :
Packed in rolls or reels
Packing :
Packed In Reels
Temperature :
-40-90℃
Certification :
RoHS
Supply Ability :
100km per day
SP :
2500226
Payment Terms :
T/T,L/C,Western Union
Brand Name :
Shineplus
Voltage :
450/750V AC
Name :
EV Charging Cable
Conductor :
Bare Copper Stranded
Delivery Time :
3-4 Weeks
Place of Origin :
China
Jacket :
EVM-1
Model Number :
Customize
Application :
EV Charging Cable
Description

Custom Bare Copper Stranded EV Charging Cable with EVI-2 Insulation and EVM-1 Jacket for Electric Vehicles

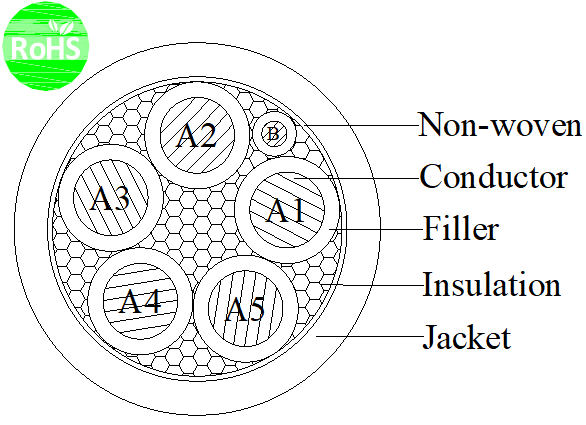

Construction
A:5C×4mm2 B:1C×0.5mm2
Conductor Bare copper stranded
Cross section 4mm2 0.50mm2
Construction 210/0.15mm+Tinsel+ Kevlar 28/0.15mm+Tinsel+ Kevlar
Strand Dia.(Ref.) 2.70mm 1.15mm
Insulation EVI-2
Nom.Thickness 0.70mm 0.40mm
Min.Thickness 0.53mm 0.30mm
Insulation Dia. 4.30±0.25mm 2.00±0.10mm
Insulation colour A1.brown A2.blue A3.black A4.gray A5.yellow/green B1.black
Filler PP rope
Tape Non woven
Assembly 5C×4mm2+1C×0.5mm2+W
Jacket EVM-1
Nom.Thickness 1.30mm
Min.Thickness 1.04mm
Outer Dia. 15.40±0.50mm
Colour per request

Product Description
Application:EV Charging
Product character:
Tensile strength:≥20MPa Elongation:≥300%
Aged condition:110±1℃×168h
Percent of original tensile strength:±30%
Percent of original elongation: ±30%

Insulation:EVI-2
Conductor : Bare copper stranded
Construction
Insulation: A1.brown A2.blue A3.black A4.gray A5.yellow/green B1.black
Jacket Color : per request

Technical data
Rated voltage:450/750V AC
Rated Temperature: -40-90℃
Max.conductor DC resistance(20℃):A:4.95Ω/km B:39Ω/km
Dielectric Strength AC:2.5kV/5min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
Flexible
