3C×12AWG+3C×22AWG Bared Copper Stranded Cable With TPE Insulation / TPE Jacket
3C×12AWG+3C×22AWG Bared Copper Stranded Cable With TPE Insulation / TPE Jacket
3C×12AWG+3C×22AWG Bared Copper Stranded Cable With TPE Insulation / TPE Jacket
3C×12AWG+3C×22AWG Bared Copper Stranded Cable With TPE Insulation / TPE Jacket
Specifications
MOQ :
1000m
Insulation :
TPE
Model Number :
UL EVJE
SP :
1602472
Price :
To be negotiated
Packing :
Packed in rolls or reels
Payment Terms :
T/T,L/C,Western Union
Delivery Time :
3-4 Weeks
Application :
EV Charging
Temperature :
-40~105℃
Name :
Copper Stranded Cable
Certification :
RoHS Reach
Place of Origin :
China
Supply Ability :
100km per day
Brand Name :
Shineplus
Jacket :
TPE
Conductor :
Bare Copper Stranded
Packaging Details :
Packed in rolls or reels
Voltage :
300V
Description

UL EVJE 3C×12AWG+3C×22AWG Bared Copper Stranded EV Charging Cable with TPE Insulation and TPE Jacket

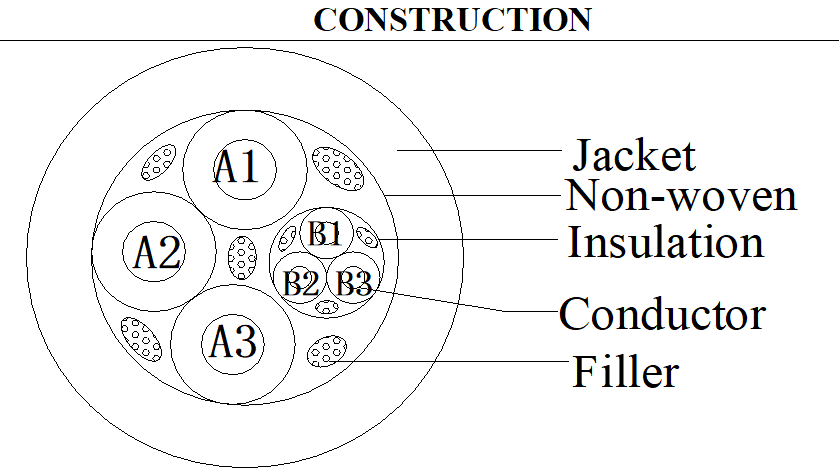

ITEM A:3C×12AWG B: 3C×22AWG
CONDUCTOR Material Bared Copper Stranded
Size 65/0.254±0.008mm 17/0.16±0.008mm
O.D.(Ref) 2.40mm 0.76mm
INSULATION Material TPE TPE
Min.average thickness 0.76mm 0.76mm
Min.thickness at any point 0.68mm 0.68mm
O.D. 4.10±0.20mm 2.40±0.10mm
CABLING-1 Material / Non-woven
Fillers / Optional
Assembly / 3C×22AWG+W
CABLING-2 Material Non-woven
Fillers PP rope (Optional)
Assembly 3C×12AWG+3C×22AWG
JACKET Material TPE
Min.average thickness 1.14mm
Min.thickness at any point 0.91mm
O.D. 13.50±0.40mm

Product Description
Application:EV Charging

This Product is applicable for all kinds of electric vehicles,charging piles, power station, charging station.


Product character:
Tensile strength:≥8.3MPa

Elongation:≥200%
Aged condition:136±1℃×168h
Percent of original tensile strength:±75%
Percent of original elongation: ±75%
VW-1

Technical data
Rated voltage:300V
Rated Temperature: -40-105℃
Max.conductor DC resistance(20℃):A:5.58Ω/km B:56.8Ω/km
Dielectric Strength AC:2.0kV/5min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
