2P×14AWG+1C×14AWG+2C×18AWG EV Charging Wire Bared Copper Stranded
2P×14AWG+1C×14AWG+2C×18AWG EV Charging Wire Bared Copper Stranded
2P×14AWG+1C×14AWG+2C×18AWG EV Charging Wire Bared Copper Stranded
2P×14AWG+1C×14AWG+2C×18AWG EV Charging Wire Bared Copper Stranded
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
600V
SP :
1804320
Certification :
RoHS Reach
Insulation :
TPE
Model Number :
UL EVE
Conductor :
Bare Copper Stranded
Payment Terms :
T/T,L/C,Western Union
Application :
EV Charging
Price :
To be negotiated
Temperature :
105℃
Supply Ability :
100km per day
Packing :
Packed in rolls or reels
Brand Name :
Shineplus
Name :
EV Charging Wire
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Jacket :
TPE
Description

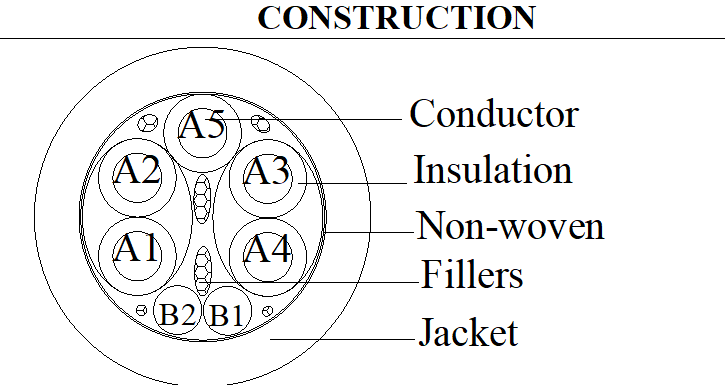

UL EVE 2P×14AWG+1C×14AWG+2C×18AWG EV Charging Cable Bared Copper Stranded with TPE Insulation and TPE Jacket 600V

ITEM A:5C×14AWG(2P+1C) B:2C×18AWG
CONDUCTOR Material Bare Copper Stranded
Size 50/0.254±0.008mm 41/0.16±0.008mm
O.D.(Ref) 2.07mm 1.18mm
INSULATION Material TPE TPE
Min.average thickness 1.14mm 0.76mm
Min.thickness at any point 1.02mm 0.68mm
O.D. 4.50±0.20mm 2.80±0.15mm
TWISTED O.D.(Ref) 9.0mm /
CABLING Material Non-woven
Fillers Optional
Assembly 2P×14AWG+1C×14AWG+2C×18AWG
JACKET Material TPE(UV resistance)
Min.average thickness 2.41mm
Min.thickness at any point 1.93mm
O.D. 20.50±0.50mm

Product Description
Application:EV Charging

This Product is applicable for all kinds of electric vehicles,charging piles, power station, charging station.


Product character:
Tensile strength:≥8.3MPa

Elongation:≥200%
Aged condition:136±1℃×168h
Percent of original tensile strength:±75%
Percent of original elongation: ±75%
VW-1

Technical data
Rated voltage:600V
Rated Temperature: 105℃
Max.conductor DC resistance(20℃):A:8.88Ω/km B:22.4Ω/km
Dielectric Strength AC:2.0kV/min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant

FT2
