2C×0.75mm2+5C×16mm2 EV Charging Cable Bare Copper Stranded With TPE Insulation / TPE Jacket
2C×0.75mm2+5C×16mm2 EV Charging Cable Bare Copper Stranded With TPE Insulation / TPE Jacket
2C×0.75mm2+5C×16mm2 EV Charging Cable Bare Copper Stranded With TPE Insulation / TPE Jacket
2C×0.75mm2+5C×16mm2 EV Charging Cable Bare Copper Stranded With TPE Insulation / TPE Jacket
Specifications
Model Number :
CQC
Conductor :
Bare Copper Stranded
Price :
To be negotiated
Temperature :
-40~70℃
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
450/750V AC
SP :
1701286
Certification :
RoHS Reach
Insulation :
TPE
Supply Ability :
100km per day
Packing :
Packed in rolls or reels
Brand Name :
Shineplus
Name :
EV Charging Cable
Payment Terms :
T/T,L/C,Western Union
Application :
EV Charging
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Jacket :
TPE
Description

CQC 2C×0.75mm2+5C×16mm2 EV Charging Cable Bare Copper Stranded with TPE Insulation and TPE Jacket 450/750V AC

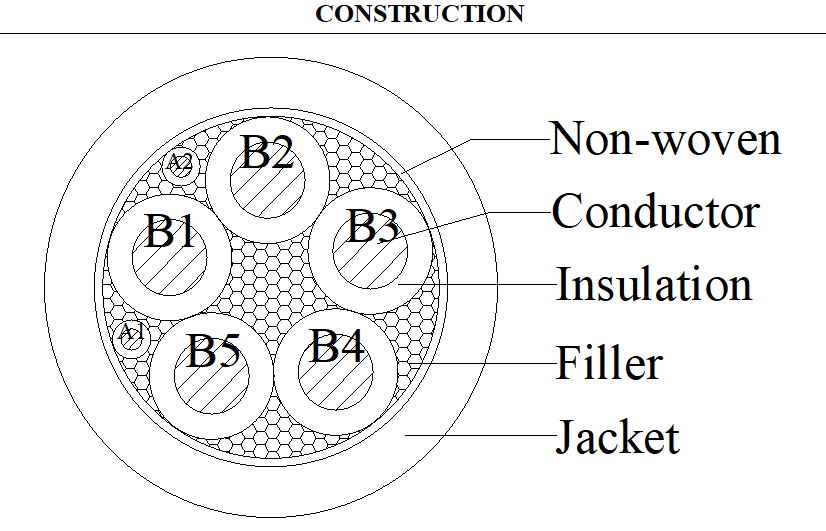

ITEM A : 2C×0.75mm2 B : 5Cx16mm2
CONDUCTOR Material Bare copper stranded+Tinsel+Kevlar Bare copper stranded
Size 40/0.15+10/0.19 Tinsel+200D Kevlar 513/0.20±0.008mm
O.D.(Ref) 1.30mm 5.90mm
INSULATION Material Thermoplastic Elastomer
Nom. thickness 0.50mm 1.00mm
Min.thickness at any point 0.35mm 0.80mm
O.D. 2.40±0.10mm 8.20±0.25mm
CABLING Filler PP rope
Material Non-woven
Assembly 2Cx0.75mm2+5Cx16mm2
JACKET Material TPE
Nom. thickness 3.00mm
Min.thickness at any point 2.45mm
O.D. 30.00±1.00mm

Product Description
Application:EV Charging

This Product is applicable for all kinds of electric vehicles,charging piles, power station, charging station.


Product character:
Tensile strength:≥10.0MPa

Elongation:≥250%
High temperature and pressure:(80±2℃×4h):≤50%
Percent of original tensile strength:±30%
Percent of original elongation: ±30%

Flame test:GB/T 18380.12

UV Resistance : 720h CQC1103-2015


Technical data
Rated voltage:450/750V AC
Rated Temperature:-40~70℃
Max.conductor DC resistance(20℃):A: 26.0Ω/km B: 1.21Ω/km
Voltage withstand test:A: AC 1.5kV/15min B: AC 3.5kV/15min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
