UL2725 3P 26AWG Flexible Industrial Cable Tinned Copper Stranded HDPE Insulation PVC Jacket 30V
UL2725 3P 26AWG Flexible Industrial Cable Tinned Copper Stranded HDPE Insulation PVC Jacket 30V
UL2725 3P 26AWG Flexible Industrial Cable Tinned Copper Stranded HDPE Insulation PVC Jacket 30V
UL2725 3P 26AWG Flexible Industrial Cable Tinned Copper Stranded HDPE Insulation PVC Jacket 30V
Specifications
Certification :
RoHS Reach
Jacket :
PVC
Model Number :
UL2725
Insulation :
HDPE
Price :
To be negotiated
Application :
Industrial,comsumer Electrics,etc
Supply Ability :
100km per day
SP :
1503552
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
80℃
Name :
Industrial Wire and Cable
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in Rolls or Reels
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Voltage :
30V
Description

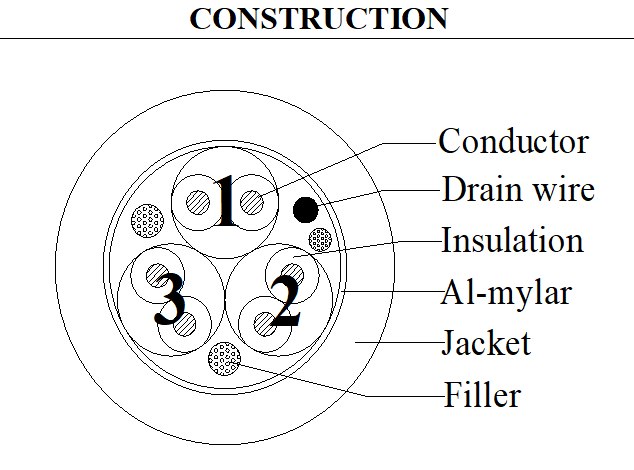

UL2725 3P×26AWG Flexible Industrial Cable Tinned Copper Stranded with HDPE Insulation and PVC Jacket 30V 80℃

ITEM 3P×26AWG(19/0.10T)
CONDUCTOR Material Tinned copper stranded
Size 19/0.10±0.008mm
O.D.(Ref) 0.50mm
INSULATION Material HDPE
Min.average thickness 0.13mm
Min.thickness at any point 0.08mm
O.D. 0.80±0.08mm
TWISTED O.D. 1.60mm
CABLING Filler Cotton
Draid wire Tinned copper stranded 19/0.10±0.008mm
Material Al-mylar(face in)
Assembly 3P×26AWG(19/0.10T)
JACKET Material PVC
Min.average thickness 0.35mm
Min.thickness at any point 0.28mm
O.D. 3.80±0.20mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):150Ω/km

Dielectric Strength AC:0.5kV/1min

Impedance : 90±15Ω

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Min. static bending radius: 5×OD
