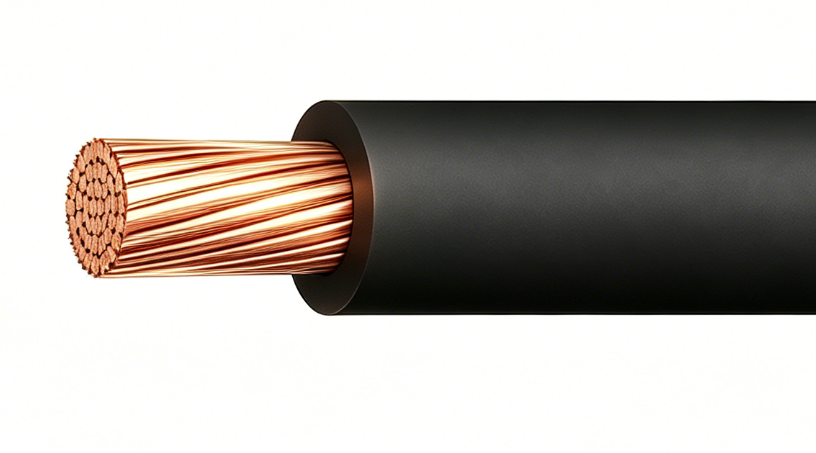

UL3132 14AWG Industrial Energy Storage Cable Bare Copper Stranded SR Insulation 300V
UL3132 14AWG Industrial Energy Storage Cable Bare Copper Stranded SR Insulation 300V
UL3132 14AWG Industrial Energy Storage Cable Bare Copper Stranded SR Insulation 300V
UL3132 14AWG Industrial Energy Storage Cable Bare Copper Stranded SR Insulation 300V
Specifications
Certification :
RoHS Reach
Jacket :
SR
Model Number :
UL3132
Insulation :
SR
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
150℃
Name :
Industrial Wire and Cable
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in Rolls or Reels
Price :
To be negotiated
Application :
Energy Storage System
Supply Ability :
100km per day
SP :
2305439
Brand Name :
Shineplus
Conductor :
Bare Copper Stranded
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Voltage :
300V
Description

UL3132 14AWG Energy Storage Silicone Cable Bare Copper Stranded with SR Insulation 300V 150℃

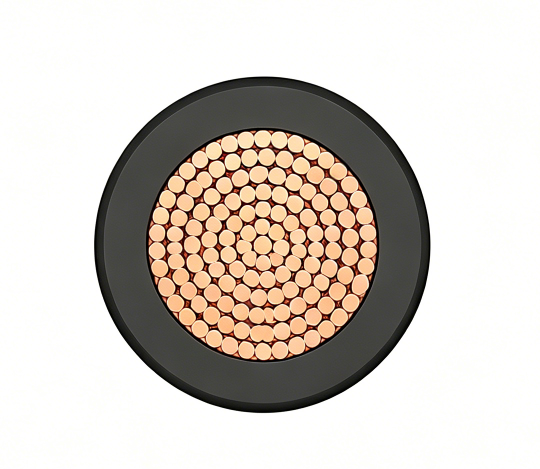

Construction
Conductor Bare Copper Stranded
Cross section 14AWG
Construction 41/0.254mm
Strand Dia. 1.88mm(Ref)
Insulation SR(halogen free)
Nom.Thickness 0.51mm
Min.Thickness 0.46mm
Insulation Dia. 3.60±0.20mm
Insulation colour Per request

Application:

This product applies to automotive power lines and eneergy storage equipment.

Electric Performance:

Rated Temperature:-40~150℃

Voltage rating:300V

Max.conductor DC resistance(20℃):8.62Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥3.45MPa

Elongation:≥100%

Aged condition:159±1℃×60D

Percent of original tensile strength:≥60%

Percent of original elongation:≥25%

Flame test:VW-1
