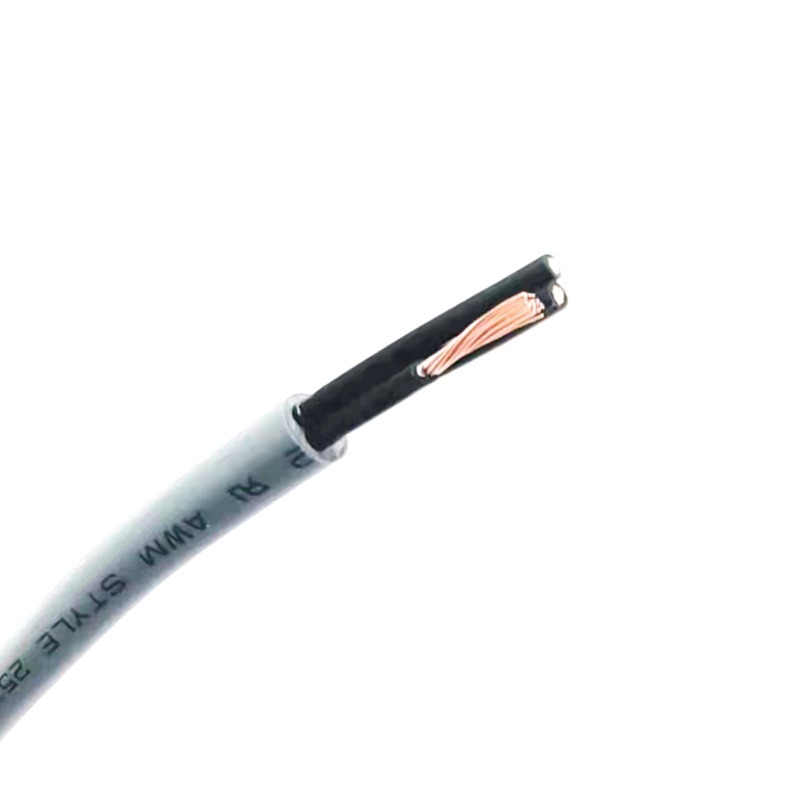

UL2570 3C 0.75mm2 Bare Copper Stranded Industrial Cable PVC Insulation PVC Jacket 600V
UL2570 3C 0.75mm2 Bare Copper Stranded Industrial Cable PVC Insulation PVC Jacket 600V
UL2570 3C 0.75mm2 Bare Copper Stranded Industrial Cable PVC Insulation PVC Jacket 600V
UL2570 3C 0.75mm2 Bare Copper Stranded Industrial Cable PVC Insulation PVC Jacket 600V
Specifications
Certification :
RoHS Reach
Jacket :
PVC
Model Number :
UL2570
Insulation :
PVC
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in Rolls or Reels
Price :
To be negotiated
Application :
Industrial,comsumer Electrics,etc
Supply Ability :
100km per day
SP :
1901247
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
80℃
Name :
Industrial Wire and Cable
Place of Origin :
China
Voltage :
600V
Brand Name :
Shineplus
Conductor :
Bare Copper Stranded
Packaging Details :
Packed in rolls or reels
Description

UL2570 3C×0.75mm2 Industrial Cable Bare Copper Stranded with PVC Insulation and PVC Jacket 600V 80℃

ITEM 3C×0.75mm2(24/0.20B)
CONDUCTOR Material Bare copper stranded
Size 24/0.20mm
O.D.(Ref) 1.13mm
INSULATION Material PVC
Min.average thickness 0.38mm
Min.thickness at any point 0.33mm
O.D. 1.90±0.15mm
CABLING Assembly 3C×0.75mm2(24/0.20B)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 5.80±0.20mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:80℃

Voltage rating:600V

Max.conductor DC resistance(20℃):27.4Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1 FT1
