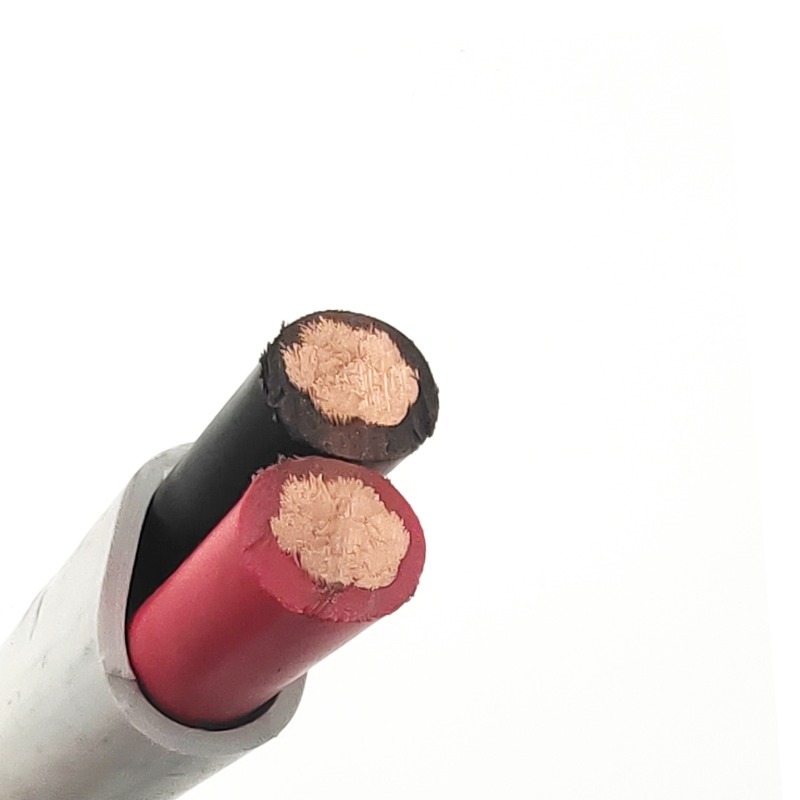

UL1032 Wire 2AWG Flat Flexible Industrial Cable Bare Copper Stranded PVC Insulation 1200V
UL1032 Wire 2AWG Flat Flexible Industrial Cable Bare Copper Stranded PVC Insulation 1200V
UL1032 Wire 2AWG Flat Flexible Industrial Cable Bare Copper Stranded PVC Insulation 1200V
UL1032 Wire 2AWG Flat Flexible Industrial Cable Bare Copper Stranded PVC Insulation 1200V
Specifications
Certification :
RoHS Reach
Jacket :
PVC
Model Number :
UL1032
Insulation :
PVC
Price :
To be negotiated
Application :
Lifting and port ect.
Supply Ability :
100km per day
SP :
1401767
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
105℃
Name :
Industrial Wire and Cable
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in Rolls or Reels
Place of Origin :
China
Voltage :
1000V
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Packaging Details :
Packed in rolls or reels
Description

UL1032 2AWG Flat Cable Bare Copper Stranded with PVC Insulation PVC Jacket 1200V 90℃

ITEM 2F×33.6mm2(2646/0.127B)+B
CONDUCTOR Material Bare copper stranded
Size 2646/0.127±0.008mm
O.D.(Ref) 9.50mm
INSULATION Material PVC(flexible-65±2A)
Min. average thickness 1.80mm
Min. thickness at any point 1.52mm
O.D. 13.50±0.35mm
BRAID Material Tinned copper
Coverage 0.15mm , 80% min.
JACKET Material PVC(flexible)
Min. average thickness 1.00mm
Min. thickness at any point 0.80mm
O.D.(H×W) (19.20±0.40mm)×(30.20±1.50mm)

Application:

This product is generally used in gravity aspects such as lifting and port.

Electric Performance:

Rated Temperature:90℃

Voltage rating:1200V

Max.conductor DC resistance(20℃):0.5335Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:121±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1
