UL20327 4C 26AWG Industrial Cable Tinned Copper Stranded TPE Insulation TPE Jacket 300V 105C
UL20327 4C 26AWG Industrial Cable Tinned Copper Stranded TPE Insulation TPE Jacket 300V 105C
UL20327 4C 26AWG Industrial Cable Tinned Copper Stranded TPE Insulation TPE Jacket 300V 105C
UL20327 4C 26AWG Industrial Cable Tinned Copper Stranded TPE Insulation TPE Jacket 300V 105C
Specifications
Certification :
RoHS Reach
Jacket :
TPE
Model Number :
UL20327
Insulation :
TPE
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in Rolls or Reels
Price :
To be negotiated
Application :
Industrial,comsumer Electrics,etc
Supply Ability :
100km per day
SP :
1702429
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
-40~105℃
Name :
Industrial Wire and Cable
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Voltage :
300V
Description

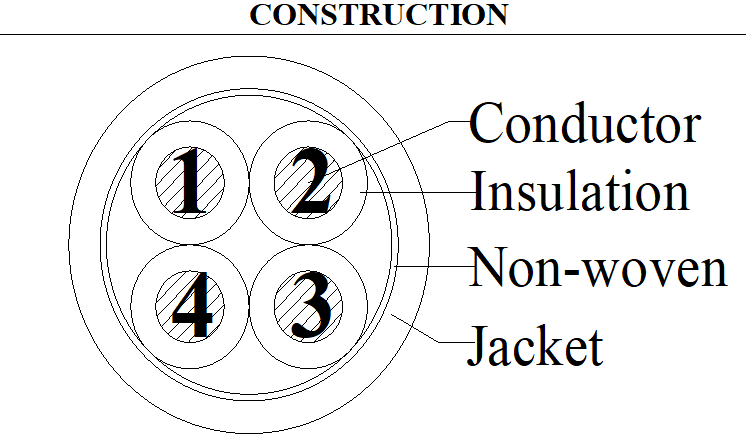

UL20327 4C×26AWG Industrial Cable Tinned Copper Stranded with TPE Insulation and TPE Jacket 300V 105℃

ITEM 4C×26AWG(7/0.16T)
CONDUCTOR Material Tinned copper stranded
Size 7/0.16±0.008mm
O.D.(Ref) 0.48mm
INSULATION Material TPE(Halogen free)
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.00±0.05mm
CABLING Material Non-woven
Assembly 4C×26AWG(7/0.16T)
JACKET Material TPE(Halogen free)
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 4.20±0.20mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:-40~105℃

Voltage rating:300V

Max.conductor DC resistance(20℃):150Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥8.27MPa

Elongation:≥200%

Aged condition:136±1℃×168h

Percent of original tensile strength:≥75%

Percent of original elongation:≥75%

Flame test:VW-1

UL20327 4C 26AWG Industrial Cable Tinned Copper Stranded TPE Insulation TPE Jacket 300V 105C
