UL20327 3C 16AWG Tinned Copper Stranded Industrial Flexible Cable XLPE Insulation TPE Jacket 300V
UL20327 3C 16AWG Tinned Copper Stranded Industrial Flexible Cable XLPE Insulation TPE Jacket 300V
UL20327 3C 16AWG Tinned Copper Stranded Industrial Flexible Cable XLPE Insulation TPE Jacket 300V
UL20327 3C 16AWG Tinned Copper Stranded Industrial Flexible Cable XLPE Insulation TPE Jacket 300V
Specifications
Certification :
RoHS Reach
Jacket :
TPE
Name :
Industrial Wire and Cable
Model Number :
UL20327
Insulation :
XLPE
Supply Ability :
100km per day
SP :
2005256
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
105℃
Payment Terms :
T/T,L/C,Western Union
Application :
Industrial,comsumer Electrics,etc
Price :
To be negotiated
Packing :
Packed in rolls or reels
Place of Origin :
China
Voltage :
300V
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Packaging Details :
Packed in rolls or reels
Description

UL20327 3Cx16AWG Tinned Copper Stranded Industrial Flexible Cable with XLPE Insulation TPE Jacket

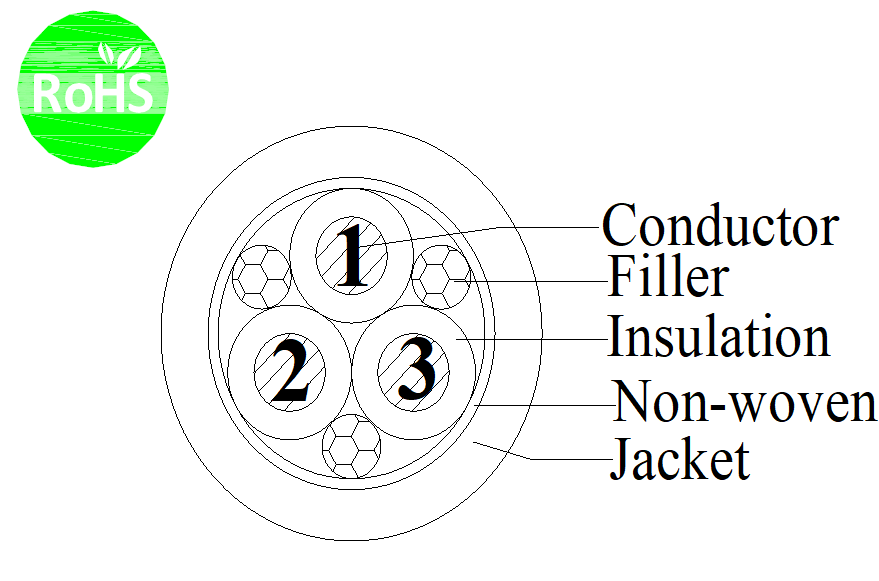

Construction
Conductor Tinned Copper Stranded
Cross section 16AWG
Construction 105/0.127mm
Strand Dia.(Ref.) 1.50mm
Insulation XL-PE
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Insulation Dia. 2.40±0.10mm
Insulation colour 1.black 2.red 3.yellow
Filler Optional
Material Non-woven,≥25%
Twist 3C×16AWG+W
Jacket TPE(UV resistance)
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 7.20±0.30mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥8.27MPa

Elongation:≥200%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥75%

Percent of original elongation: ≥75%

Technical data
Rated voltage:300V
Rated Temperature: 105℃
Max.conductor DC resistance(20℃):14.7Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL20327
RoHS

VW-1

FT1
