15C 24AWG UL2468 Tinned Copper Stranded Industrial Flexible Cable SR-PVC Insulation PVC Jacket 300V
15C 24AWG UL2468 Tinned Copper Stranded Industrial Flexible Cable SR-PVC Insulation PVC Jacket 300V
15C 24AWG UL2468 Tinned Copper Stranded Industrial Flexible Cable SR-PVC Insulation PVC Jacket 300V
15C 24AWG UL2468 Tinned Copper Stranded Industrial Flexible Cable SR-PVC Insulation PVC Jacket 300V
Specifications
Packing :
Packed in rolls or reels
Supply Ability :
100km per day
Name :
Industrial Wire and Cable
Jacket :
PVC
Certification :
RoHS Reach
Payment Terms :
T/T,L/C,Western Union
Temperature :
80℃
Brand Name :
Shineplus
Model Number :
UL2468
Insulation :
SR-PVC
Packaging Details :
Packed in rolls or reels
Voltage :
300V
Price :
To be negotiated
SP :
2601484
MOQ :
1000m
Conductor :
Tinned Copper Stranded
Application :
Industrial,comsumer Electrics,etc
Place of Origin :
China
Delivery Time :
3-4 Weeks
Description

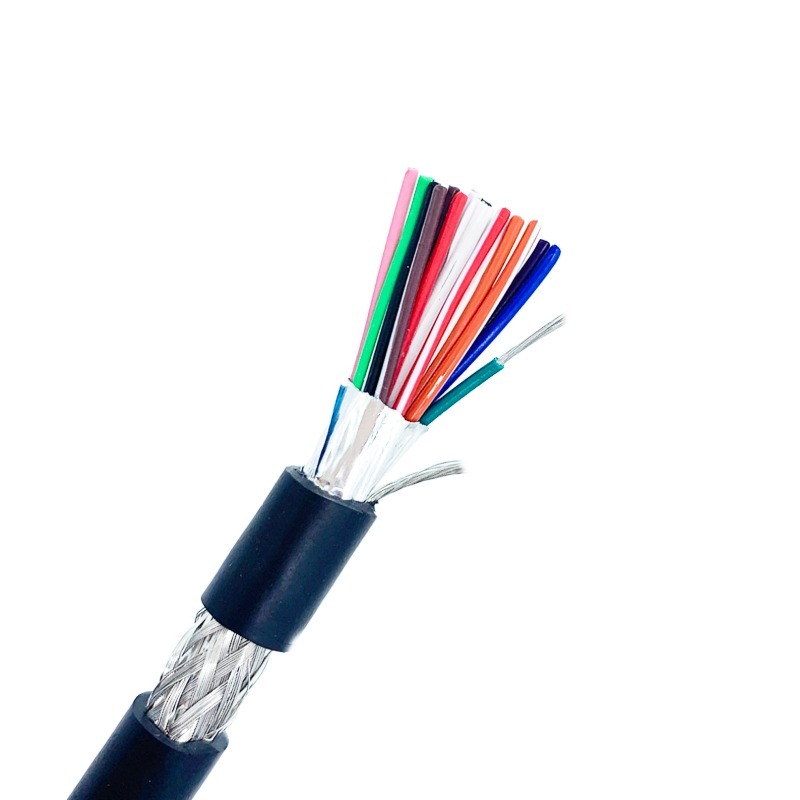

UL2468 15C×24AWG+ADB Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket

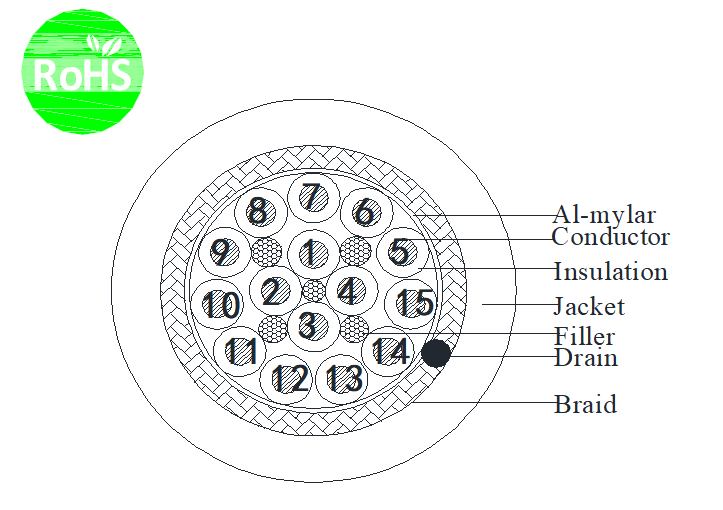

Construction
Conductor Tinned copper stranded
Cross section 24AWG
Construction 7/0.20mm
Strand Dia. 0.60mm
Insulation SR-PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 1.10±0.10mm
Insulation colour 1.black 2.brown 3.red 4.orange 5.yellow 6.green 7.blue 8.violet 9.gray 10.white 11.pink 12.light green 13.black/white 14.brown/white 15.red/white
Material Al-Mylar(Face out),≥25%
Filler Optional
Drain Tinned copper stranded 7/0.20mm
Assembly 15C×24AWG+AD pitch 75mm S
Braid Tinned copper,16/10/0.127mm,≥85%
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
O.D. 7.40±0.30mm
Colour black


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):94.2Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2468
RoHS

VW-1
