5C 16AWG UL20549 Flexible Industrial Cable Tinned Copper Stranded SR-PVC Insulation PUR Jacket 300V
5C 16AWG UL20549 Flexible Industrial Cable Tinned Copper Stranded SR-PVC Insulation PUR Jacket 300V
5C 16AWG UL20549 Flexible Industrial Cable Tinned Copper Stranded SR-PVC Insulation PUR Jacket 300V
5C 16AWG UL20549 Flexible Industrial Cable Tinned Copper Stranded SR-PVC Insulation PUR Jacket 300V
Specifications
Supply Ability :
100km per day
Conductor :
Tinned Copper Stranded
Certification :
RoHS Reach
Model Number :
UL20549
Packing :
Packed in Rolls or Reels
MOQ :
1000m
Delivery Time :
3-4 Weeks
Application :
Industrial,comsumer Electrics,etc
Payment Terms :
T/T,L/C,Western Union
Insulation :
PUR
Temperature :
80℃
Name :
Industrial Wire and Cable
Price :
To be negotiated
Jacket :
PVC
Voltage :
300V
Place of Origin :
China
Brand Name :
Shineplus
SP :
1603283
Packaging Details :
Packed in rolls or reels
Description

UL20549 5C×16AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PUR Jacket 300V 80℃

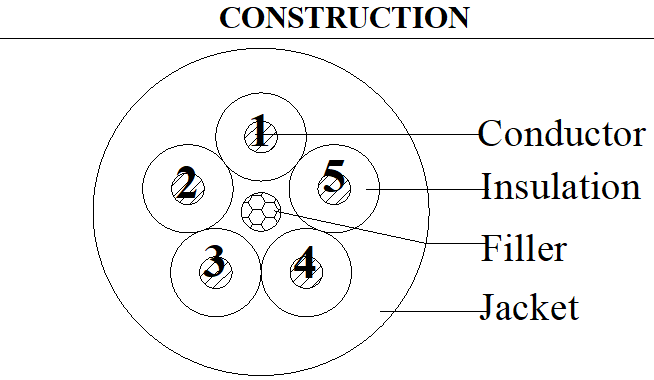

ITEM 5C×16AWG(105/0.127T)
CONDUCTOR Material Tinned copper stranded
Size 105/0.127±0.008mm
O.D.(Ref) 1.55mm
INSULATION Material PVC
Min.average thickness 0.38mm
Min.thickness at any point 0.33mm
O.D. 2.40±0.10mm
CABLING Filler Cotton
Assembly 5C×16AWG(105/0.127T)
JACKET Material PUR
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 8.40±0.25mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.


Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃): 14.6Ω/km

Dielectric Strength AC:2.0kV/1min


Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Bending test: R=50mm ≥1 million
