6C 20AWG UL2464 Tinned Copper Stranded Industrial Flexible Cable PVC Insulation PVC Jacket 300V
6C 20AWG UL2464 Tinned Copper Stranded Industrial Flexible Cable PVC Insulation PVC Jacket 300V
6C 20AWG UL2464 Tinned Copper Stranded Industrial Flexible Cable PVC Insulation PVC Jacket 300V
6C 20AWG UL2464 Tinned Copper Stranded Industrial Flexible Cable PVC Insulation PVC Jacket 300V
Specifications
Jacket :
PVC
Model Number :
UL2464
Application :
Industrial,comsumer Electrics,etc
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
80℃
Payment Terms :
T/T,L/C,Western Union
Conductor :
Tinned Copper Stranded
Voltage :
300V
Price :
To be negotiated
Insulation :
PVC
Supply Ability :
100km per day
Name :
Electric Industrial Cable
SP :
2604178
Brand Name :
Shineplus
Packing :
Packed in Rolls or Reels
Certification :
RoHS Reach
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Description

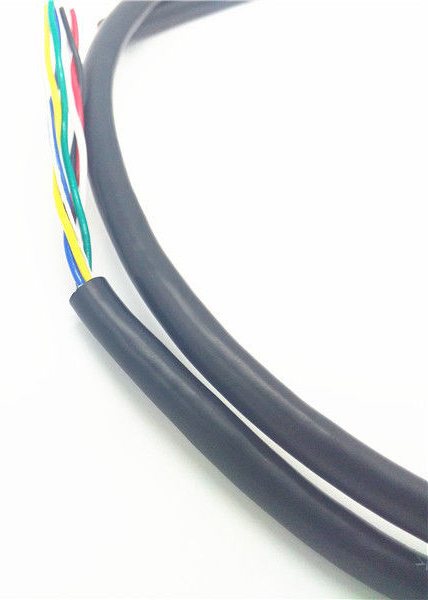

6C 20AWG UL2464 Tinned Copper Stranded Industrial Flexible Cable PVC Insulation PVC Jacket 300V

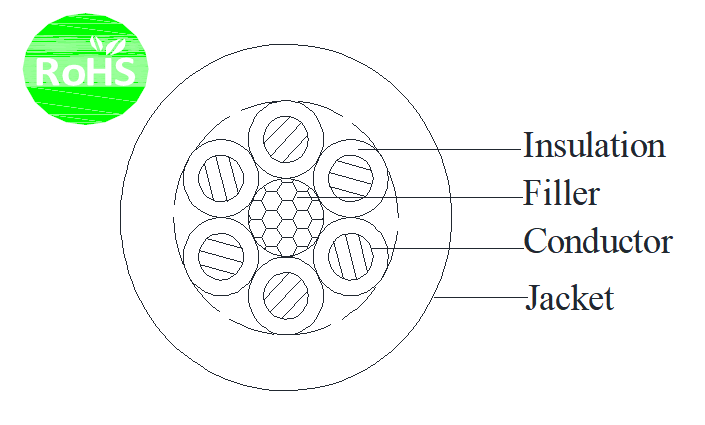

Construction
Conductor Tinned copper stranded
Cross section 20AWG
Construction 26/0.16mm
Strand Dia. 0.94mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 1.50±0.10mm
Insulation colour 1.white 2.brown 3.green 4.yellow 5.grey 6.pink
Filler Optional
Assembly 6C×20AWG
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
O.D. 6.20±0.30mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.


Electric Performance:

Rated Temperature:-40-80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):36.7Ω/km

Dielectric Strength AC:2.0kV/1min


Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥45%

Flame test:VW-1



6C 20AWG UL2464 Tinned Copper Stranded Industrial Flexible Cable PVC Insulation PVC Jacket 300V
