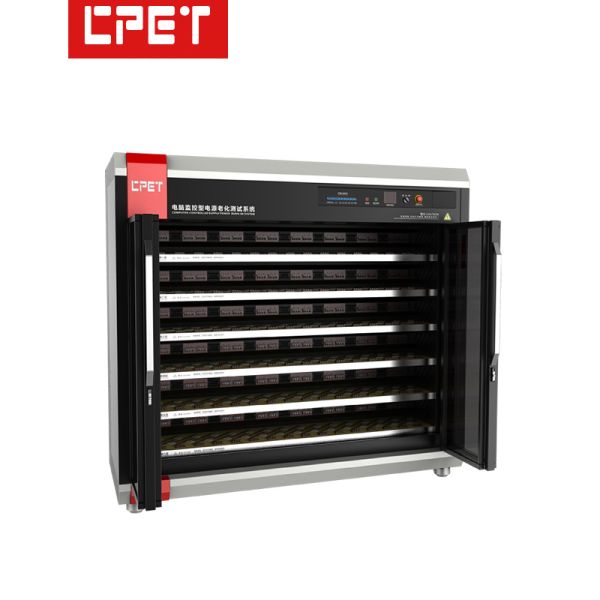

Electronic Load Type Burn In Chamber with 6 Layers Product Zone and 12 Months Guarantee for LED Driver Power Supply
Electronic Load Type Burn In Chamber with 6 Layers Product Zone and 12 Months Guarantee for LED Driver Power Supply
Electronic Load Type Burn In Chamber with 6 Layers Product Zone and 12 Months Guarantee for LED Driver Power Supply
Electronic Load Type Burn In Chamber with 6 Layers Product Zone and 12 Months Guarantee for LED Driver Power Supply
Electronic Load Type Burn In Chamber with 6 Layers Product Zone and 12 Months Guarantee for LED Driver Power Supply
Electronic Load Type Burn In Chamber with 6 Layers Product Zone and 12 Months Guarantee for LED Driver Power Supply
Specifications
Brand Name :
CPET
Model Number :
CP-3003003
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1
Price :
¥49800 yuan
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
30 work days
Packaging Details :
wooden box package
Purpose :
Led PowerBurn In Cabinet
guarantee period :
12 months
Load Model :
Electronic load type
External dimension :
2050*1200*1900mm
Description
LED Driver Power Supply Burn-In Test System
Electronic Load Type Burn In Chamber with 6 Layers Product Zone and 12 Months Guarantee for LED Driver Power Supply

Our burn-in test system is designed specifically for LED driver power supplies and power conversion systems, providing comprehensive reliability testing to ensure product quality and performance.

Key Benefits
  • Early Failure Detection: Eliminate early-failed products through accelerated aging tests that apply thermal and electrical stresses to expose potential defects including false soldering, component parameter drift, and insulation flaws
  • Performance Stabilization: After the initial "running-in" of components, product performance stabilizes, ensuring long-term operational reliability
  • Design Verification: Test continuous operating capability of LED driver power supplies under rated load and extreme conditions to verify design margins
Technical Specifications
Electronic Load Type Burn In Chamber with 6 Layers Product Zone and 12 Months Guarantee for LED Driver Power Supply
Parameter CP-3003 CP-3004
Power per Channel 400W/CH 100W/CH
Load Channels Quantity 240CH 192CH
Load Voltage Range 2-450V 2-450V
Load Current Range 0.05-10A/CH 0.05-5A/CH
Load Precision ±(1%+0.1%FS) ±(1%+0.1%FS)
Load Model Electronic load type Electronic load type
Load Mode CC+CV Mode CC+CV Mode
Product Zone Layers 6
Product Zone Layer Height 170mm
Product Zone Width Series CC mode 380mm
Temperature Control Range Normal temperature to 60℃
Trolley Structure Material Cold-rolled sheet (elaborately processed)
Control System Computer-monitoring type power burn-in software
UUT Input Mode Multi-purpose socket/speaker wire clip/custom design
UUT Interface Mode Connecting fixture boards (various specifications) preferred/custom design
External Dimensions 2050*1200*1900mm (custom design available)
