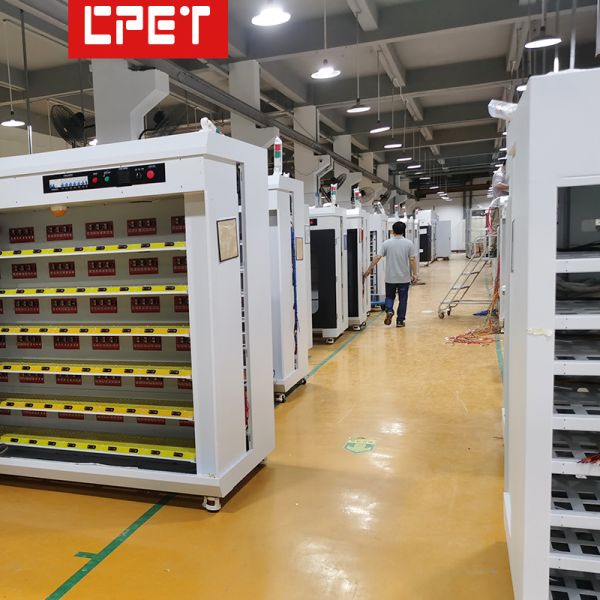

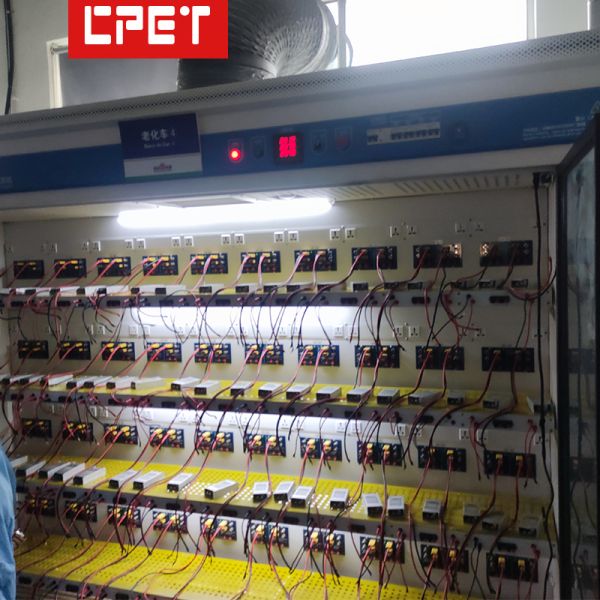

400W/CH 96CH DC Electronic Load Energy-Saving Aging Chamber 3-60V for Adapter LED Driver Burn-In Reliability Testing
400W/CH 96CH DC Electronic Load Energy-Saving Aging Chamber 3-60V for Adapter LED Driver Burn-In Reliability Testing
400W/CH 96CH DC Electronic Load Energy-Saving Aging Chamber 3-60V for Adapter LED Driver Burn-In Reliability Testing
400W/CH 96CH DC Electronic Load Energy-Saving Aging Chamber 3-60V for Adapter LED Driver Burn-In Reliability Testing
Specifications
Quantity of load channels :
96CH
Model Number :
CP-3033
Price :
7900dollars/set
Power of single channel :
400W/CH
Certification :
CE,ROHS
Load Mode :
CC+CV+CR Mode
External dimension (L*W*H) :
2050*1000*1900/custom design
Packaging Details :
Wooden case packing
Scope of load voltage :
3-60V
Brand Name :
CPET
Delivery Time :
30 work days
Scope of load current :
0.5-40A/CH
Place of Origin :
China
MOQ :
2sets
Payment Terms :
D/A
Supply Ability :
30sets/month
Description
96CH High-Density Energy-Saving Burn-In Chamber for Adapter & LED Driver Aging Test
Application Scope

Specifically engineered for high-volume burn-in testing of AC/DC adapters, LED drivers, switching power adapters, USB chargers, small desktop power supplies, and compact industrial power modules. The ultra-high 96-channel configuration maximizes throughput for mass production quality assurance lines.

Key Advantages
  • Industry-leading 96 independent load channels enable parallel testing of up to 96 units simultaneously, dramatically reducing QA cycle time.
  • Energy-saving load module with >85% regeneration efficiency reduces factory electricity costs and thermal management requirements.
  • CC, CV, and CR load modes with real-time voltage, current, and power monitoring per channel via PC software.
  • Built-in overtemperature protection and smoke alarm for 24/7 unattended operation safety.
  • Editable switch timing and load profile conversion for automated test sequencing.
  • Flexible DC adapter board interfaces accommodate various output connector types without custom tooling.
  • 6-layer laminate product zone structure with 170mm layer height and 340mm width per layer.
  • Temperature-controlled product zone maintains stable ambient conditions (ambient to 60°C).
  • Optional AC parameter measurement module for comprehensive power input characterization.
  • Optional automatic voltage switching and product zone temperature monitoring modules.
Performance Parameters
ParameterSpecification
Power of single channel400W/CH
Quantity of load channels96CH
Scope of load voltage3-60V DC
Scope of load current0.5-40A/CH
Load precision±(2%+0.5%FS)
Load module typeEnergy-saving load module
Load modeCC+CV+CR Mode
Number of product zone layers6
Layer height (mm)170
Layer width (mm)340
Temperature controlAmbient to 60°C
Structure materialCold-rolled sheet, precision fabricated
Main control modePC-based burn-in monitoring software
UUT input interfaceMulti-purpose socket/speaker wire clip/custom
UUT output interfaceFixture boards (various specs)/custom design
External dimension2050*1000*1900mm / custom design
