6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity
6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity
6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity
6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity
6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity
6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity
6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity
6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity
Specifications
Brand Name :
CPET
Model Number :
CP-3023005
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1
Price :
¥ 46500 yuan
Payment Terms :
T/T
Supply Ability :
30stes /month
Delivery Time :
40 work days
Packaging Details :
Packed in wooden cases
Guarantee period :
1 year
Input voltage： :
AC380V±15%（V）
Material :
Cold-rolled steel plate
Color :
black and red
Number of car levels :
6
Trolley height :
270（mm）
Description

Energy-saving Feedback Type High-power Industrial Laser Power Supply Aging Test Equipment

6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity

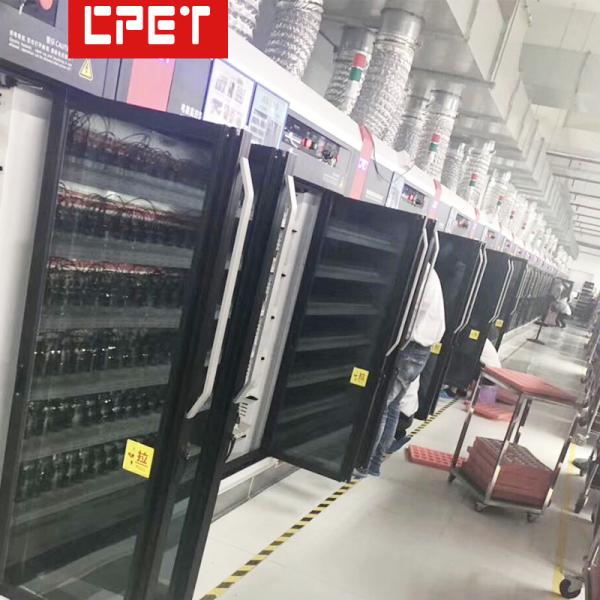

The vertical aging position design for the 6-layer product is adopted

Each layer is designed to be 32-bit

A single aging cabinet can age 192pcs of products


service

6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity

Free upgrade service

MES management system integration

APP application development

Barcode management system integration

Internet data sharing

The software supports both Chinese and English systems


Technical parameters

6-Layer Industrial Laser Power Supply Burn In Chamber 192pcs Capacity

Serial number Project Name Basic parameters
1 Trolley size: L1000*W1000*H1900(mm)
2 Input voltage: AC380V±15%(V)
3 Frequency: 50Hz
4 Input power(kW): 300W*192 bits /0.80=72KW (calculated based on the maximum power of 300W per single station, and the efficiency of the tested power supply is calculated at 80%)
5 Material/main color of the trolley: Cold-rolled steel plate, black and red
6 Transformer(kVA): 450 (Three-stage voltage: 110V/220V/260V; The electrical control cabinet can simultaneously control five aging cabinets. Among them, three groups are reserved interfaces


Serial number Project Name Basic parameters
1 Trolley size: L2050*W880*H1900(mm)
2 Number of car levels: 6
3 Trolley height: 270(mm)
4 Single-channel parameter: Power ≤300W, voltage range: 3-420Vdc, current range: 0.5-15Adc
5 Number of channels(CH): 192 (A single aging cabinet can age 300W single-channel output products at 192 bits, and two channels in parallel can age 600W single-channel output products at 96 bits)
6 Interface: Input: Configure audio clips and universal card sockets (specific design can be customized according to customer product requirements) Output: Configure high-current clips and reserve lock wire terminal interfaces as backups (specific design can be customized according to customer product requirements)
7 Communication method: RS485
8 Material/main color of the trolley: Cold-rolled steel plate, black and red
9 Heat dissipation method for the load area: Top turbine exhaust fan with upper exhaust type (convenient for ambient temperature control)

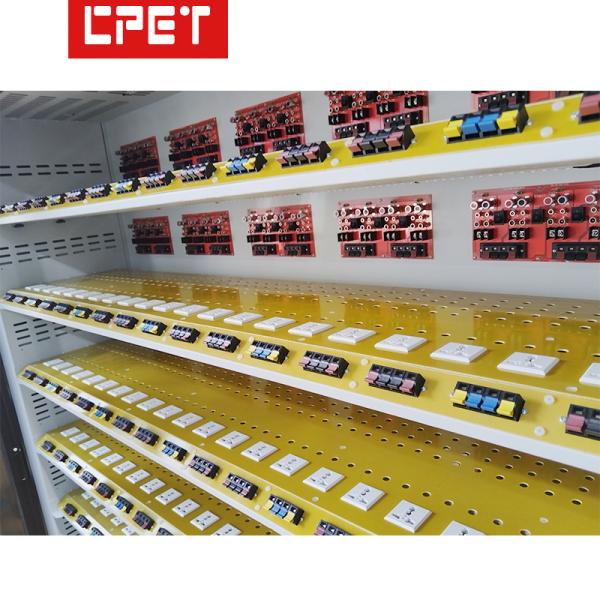

10 Interlayer insulation and anti-static methods: Epoxy insulating board with heat dissipation holes on the surface
11 The structural form of the trolley: The test area is isolated from the load area
12 Product area structural design: Closed design, ambient temperature +10℃-55℃±5℃
13 The structural types of trolleys: The fourth and fifth floors of the product placement area are of a flip structure. The ground floor has a large working space and is convenient for loading and unloading products


Number Function Introduction
A It is applicable to the aging of power supplies such as adapters, industrial power supplies, switching power supplies, and LED driver power supplies
B Free configuration of self-developed power supply aging dedicated monitoring software, with independent intellectual property rights and no legal risks
C The output terminal voltage, current and power parameters are monitored by using programmable electronic load modules
D The aging-specific monitoring software enjoys a free upgrade service and has powerful scalability, saving repeated investment in equipment
E Aging parameters, time setting, ON/OFF timing editing (for the on-off test of the product under test), support for automatic voltage switching, load transformation and other functions are programmable
F The function of automatically and regularly turning off the power supply when the aging of the tested power supply ends is convenient for unattended operation
G The computer automatically displays the quality of the tested power supply products. The window shows multiple vehicles for centralized management, saving operators and improving production efficiency
H The computer can store the aging data report of the tested power supply, and the process parameters of the tested power supply are easy to trace. In addition, it features barcode scanning and supports MES system upload
I The RS232 to RS485 conversion adopts a photoelectric isolation converter, which enhances communication reliability and prevents equipment damage from lightning strikes
